Focusing, collimation, and beam expansion of high-energy X-rays with diamond refractive lenses

Shastri, S.D.; Antipov, S.

doi:10.1107/S1600577526006995

Figure 10

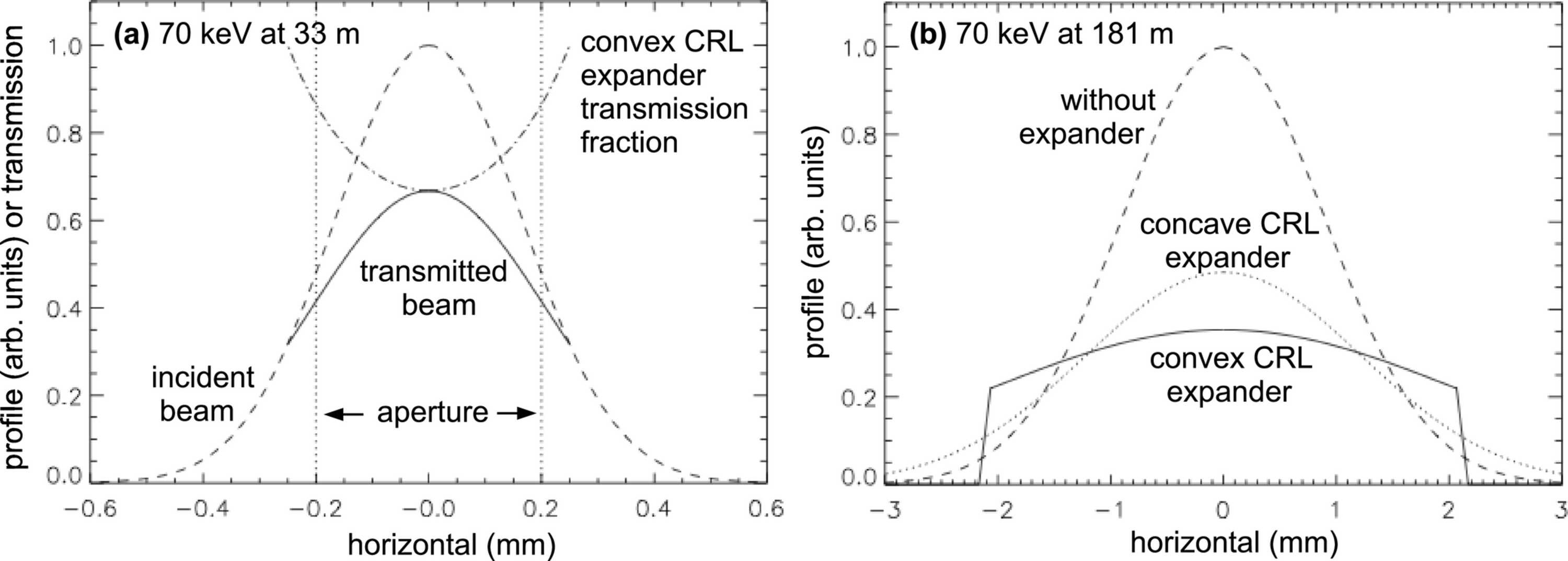

For the proposed expander at the long beamline HEXM, plots of (a) the calculated undulator beam horizontal profile, convex expander transmission fraction and transmitted profile at 33 m and (b) the non-expanded, convex-expanded and concave-expanded profiles at 181 m.
