Figure 4

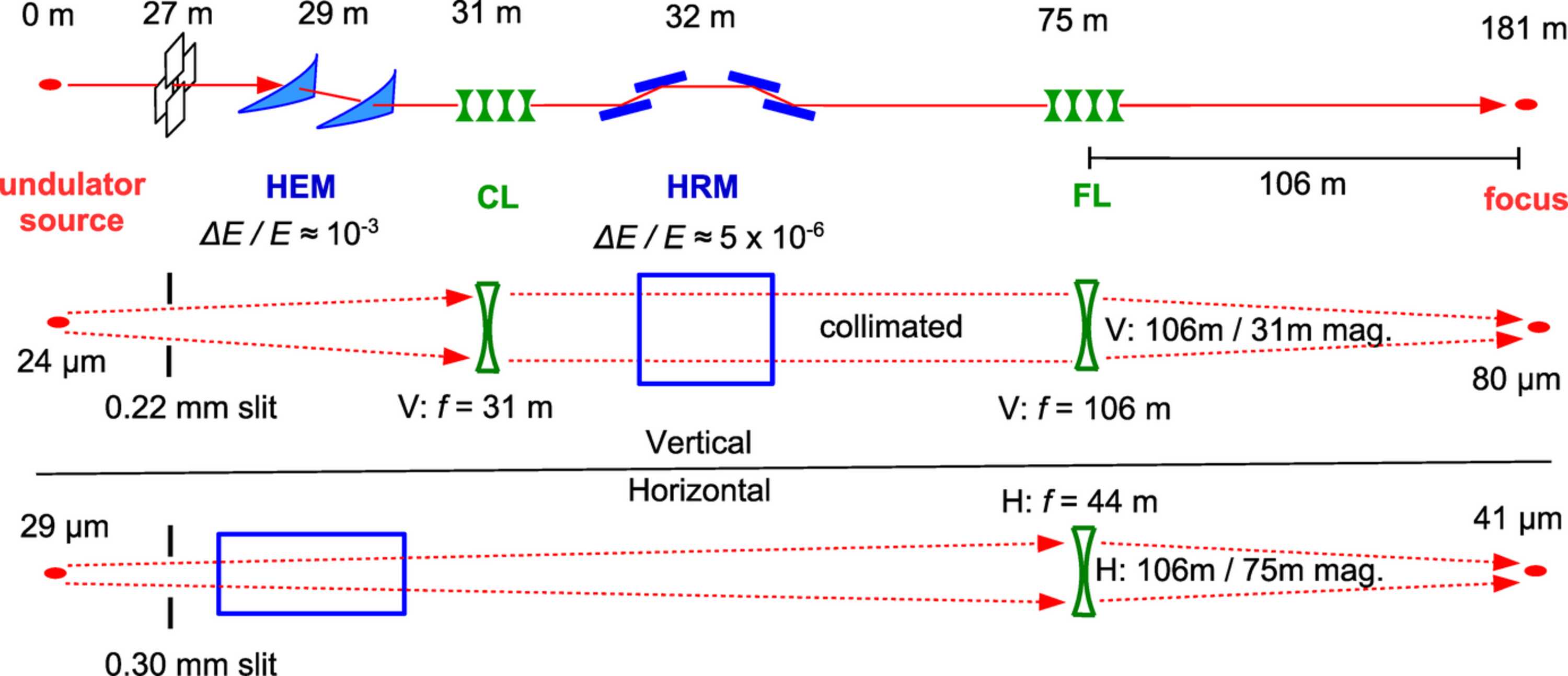

Optics scheme for BCDI at HEXM. Slits, monochromators (HEM, HRM), and CRLs (CL, FL) are shown. Source size, expected focus size (FWHM), distances, focal lengths f, and magnification ratios are given. The middle (and lower) panels separately represent component actions in the vertical (V) [and horizontal (H)] planes.
