Figure 5

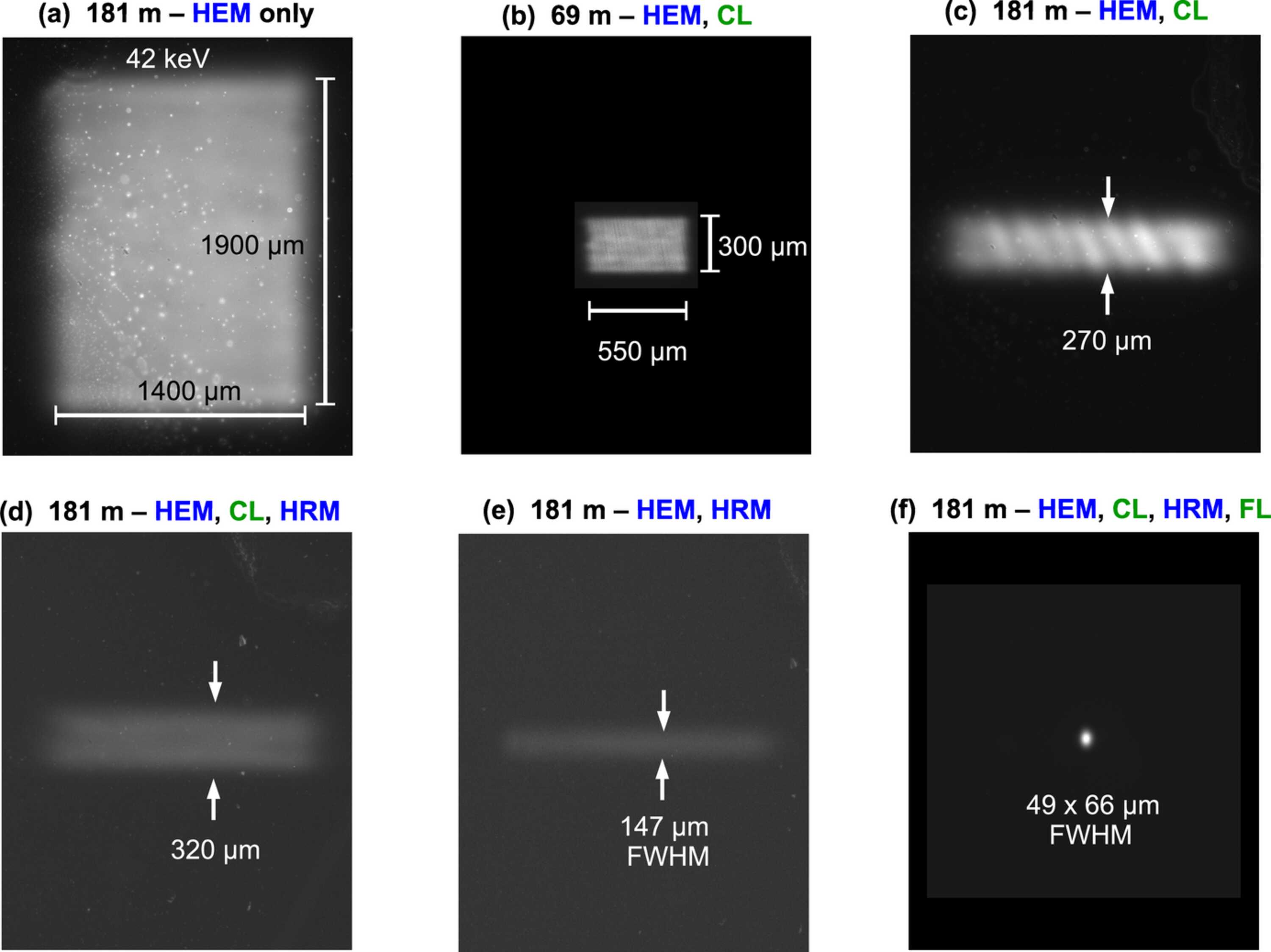

Beam images recorded at 181 m and 69 m [(b) only] in the Fig. 4[link] set-up, for various component combinations (of CL, HRM, and FL) inserted into or retracted from the beam. All have been scaled to the same field-of-view for spatial size comparison. The (f) focused beam whose profiles and zoomed-in image are in Fig. 7[link].
