Focusing, collimation, and beam expansion of high-energy X-rays with diamond refractive lenses

Shastri, S.D.; Antipov, S.

doi:10.1107/S1600577526006995

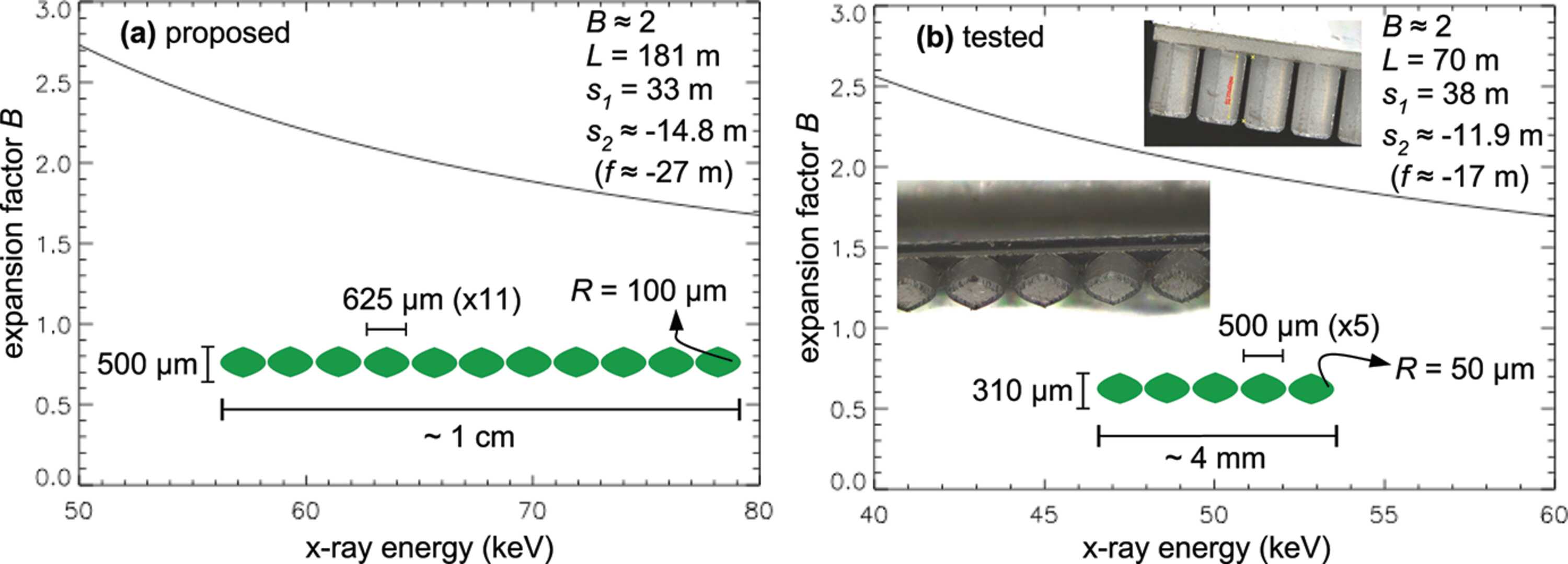

Figure 9
Plot of the expansion factor B versus energy for the (a) proposed convex CRL expander for the HEXM beamline and (b) the one tested at beamline 1-ID. The design parameters of the expanders are also given, with microscope images of the tested optic.
