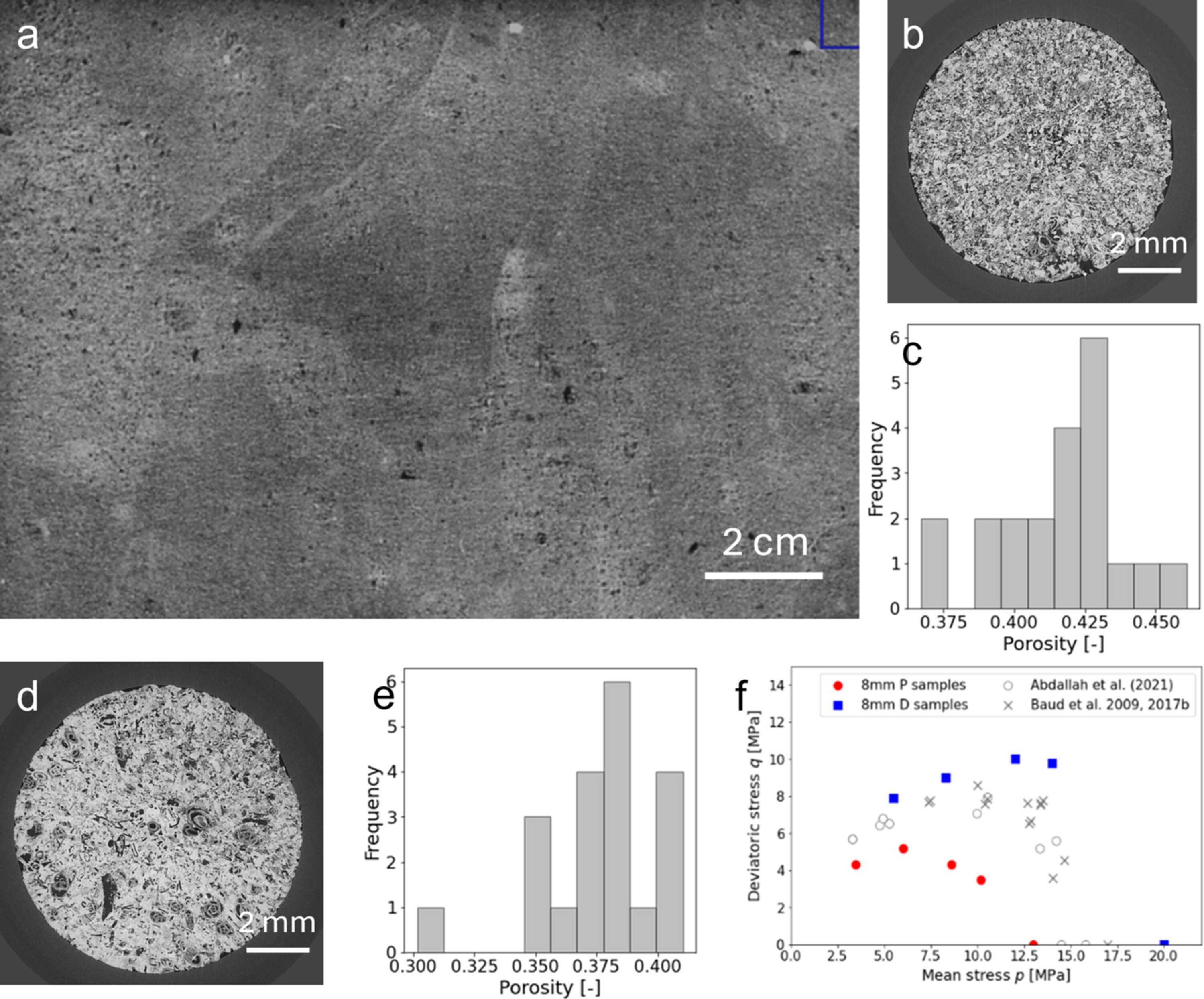

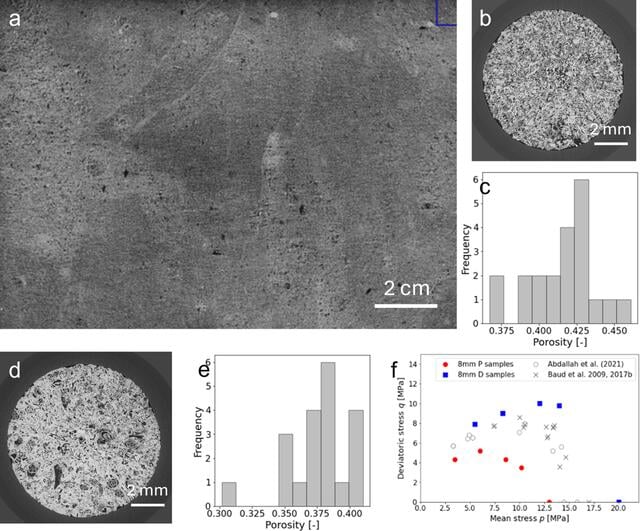

Figure 1
(a) X-ray computed tomography image of a 16 cm × 30 cm parallelepipedal SML block used to core 8 mm samples. The image was acquired at 16 µm. (b, d) Vertical cross sections of an 8 mm-diameter porous sample and a dense sample, with a 2.83 µm voxel size. (c, e) Initial global porosity distribution of porous and dense samples. (f) Critical yield points of the 8 mm samples (blue squares for dense ones and plain red circles for the porous samples). The results are compared with 40 mm-diameter samples (grey circles and crosses).
