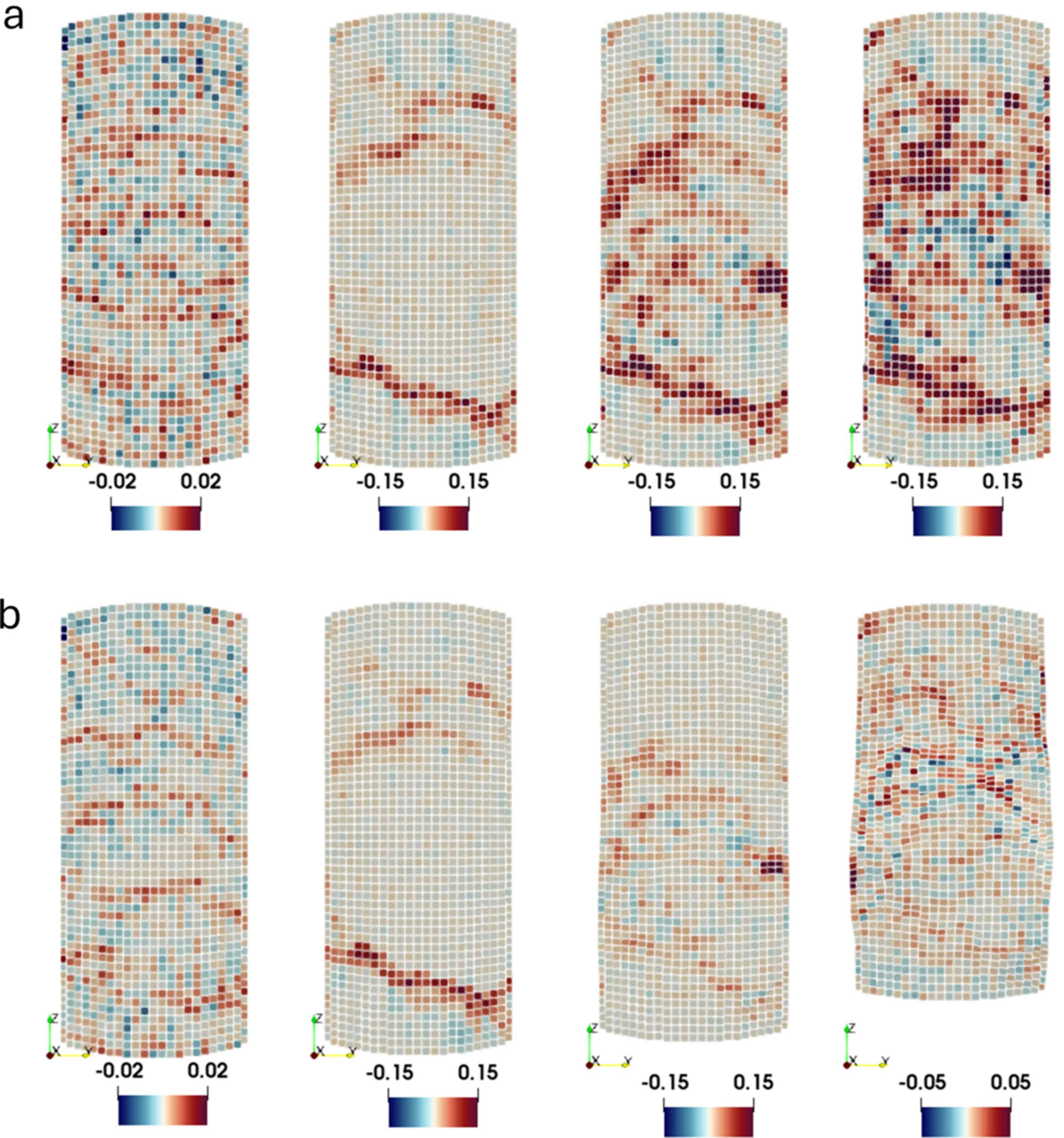

Figure 10
Successive total (upper row) and incremental (lower row) local volumetric strain maps, computed at 100 voxels gauge length, for a dense 8 mm sample tested at 6 MPa. Each column shows the same loading step. Blue represents dilation and red contraction.
