Figure 13

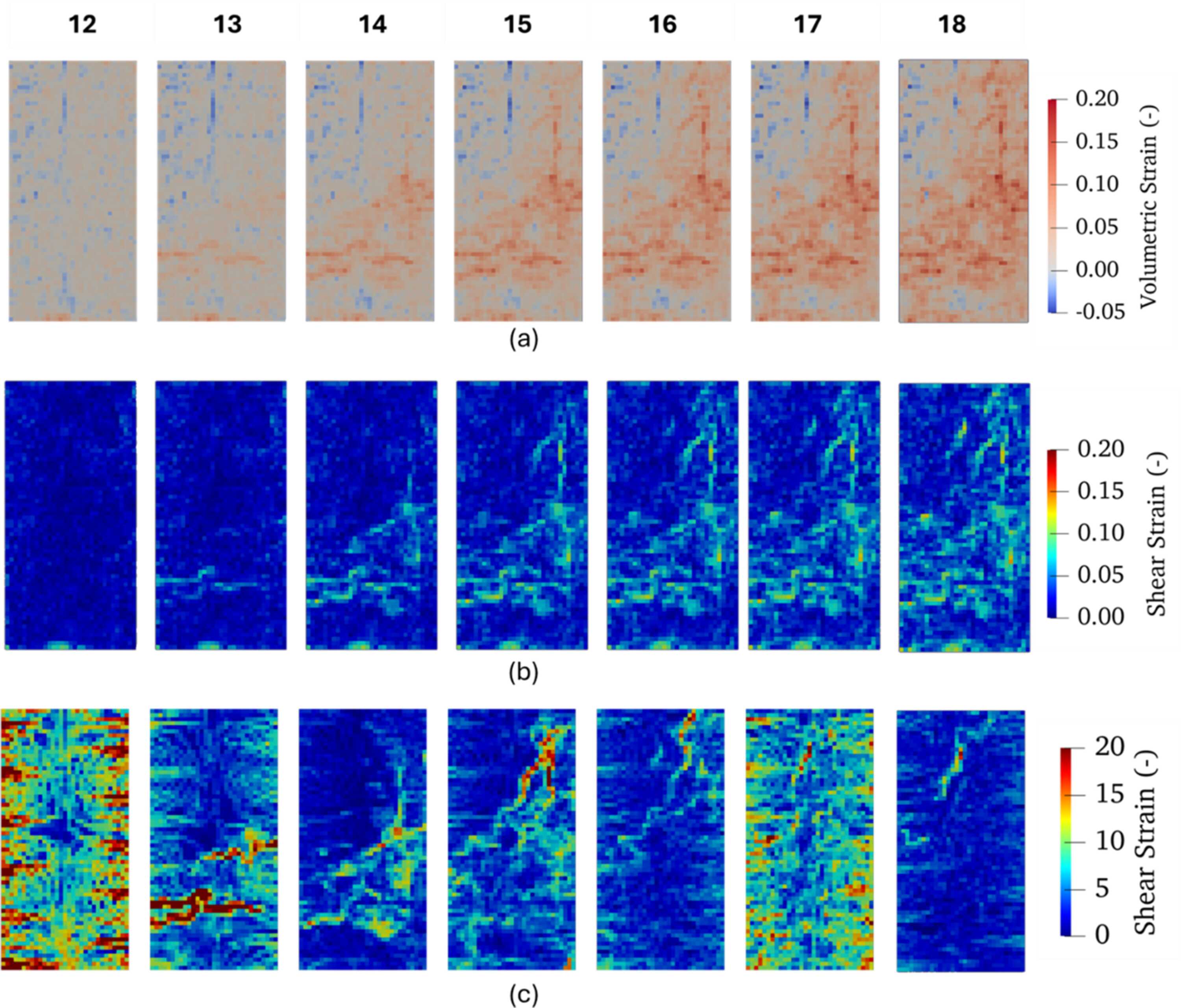

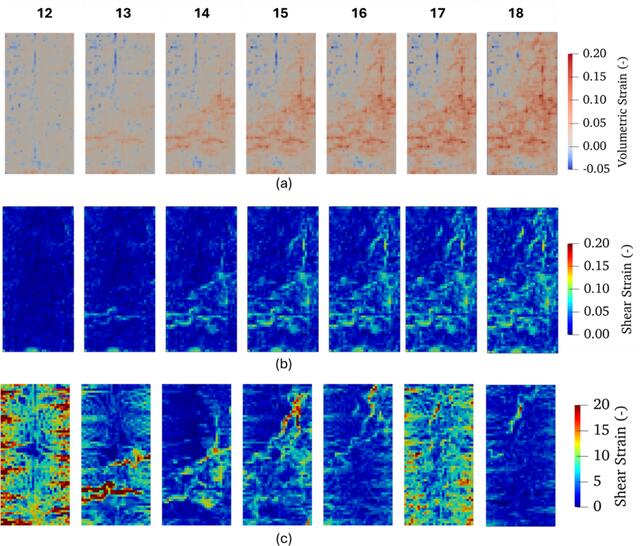

Local strain maps for the porous sample 38a during the hydro­static loading phase. (a) Total volumetric strain maps; (b) total shear maps; (c) normalized incremental shear strain magnitude maps. The numbers of scans on the top of the figures refer to the scans in Fig. 12[link](c).
