4D imaging of a porous carbonate rock under triaxial loading: quantitative correlation between local porosity and strain

Doré-Ossipyan, C.; Quacquarelli, A.; Bornert, M.; Sulem, J.; Dimanov, A.; Aimedieu, P.; De Greef, V.; King, A.

doi:10.1107/S1600577526006958

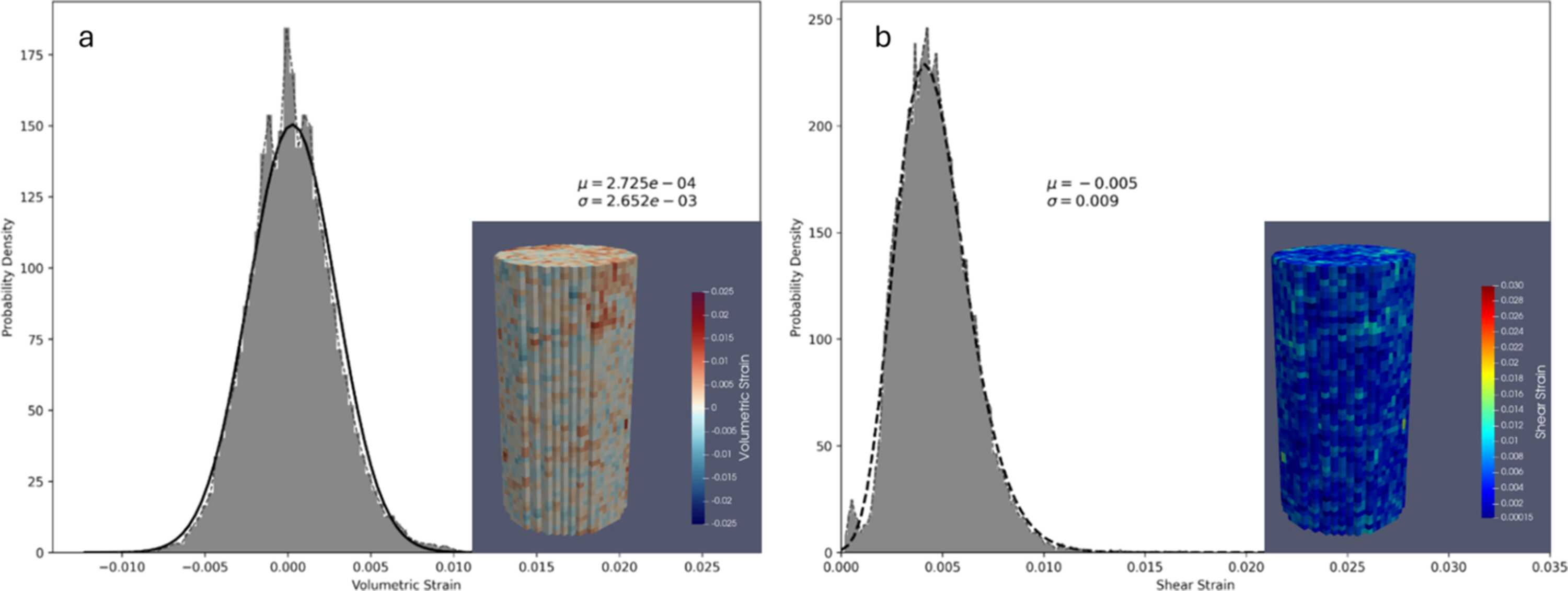

Figure 9
Typical DVC applied on even images. (a) Probability density of volumetric strain with a fitted normal distribution, and the corresponding volumetric strain map. (b) Probability density of shear strain with a fitted lognormal distribution, and the corresponding shear strain magnitude map.
