Wavefront sensing at a high-repetition-rate X-ray free-electron laser

Guest, T.; Vagovič, P.; Adriano, L.; Bielecki, J.; Birnsteinova, S.; Graceffa, R.; Koliyadu, J.; Morgan, K.; Moriyama, H.; Mosko, D.; Riessen, G.; Sabol, K.; Sato, T.; Szeles, P.; Taylor, Z.; Uličný, J.; Bean, R.; Mancuso, A.P.; Abbey, B.

doi:10.1107/S1600577526005898

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 5

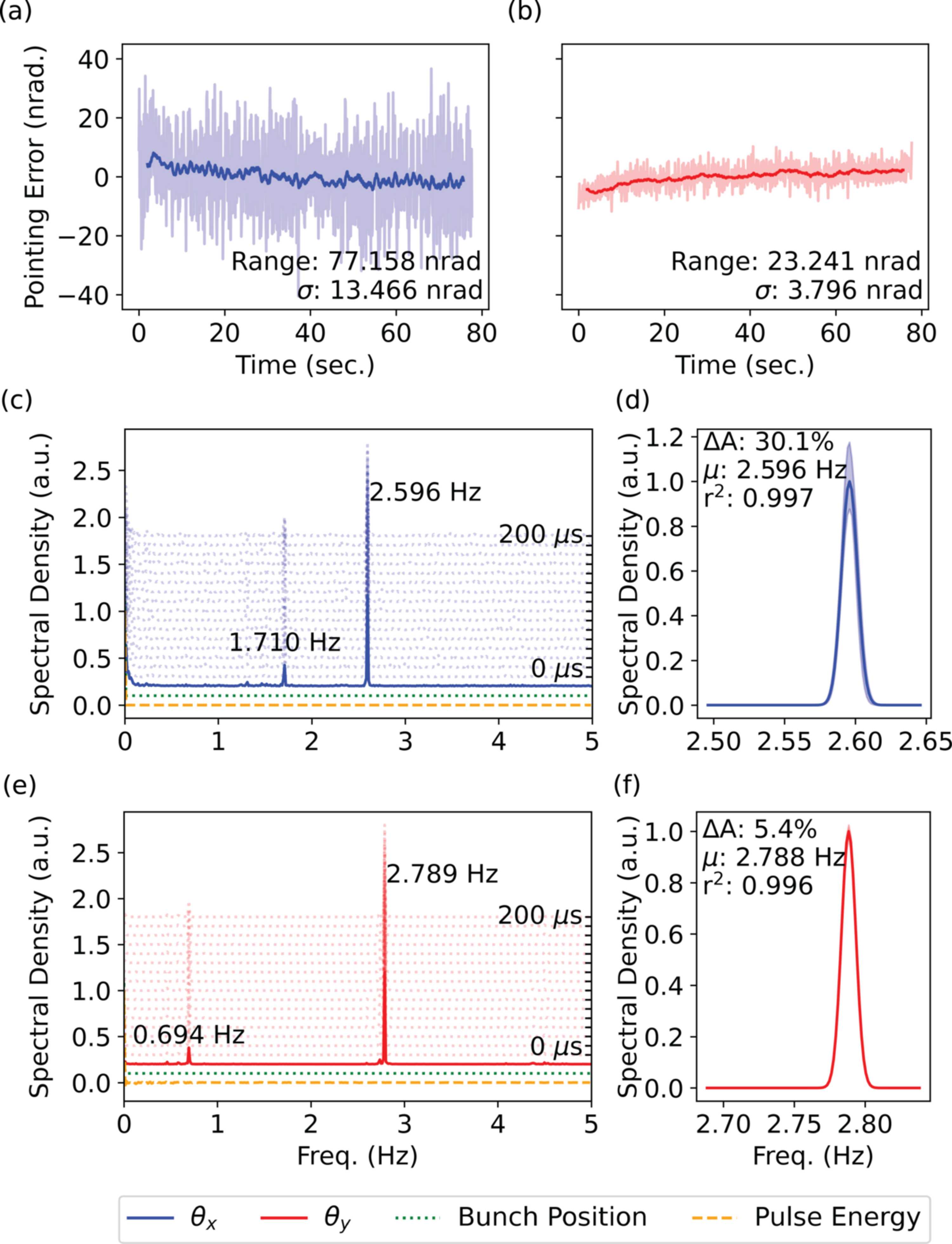

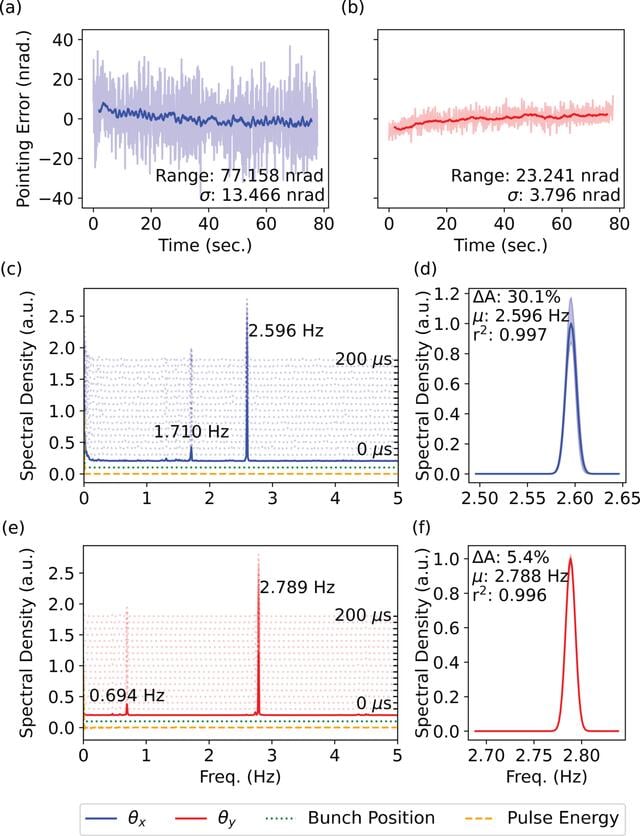

Fourier analysis of inter-train pointing-angle fluctuations at the European XFEL. (a, b) Temporal evolution of horizontal and vertical inter-train pointing errors, with shaded regions indicating the range of low-frequency oscillations, and their corresponding (c, e) frequency-domain representations. The mean (solid) and pulse-resolved (dotted) spectra are presented alongside frequency domain representations of simultaneous fluctuations in electron bunch position and pulse energy, as measured on the BPM and XGM, respectively. Magnified fits of the dominant Fourier modes are presented in panels (d, f), with the shaded trace quantifying the amplitude variation across the pulse train.
