Structure design and implementation of a water cooling sub-20 nm multilayer Kirkpatrick–Baez mirror system in the Structural Dynamics beamline ID23 at HEPS

Liao, R.; Yu, H.; Wang, J.; Wang, X.; Zhang, C.; Kang, W.; Fan, L.; Yao, C.; Hou, P.; Sun, D.; Liu, F.; Zhang, L.; Cui, Z.; Ren, Z.; Ou, Z.; Xu, R.; Fu, D.; Wang, Y.; Li, P.; Zhang, C.; Bian, L.; Zhang, M.; Gu, Z.; Li, Z.; Shen, Z.; Gao, L.; Zhang, B.; Tang, S.; Li, M.; Sheng, W.

doi:10.1107/S1600577526007393

Figure 16

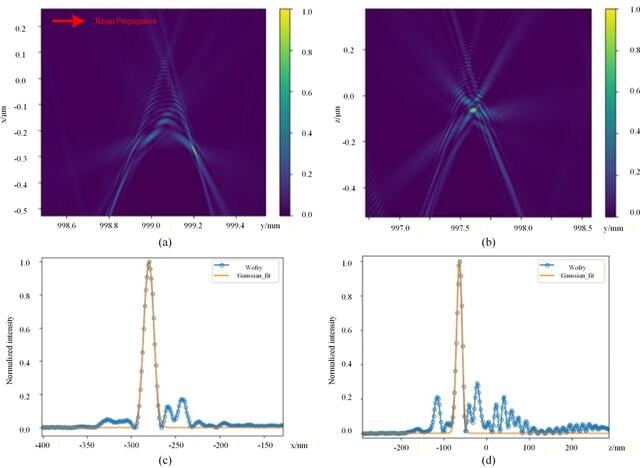

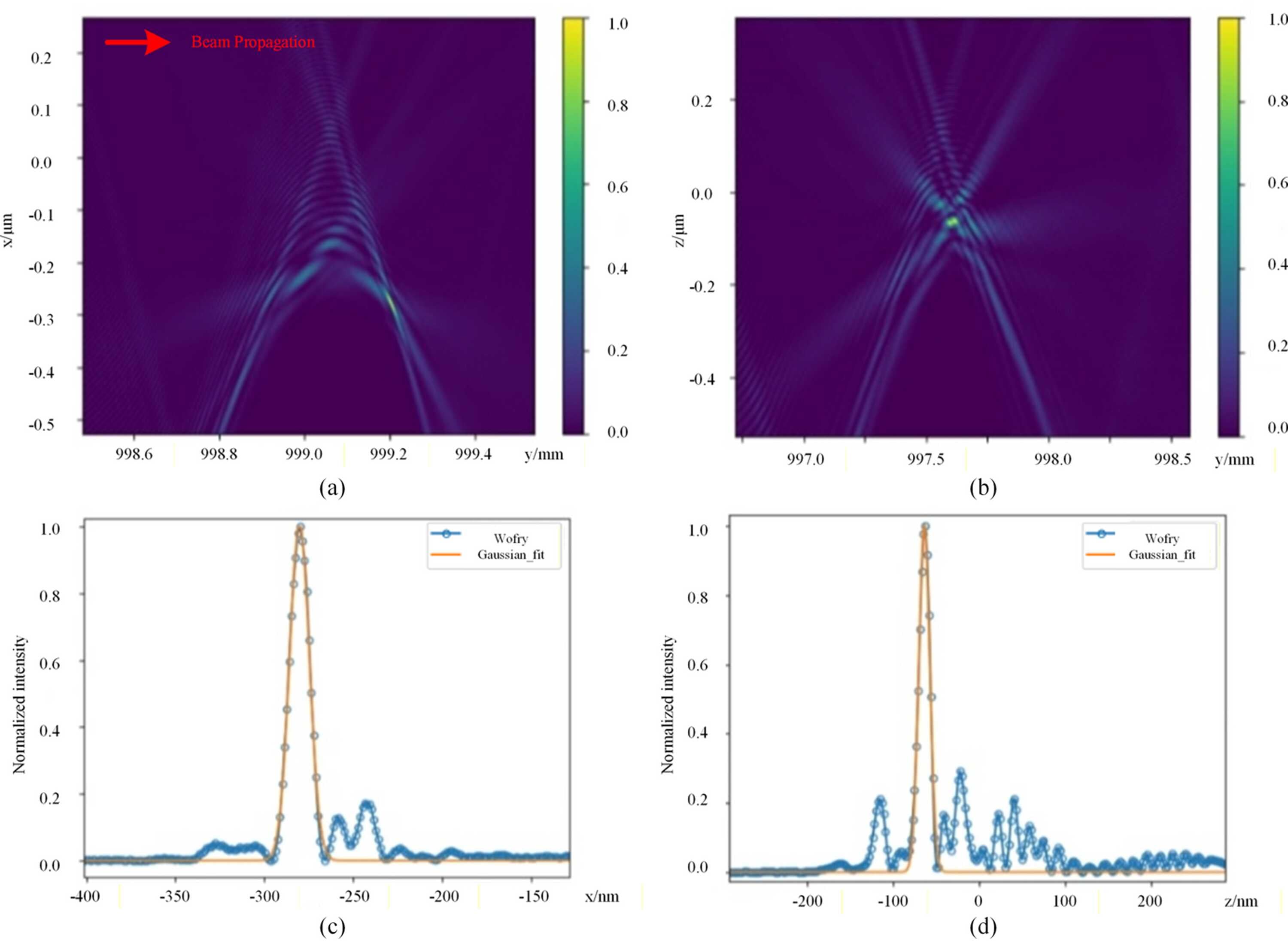

The intensity distribution near the focus of the (a) HFM and (b) VFM, and intensity profiles at the focus of (c) the HFM and (d) the VFM.
