Structure design and implementation of a water cooling sub-20 nm multilayer Kirkpatrick–Baez mirror system in the Structural Dynamics beamline ID23 at HEPS

view article

Figure 9

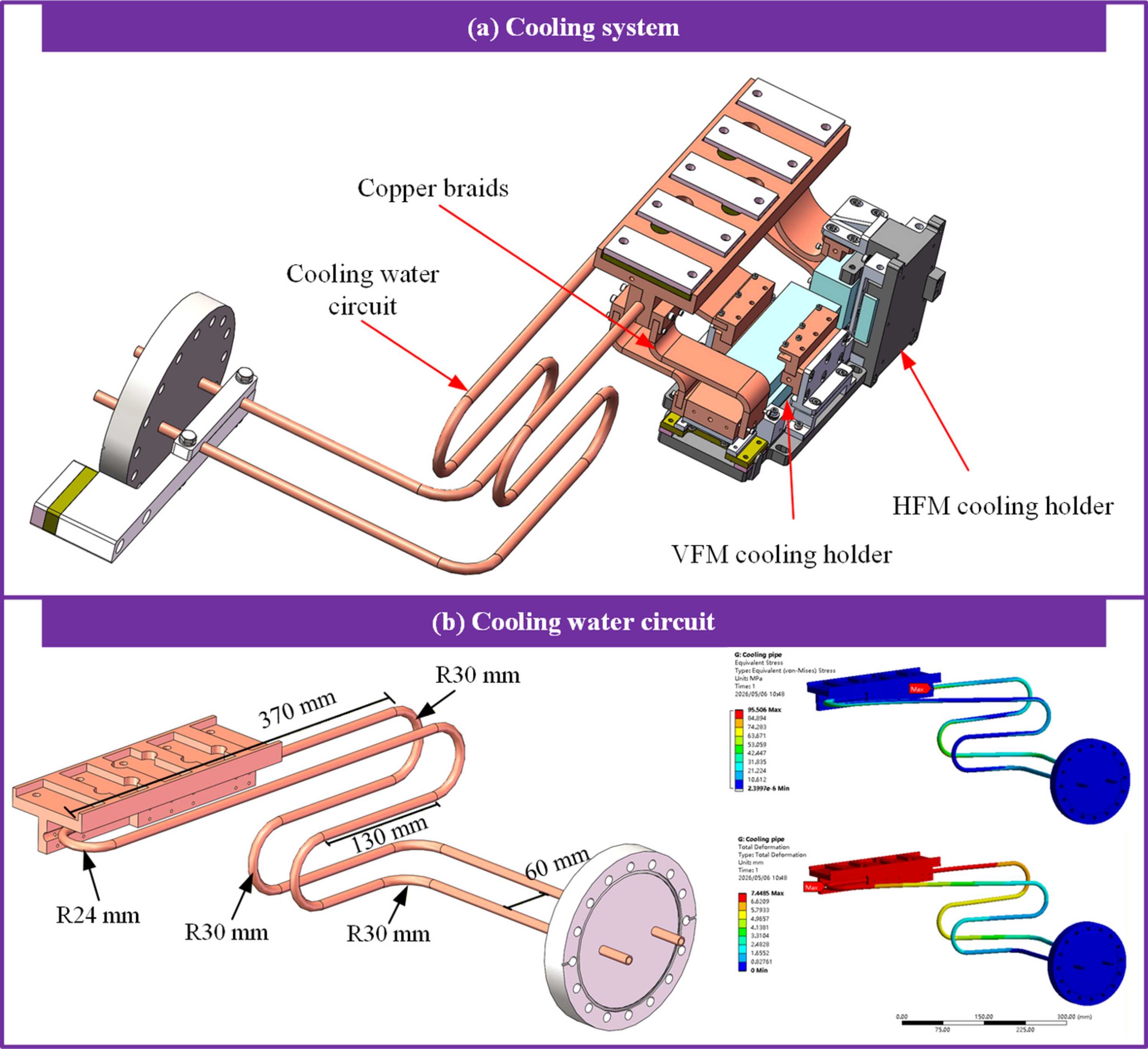

(a) 3D model of the cooling system. (b) 3D model and FEA of the cooling water circuit.
