Shorter X-ray refractive lens design: a large-aperture single-lens dual-focus kinoform lens based on an oval curved surface

Zhang, Y.; Xu, Y.; Zhang, T.; Wang, B.; Wu, L.; Yi, F.; Lin, H.; Liu, J.

doi:10.1107/S1600577526007551

Figure 1

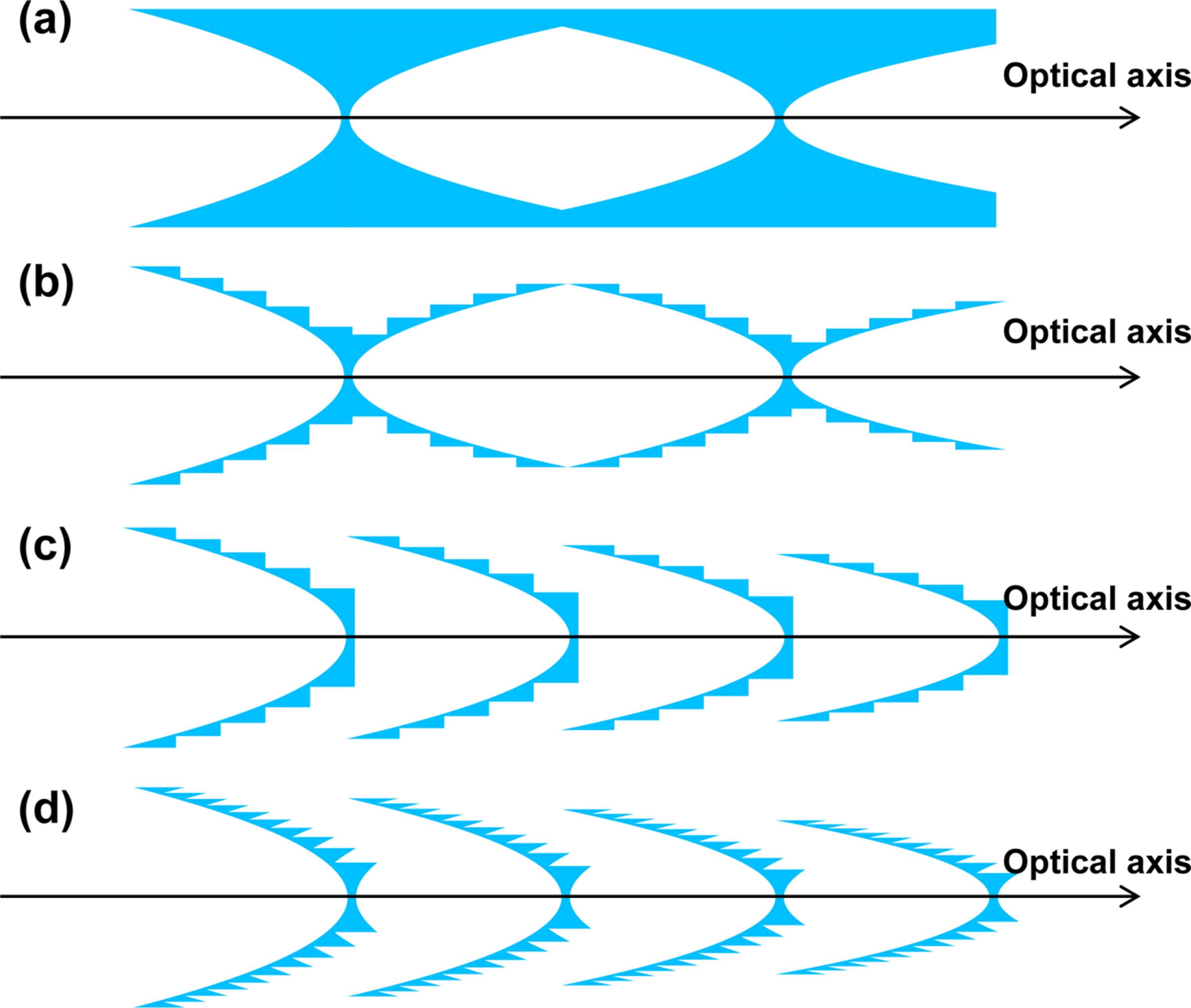

Schematic diagrams of four different lens designs. (a) OC lens with alternating aperture orientations, (b) OK1 lens with alternating aperture orientations, (c) OK2 lens with uniform aperture orientations and (d) proposed OK3 lens with optimized phase compensation.
