Shorter X-ray refractive lens design: a large-aperture single-lens dual-focus kinoform lens based on an oval curved surface

Zhang, Y.; Xu, Y.; Zhang, T.; Wang, B.; Wu, L.; Yi, F.; Lin, H.; Liu, J.

doi:10.1107/S1600577526007551

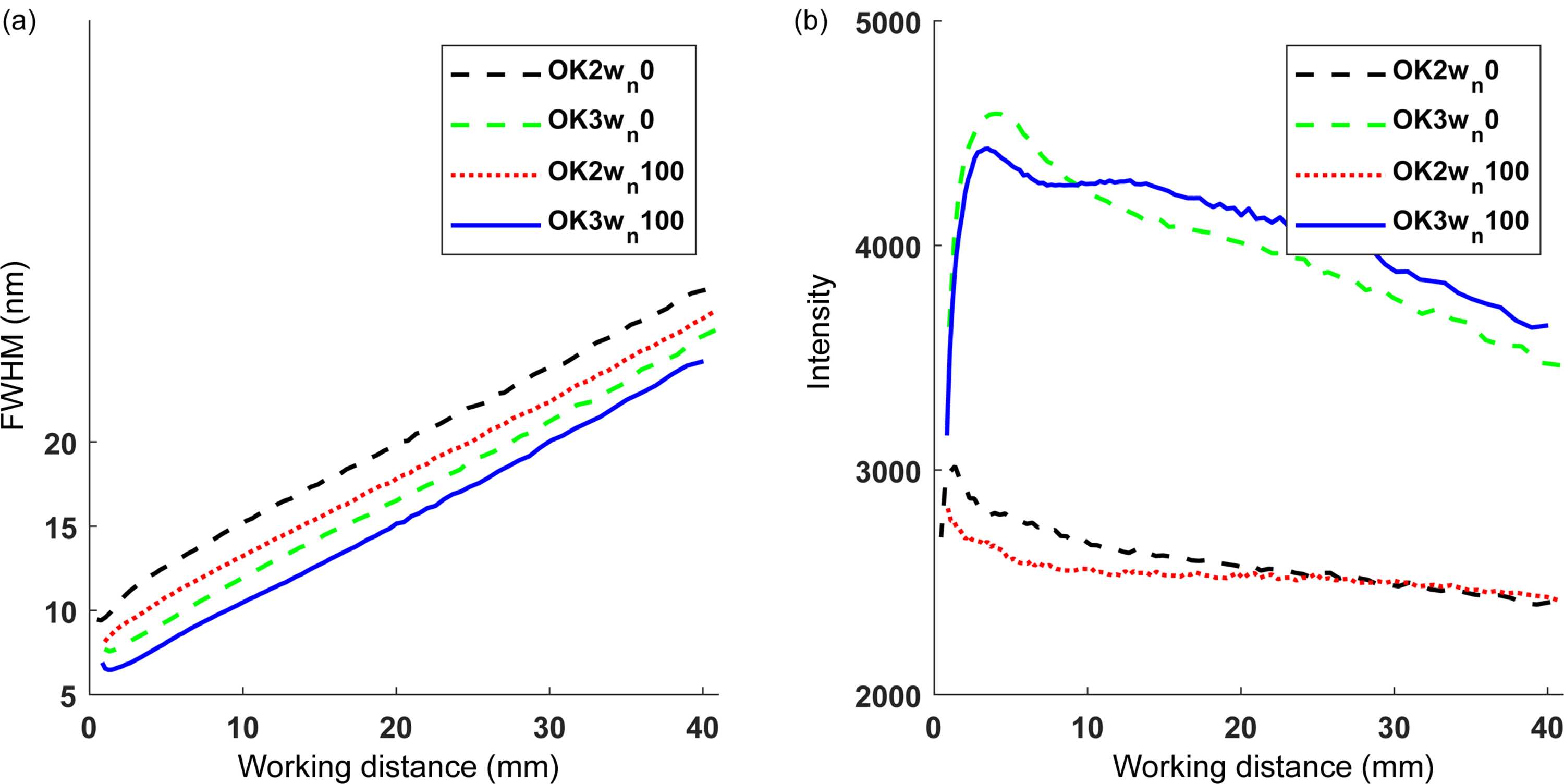

Figure 7
Focusing performance versus working distance for 200 µm aperture OK2 w_n = 0 µm, OK3 w_n = 0 µm, OK2 w_n = 100 µm and OK3 w_n = 100 µm lenses. (a) FWHM variations and (b) gain variations.
