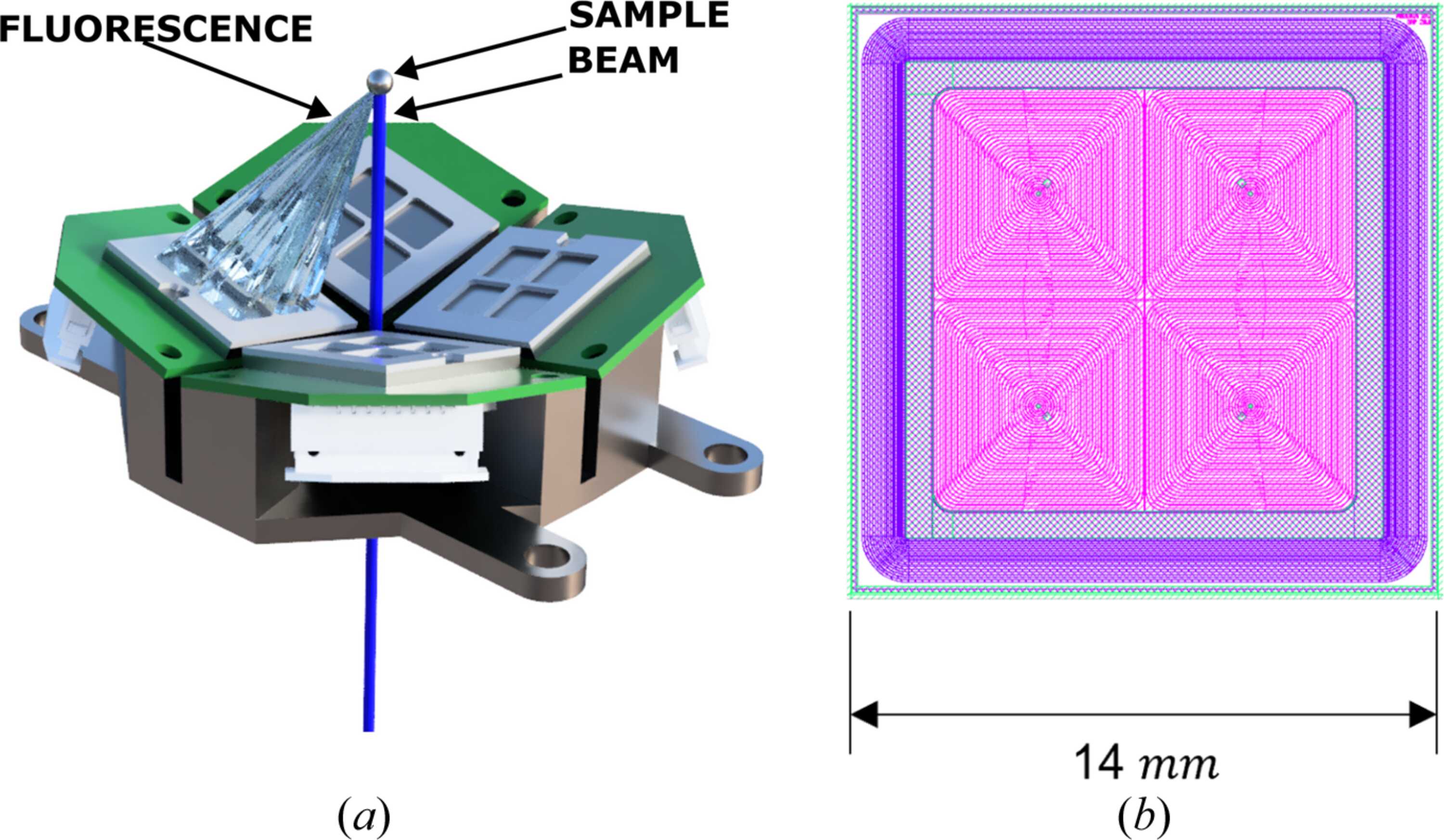

Figure 1
ASCANIO working principle and SDD layout. (a) Working principle of ASCANIO: the X-ray beam (highlighted in blue) crosses the detector head, hitting the sample. The emitted fluorescent light is then collected by four SDD modules, which are tilted and feature four channels each. (b) The SDD array has a squared geometry of 14 mm on a side and 1 mm thickness; each channel has a 5 mm × 5 mm active area.
