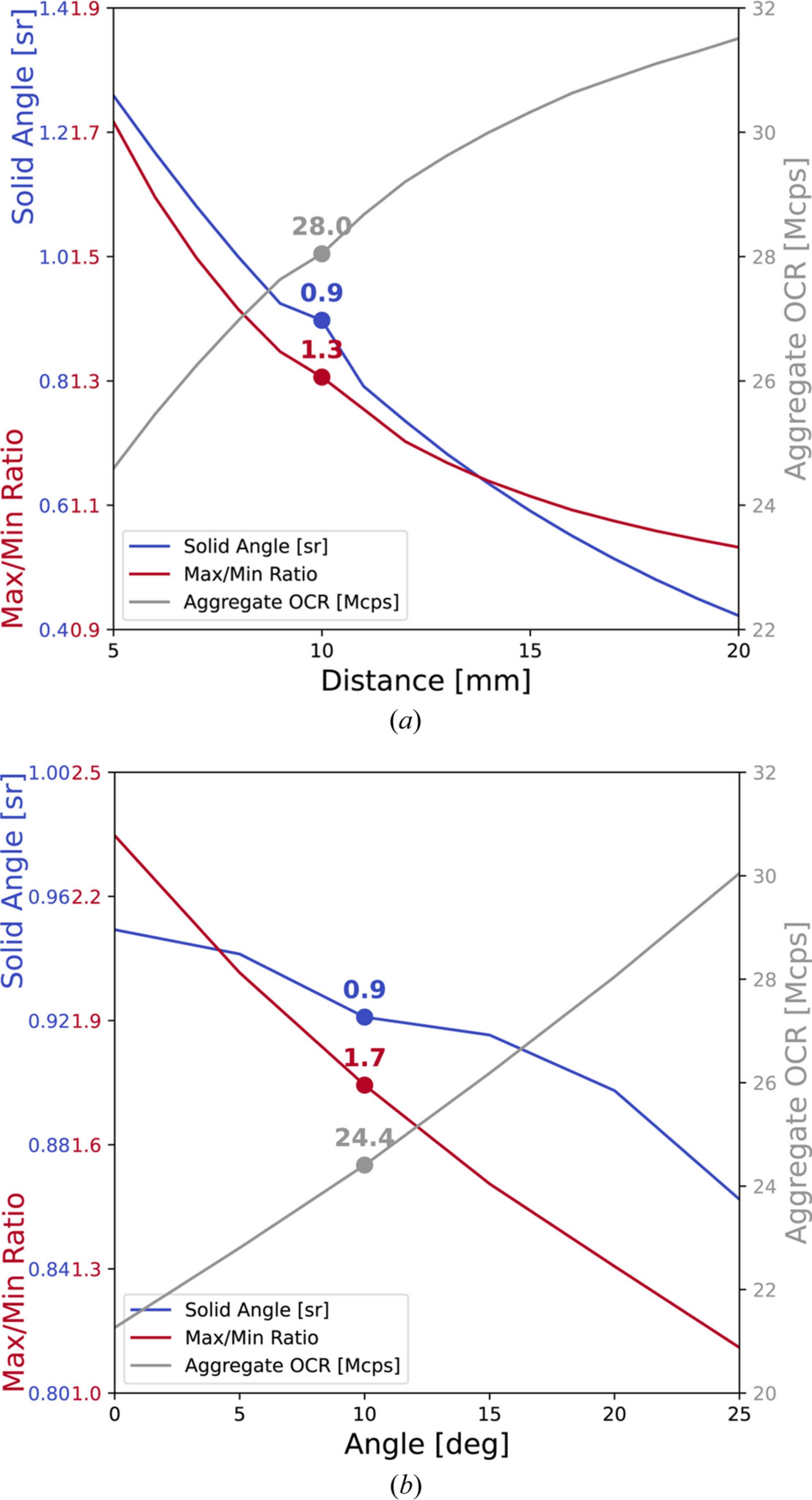

Figure 2
Solid angle, MMR and aggregate maximum output count rate (OCR) plotted against distance from the window and module tilt angle. (a) Detector figures of merit as a function of distance from the window (20° tilt angle). A maximum OCR of 2 Mcps has been considered for the units closer to the center. (b) Detector figures of merit as a function of module tilt angle (10 mm distance from the window).
