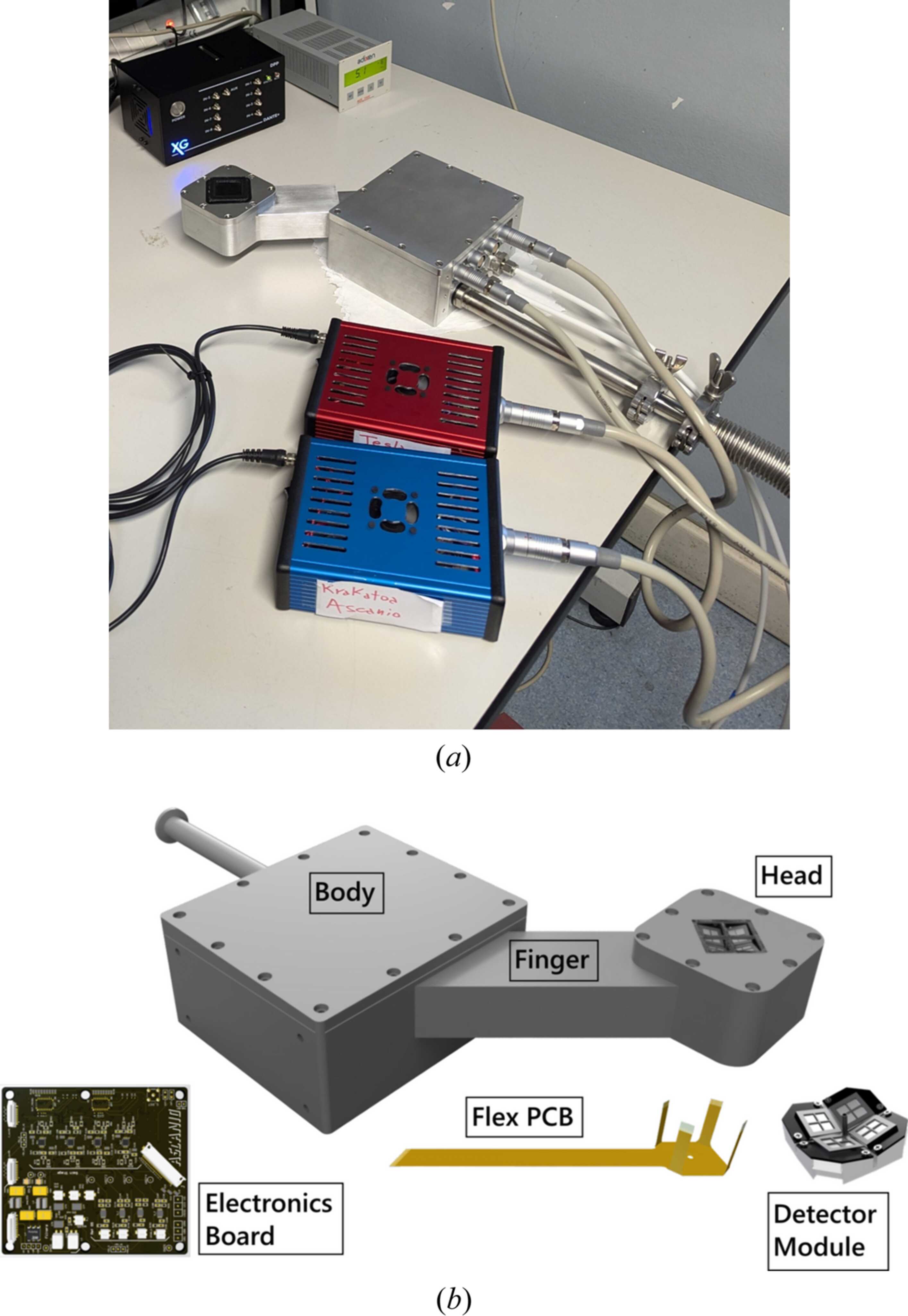

Figure 4
ASCANIO instrument assembly and main components. (a) Laboratory setup of ASCANIO together with the external units. The figure also shows all the electrical connections, a pair of tubes for liquid cooling and the vacuum connections. (b) Simplified schematic diagram of the instrument, highlighting the mechanical structure and main components.
