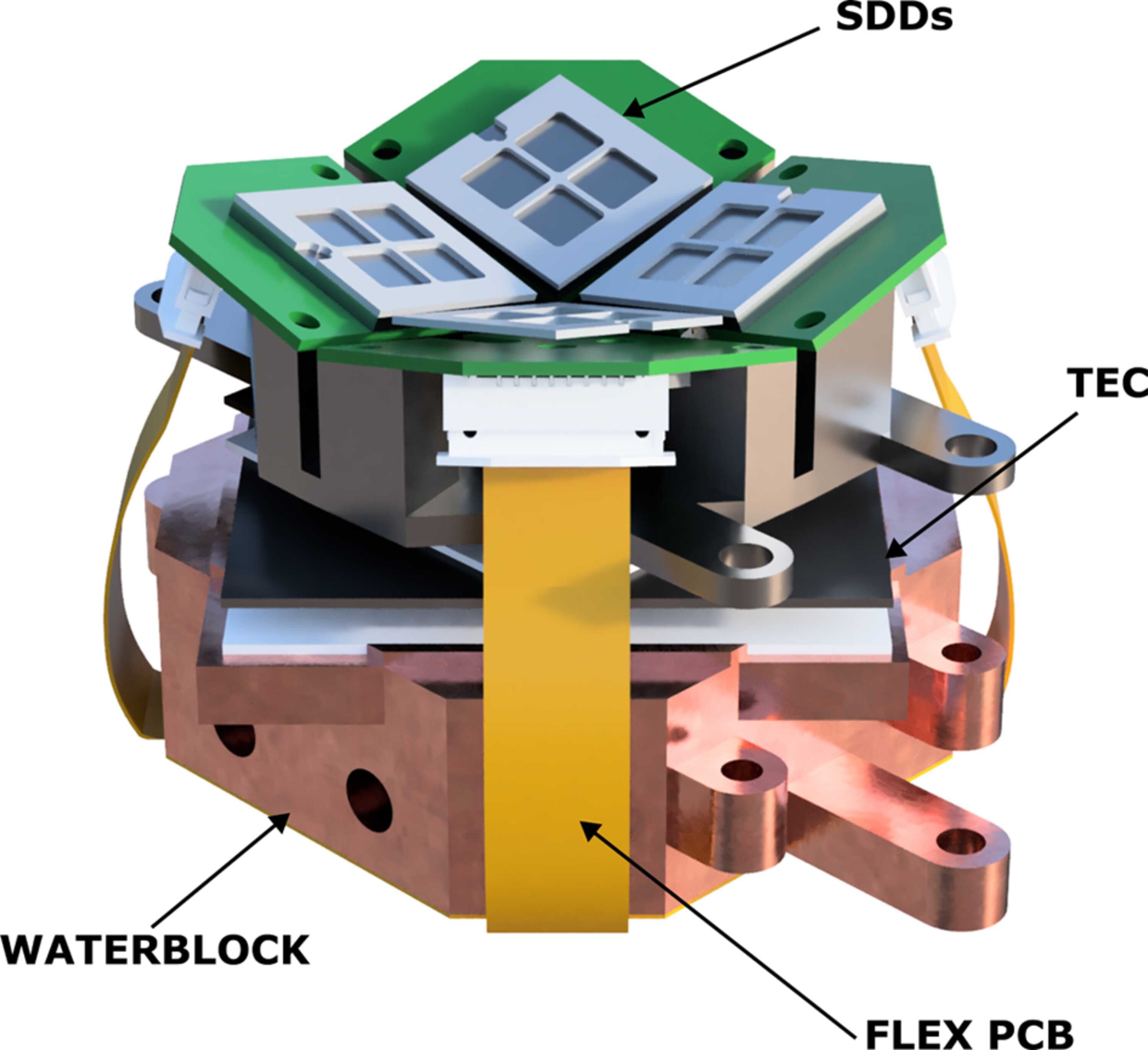

Figure 5
Three-dimensional render of ASCANIO sensing head internals, with highlights on the monolithic modules (SDDs), the thermoelectric coolers (TEC), the 3D-printed heat exchanger (WATERBLOCK) and the flexible PCB for connection with the readout board (FLEX PCB).
