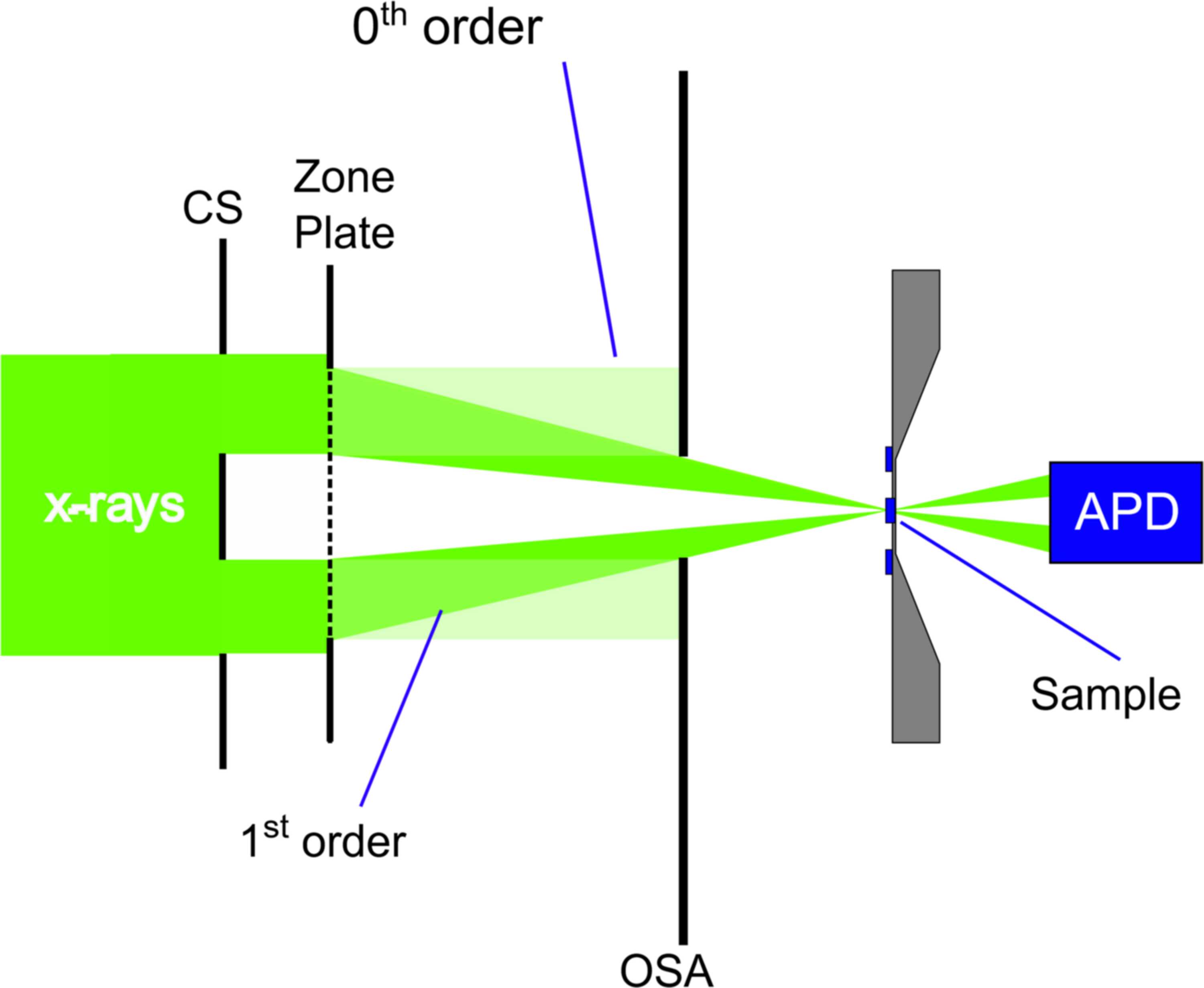

Figure 1
Sketch of the STXM setup, composed of a center stop, a Fresnel zone plate, an order-sorting aperture and an SiN membrane used as a support for the sample. Behind the membrane, an avalanche photodiode detector is used to monitor the transmitted photon flux.
