Figure 10

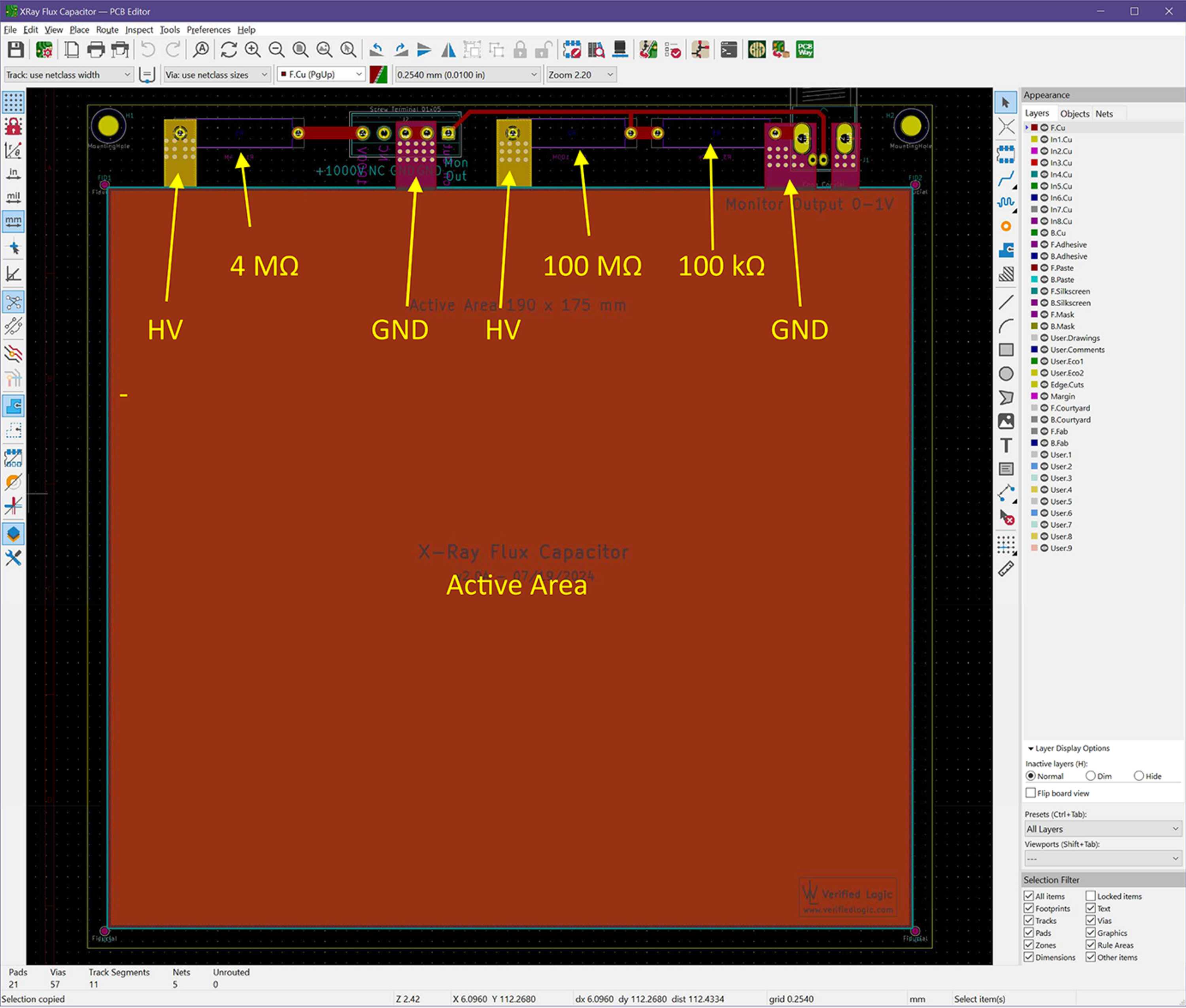

KiCAD board layout of the medium-sized capacitor BTM prototype. The active area in the layout is indicated in red.
