Design and performance of a capacitor-based burn-through monitor for high-power X-ray beams at XFEL facilities

Langeveld, W.; Rowen, M.; Prinz, A.; Armenta, R.; Chollet, M.; Gee, C.; Heimann, P.; Kirks, J.; Nakahara, K.; Ortiz, E.; Rokni, S.; Rosenstrom, A.; Sato, T.; Schlotter, B.; Smith, B.; Stefanescu, C.; Willard, Y.; Xiao, S.; Yavas, H.; Zhu, D.

doi:10.1107/S1600577526008647

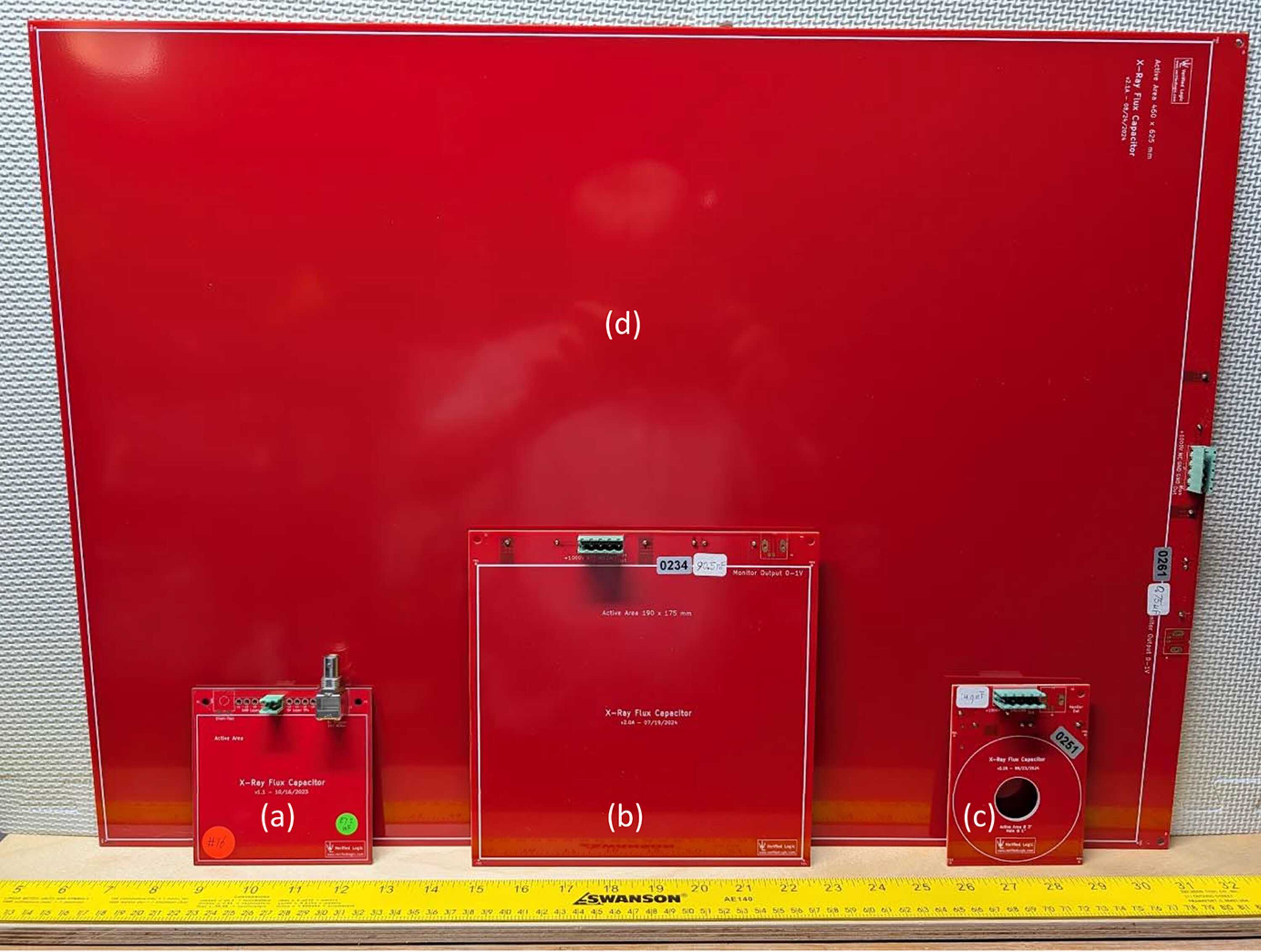

Figure 2
Photograph of the different prototype capacitor BTMs: (a) early prototype with sensitive area of 100 mm × 85 mm; (b) medium prototype with sensitive area 195 mm × 175 mm; (c) small prototype with 75 mm outer- and 25 mm inner diameter sensitive area; (d) large prototype with sensitive area 625 mm × 460 mm.
