Design and performance of a capacitor-based burn-through monitor for high-power X-ray beams at XFEL facilities

Langeveld, W.; Rowen, M.; Prinz, A.; Armenta, R.; Chollet, M.; Gee, C.; Heimann, P.; Kirks, J.; Nakahara, K.; Ortiz, E.; Rokni, S.; Rosenstrom, A.; Sato, T.; Schlotter, B.; Smith, B.; Stefanescu, C.; Willard, Y.; Xiao, S.; Yavas, H.; Zhu, D.

doi:10.1107/S1600577526008647

Figure 7

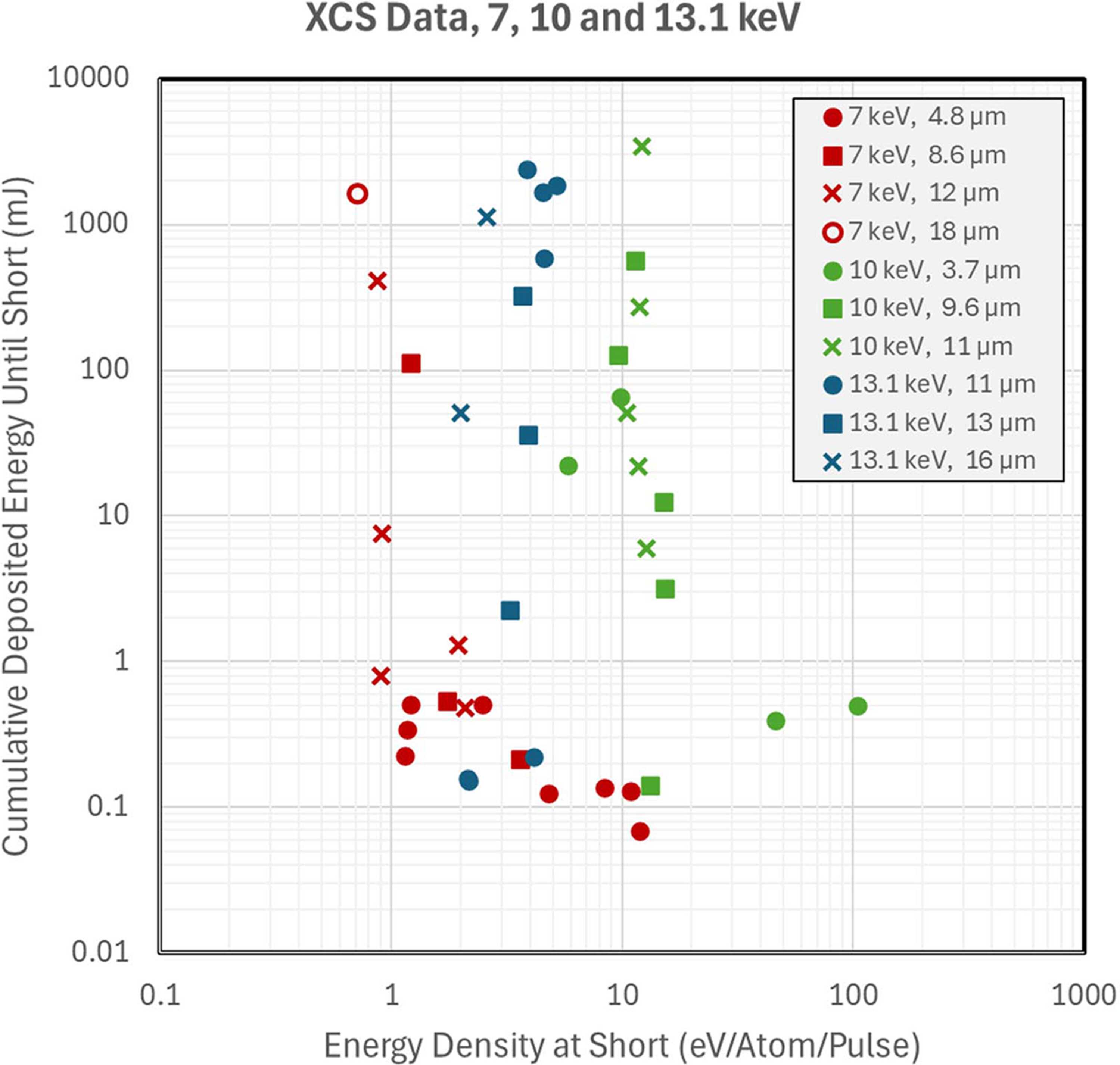

Cumulative energy deposited in the capacitor BTM until it shorted versus energy density at the time of the short for 40 capacitors tested at XCS at three X-ray energies: 13 keV (blue data points), 7 keV (red) and 10 keV (green). Marker type indicates the beam diameter (FWHM) in µm, as shown in the legend.

JOURNAL OF
SYNCHROTRON
RADIATION

ISSN: 1600-5775

Volume 33| Part 6| November 2026|

https://doi.org/10.1107/S1600577526008647
