Design and performance of a capacitor-based burn-through monitor for high-power X-ray beams at XFEL facilities

Langeveld, W.; Rowen, M.; Prinz, A.; Armenta, R.; Chollet, M.; Gee, C.; Heimann, P.; Kirks, J.; Nakahara, K.; Ortiz, E.; Rokni, S.; Rosenstrom, A.; Sato, T.; Schlotter, B.; Smith, B.; Stefanescu, C.; Willard, Y.; Xiao, S.; Yavas, H.; Zhu, D.

doi:10.1107/S1600577526008647

Figure 9

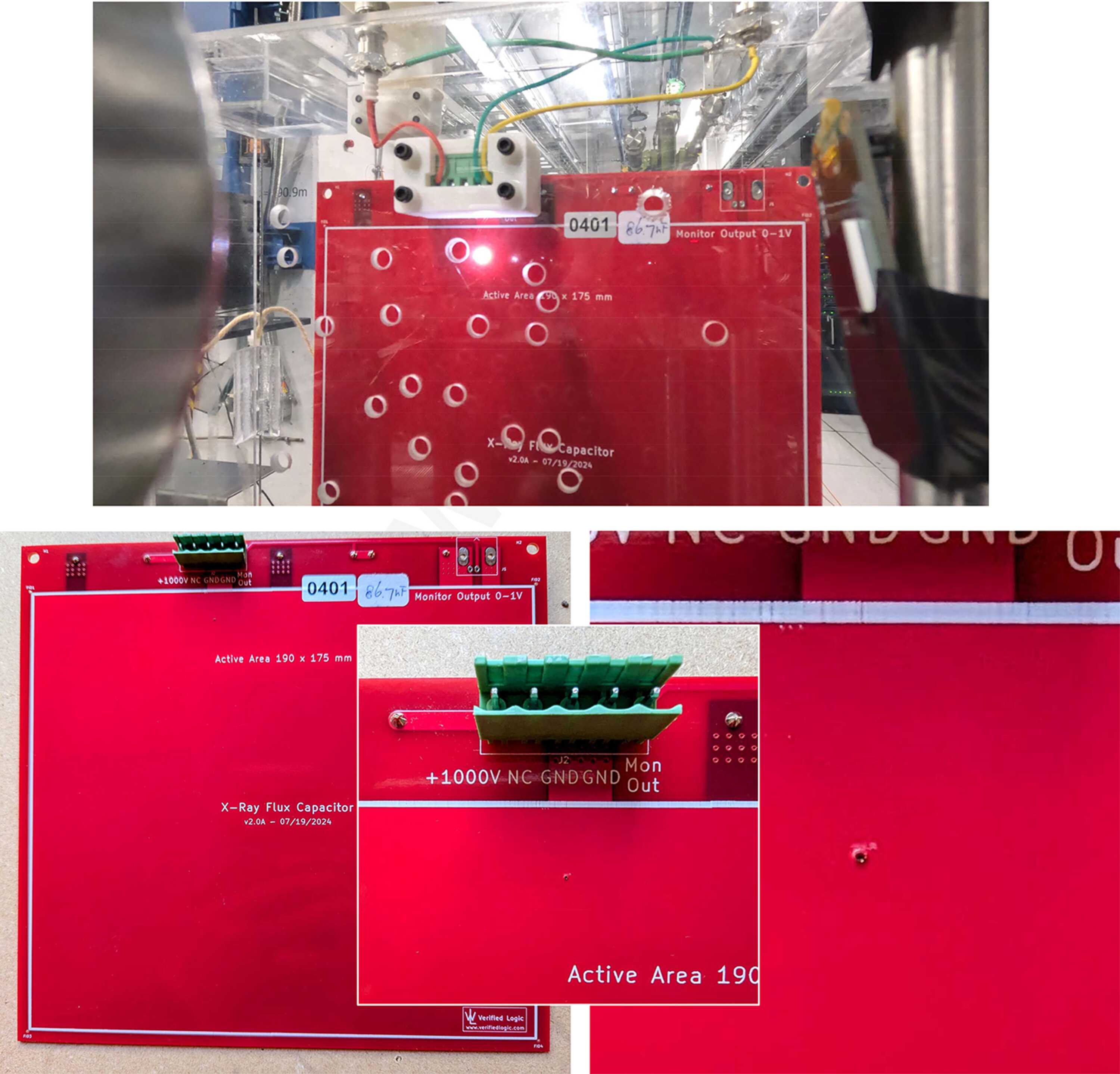

Top: the moment of the short in the beam at XPP for capacitor BTM 401. Bottom: zoomed in images of capacitor BTM 401 after the short. A burn mark is clearly visible.
