Figure 3

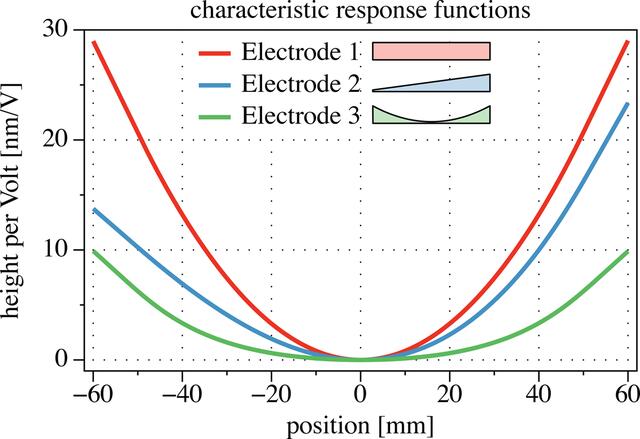

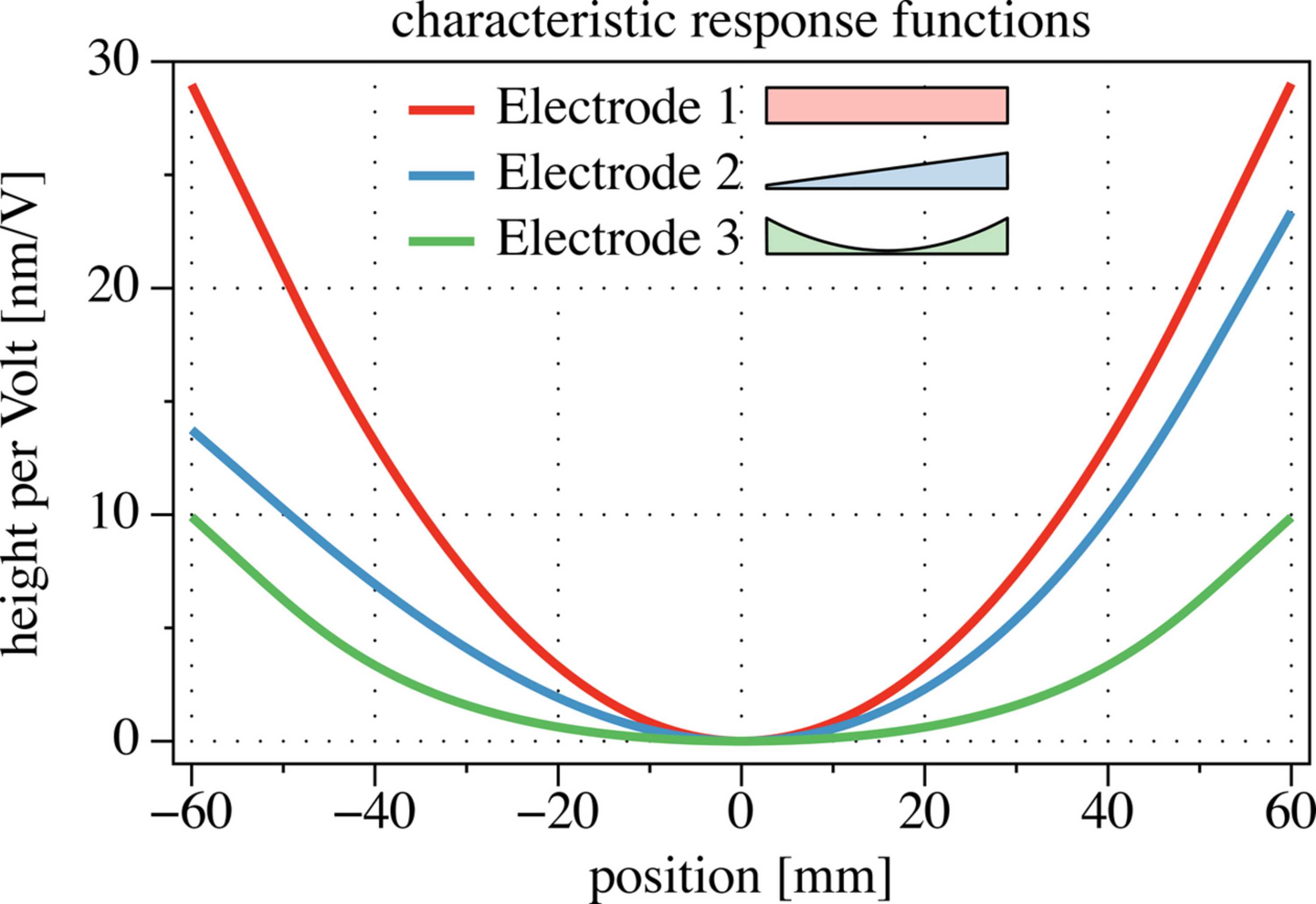

Characteristic response functions {Si}, calculated from an ANSYS FEA model. The surface shape profiles are extracted from the central meridian. The curves contain 481 points and represent height change per volt from each of the three electrode pairs. The shapes are plotted with zero central slope and height.
