Figure 4

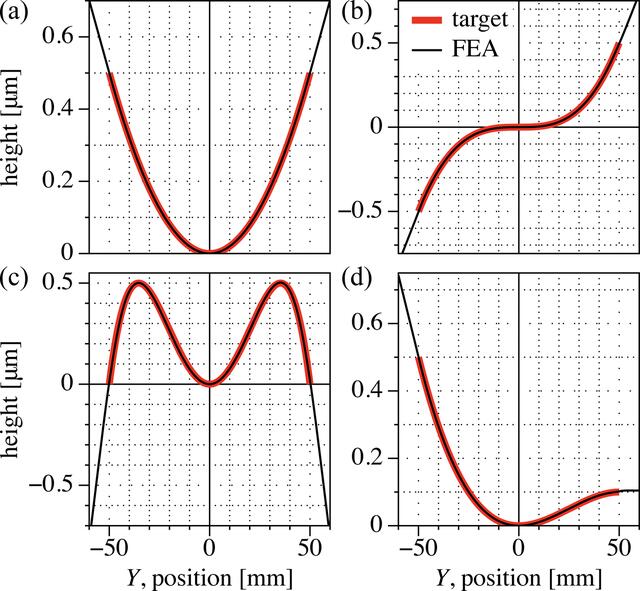

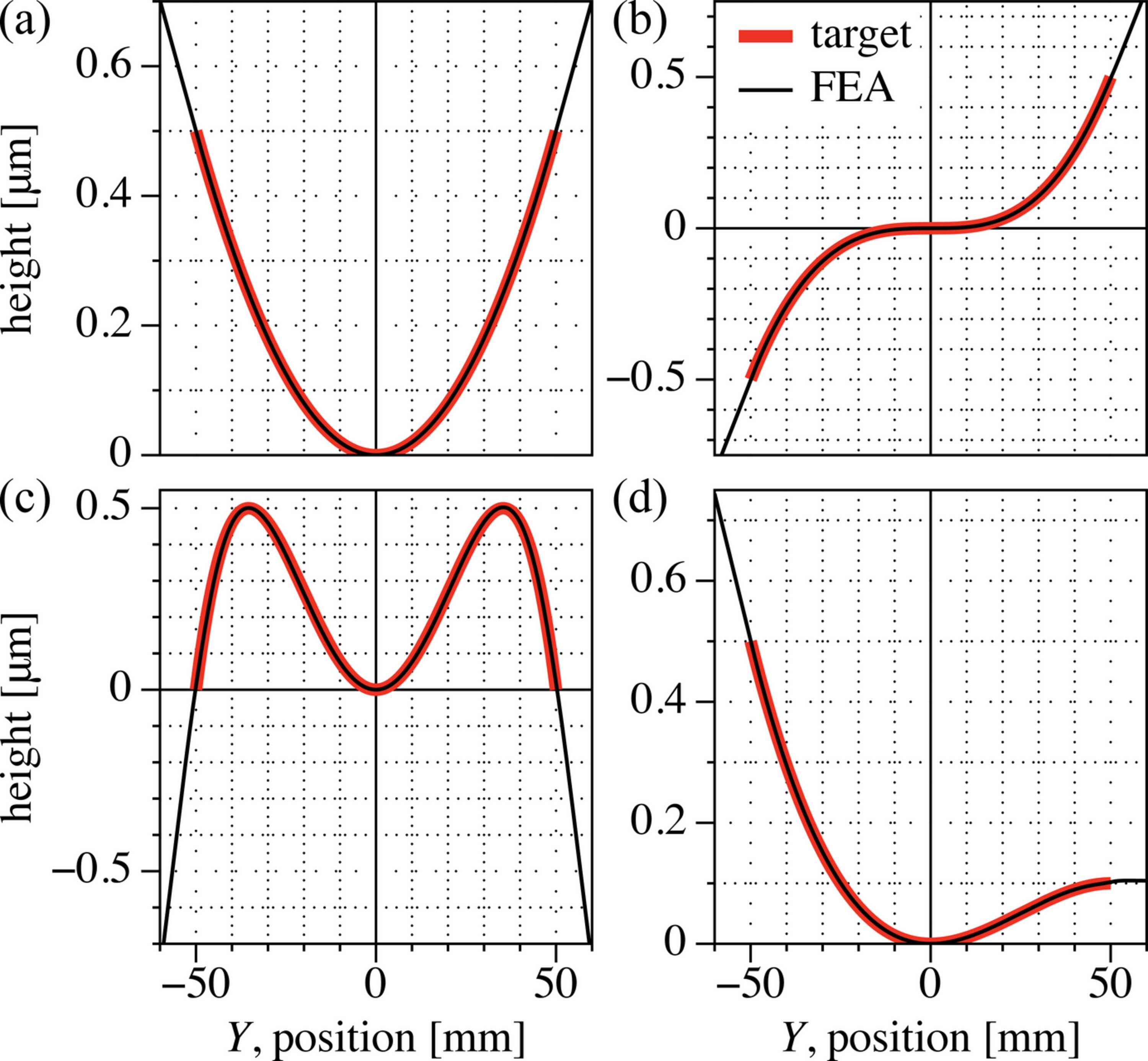

Comparison of target shapes (red lines) and FEA model profiles (black lines). The shapes are defined in Table 2[link]: (a) second order, (b) third order, (c) fourth order and second order, and (d) third order and second order. Electrode voltages used in the model are given in Table 3[link]. (Note: central heights and slopes have been set to zero.)
