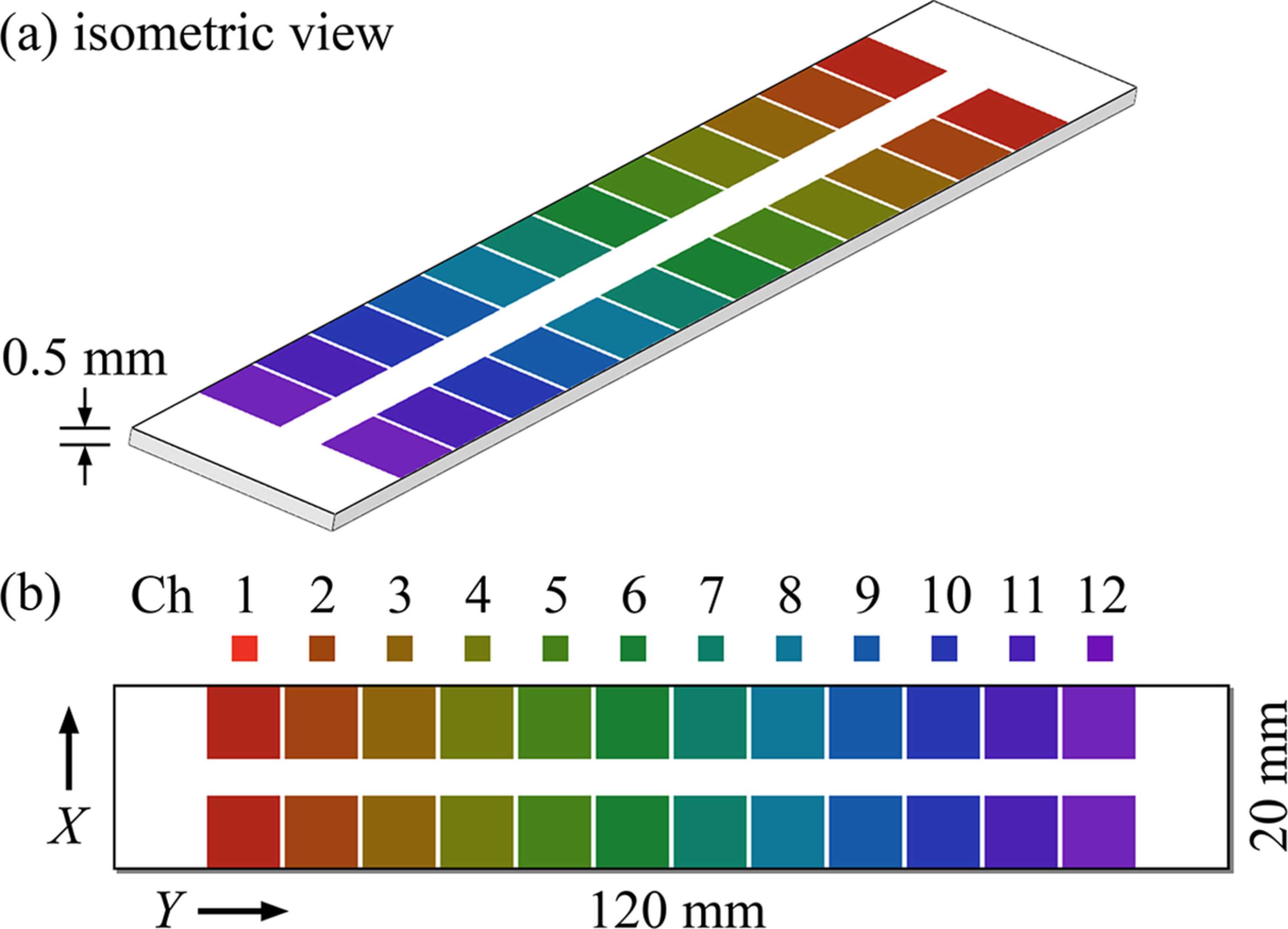

Figure 5
Layout of a 12-channel electrode array, with symmetrically placed electrodes on the front and back sides. The electrodes span the central 100 mm length. The electrodes are labeled as channels 1 through 12. (a) Isometric view. (b) Top view. A matching electrode pattern is applied to the (unseen) back side. The mirror is 0.5 mm thick.
