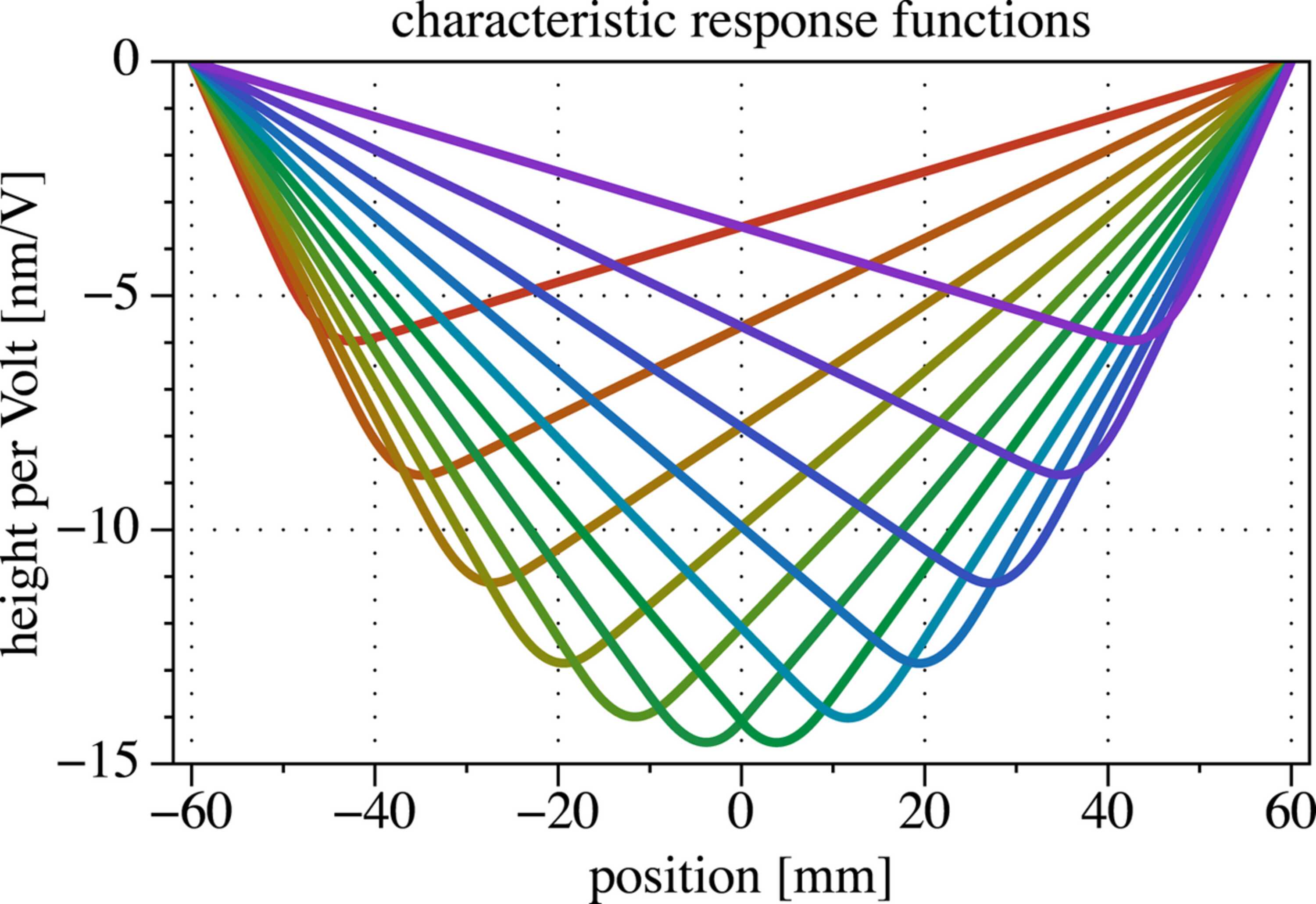

Figure 6
Characteristic response functions of a conventional, 12-channel electrode array, calculated with FEA. The shape profiles are extracted from the central meridian. The curves contain 487 points and represent height change per volt from each channel, individually. Tilt and offset are subtracted from each shape to set the endpoints to zero.
