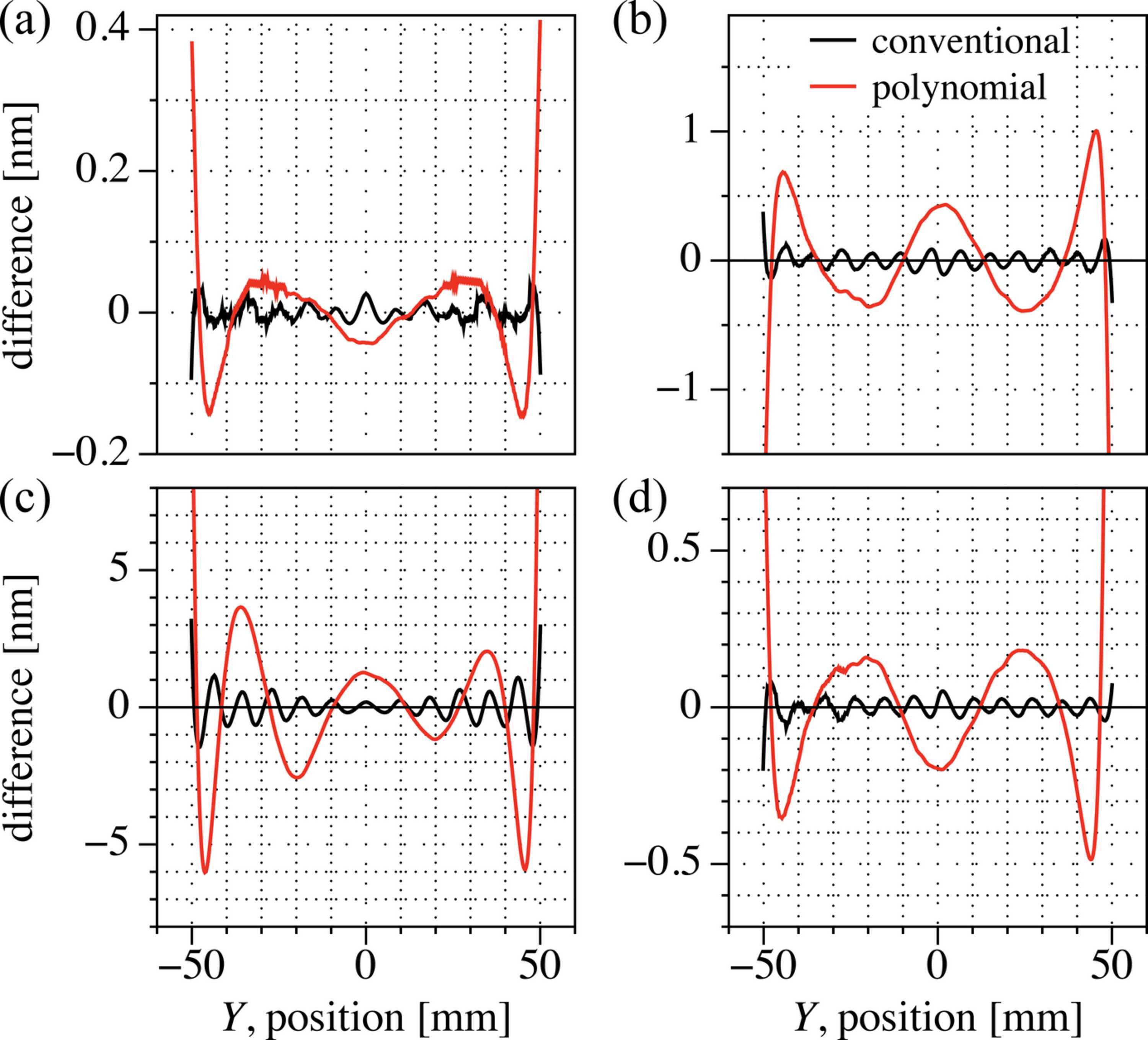

Figure 7
Pointwise residuals between the actuated FEA models and the four target shapes. Red and black lines represent the polynomial electrode model and the linear electrode array model, respectively. Shapes (a), (b), (c) and (d) are defined in Table 2[link], and the residual r.m.s. values are given in Tables 4[link] and 5[link]. (Note: the tilt and offset terms have been subtracted.)
