A femtosecond time-resolved Bragg coherent diffraction imaging experimental setup at PAL-XFEL for nanoscale lattice dynamics studies

Kang, J.; Park, J.; Shim, C.H.; Cho, M.-H.; Moon, K.-J.; Ha, S.S.; Kim, H.; Cho, S.-L.; Kim, S.

doi:10.1107/S1600577526007927

Figure 3

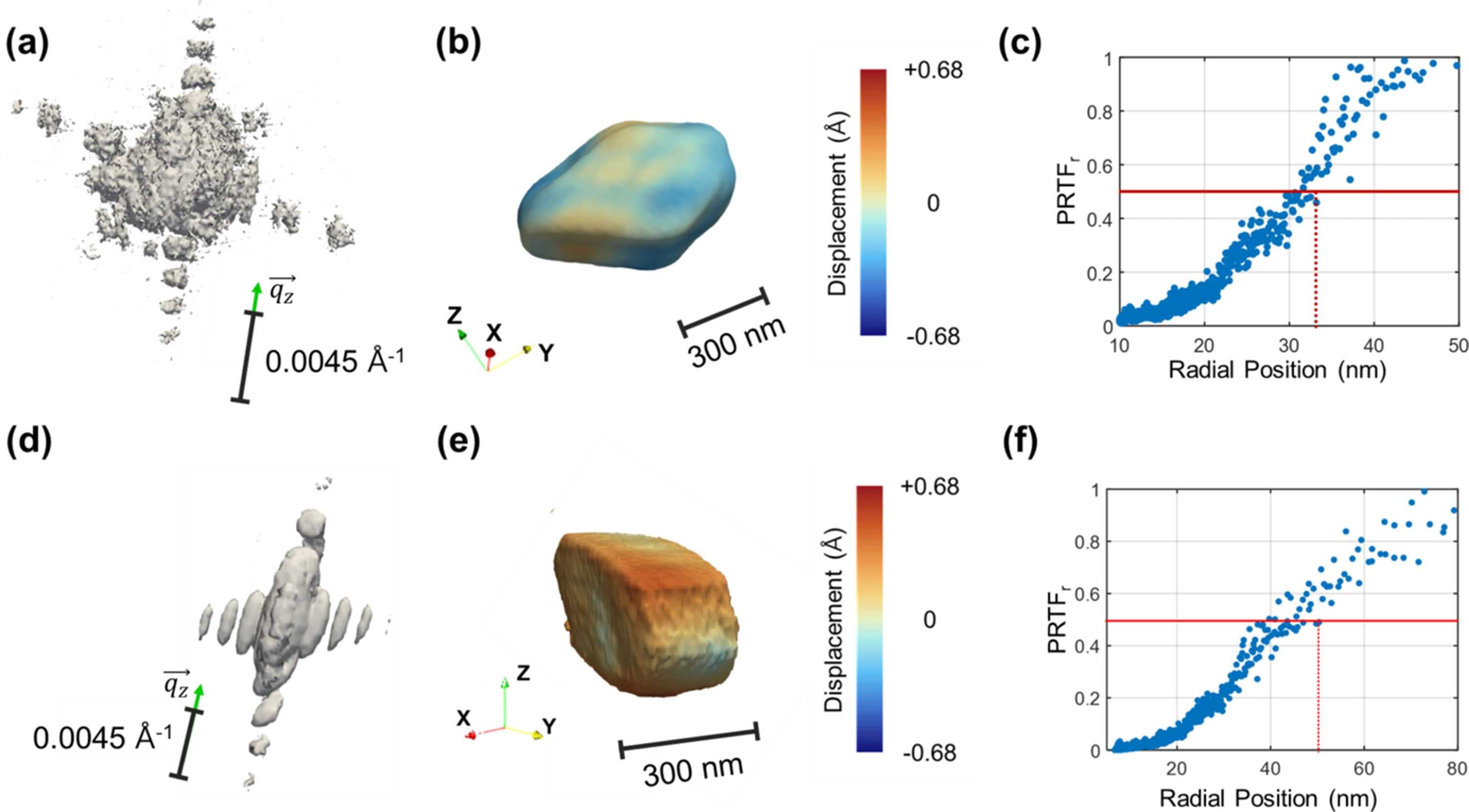

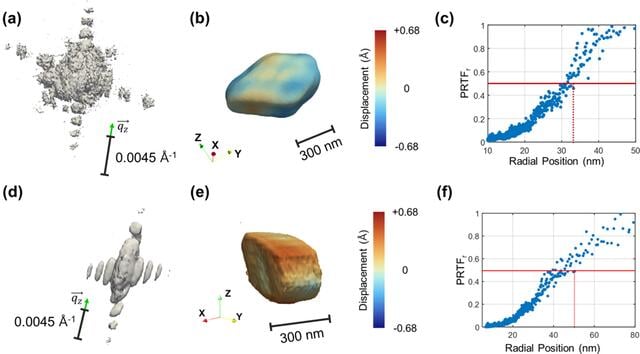

BCDI results of Au and zeolite nanocrystals. (a) 3D CXD pattern of Au nanocrystal at the Au (111) Bragg reflection (9.0 keV). (b) 3D reconstructed displacement field of the Au nanocrystal. (c) PRTF; spatial resolution 32.3 nm (PRTF = 0.5 criterion). (d) 3D CXD pattern of zeolite nanocrystal at the (020) Bragg reflection. (e) 3D reconstructed displacement field. (f) PRTF; spatial resolution 50.3 nm.
