From analytical to data-driven: multi-method optimization of a bendable mirror system for dynamic focusing

Sun, B.; Wen, Z.; Zhu, Q.; Luo, J.; Xu, T.; Zhu, L.; Liang, Y.; Sun, J.; Li, Z.; Xia, S.; Xu, Z.; Wu, M.; Li, Q.; Zhang, W.; Yang, X.

doi:10.1107/S1600577526009422

Figure 10

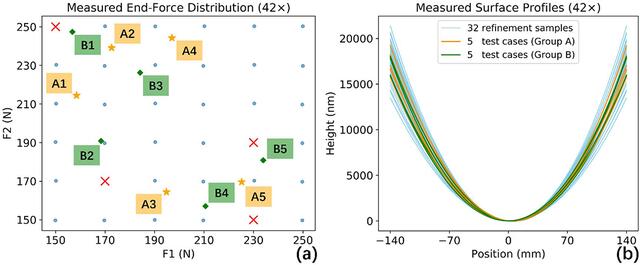

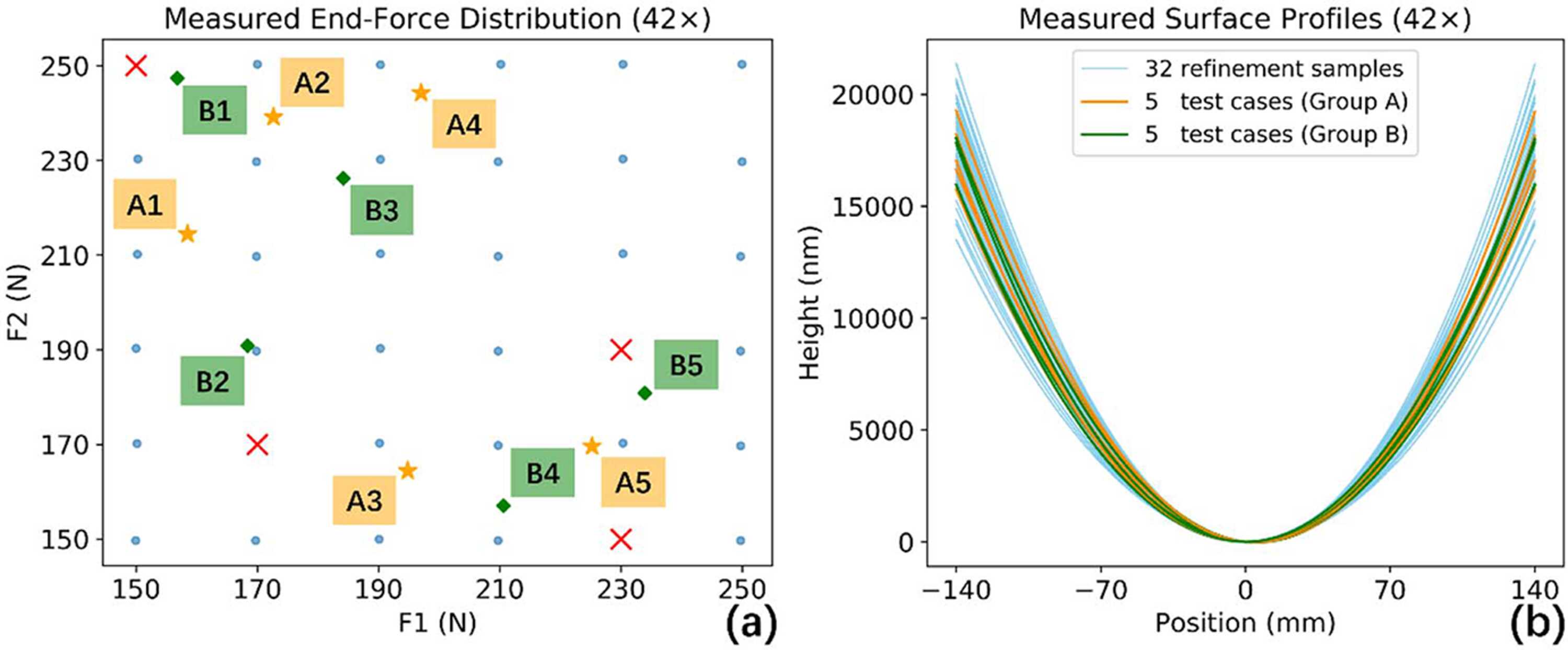

Matrix-style measured dataset used for model refinement and independent testing. (a) Distribution of applied end-force combinations. Blue circles denote the 32 refinement samples, orange pentagrams denote the five forward-prediction test cases, and green diamonds denote the five inverse-optimization test cases. (b) Corresponding measured surface profiles for all cases.
