From analytical to data-driven: multi-method optimization of a bendable mirror system for dynamic focusing

Sun, B.; Wen, Z.; Zhu, Q.; Luo, J.; Xu, T.; Zhu, L.; Liang, Y.; Sun, J.; Li, Z.; Xia, S.; Xu, Z.; Wu, M.; Li, Q.; Zhang, W.; Yang, X.

doi:10.1107/S1600577526009422

Figure 3

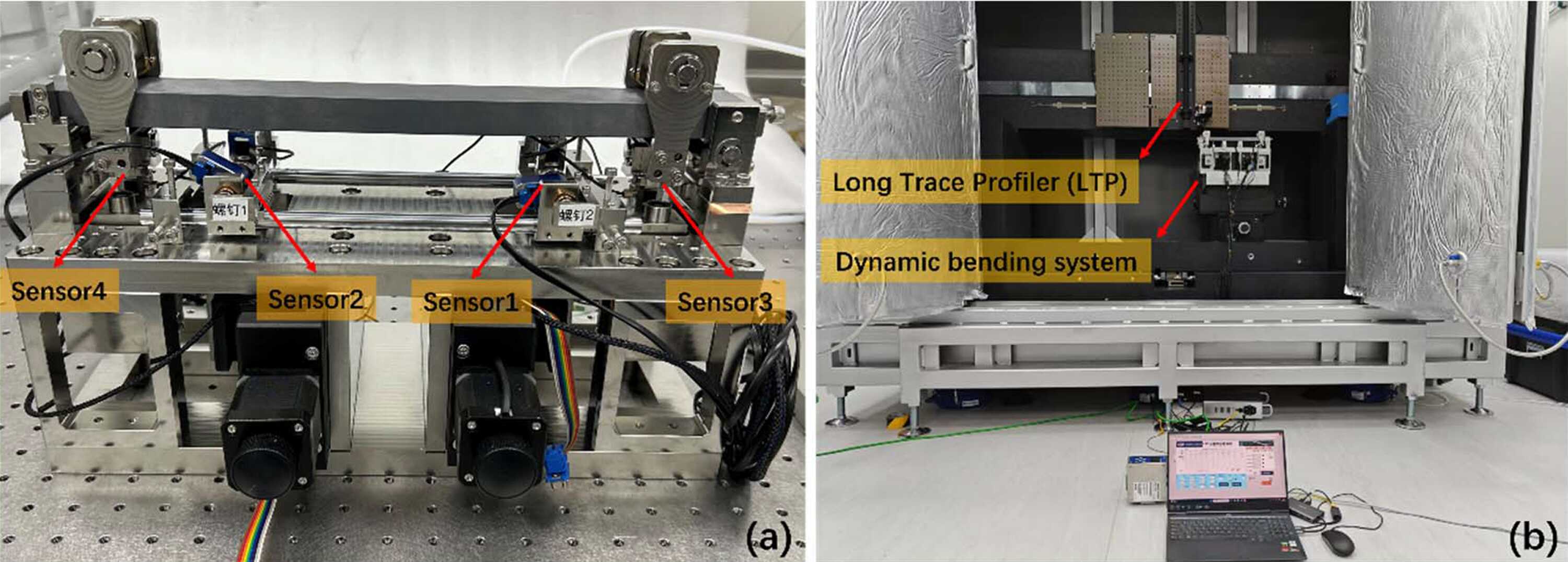

Prototype and measurement setup of the bendable mirror system. (a) Fabricated mechanical assembly with the mirror substrate installed in the holder and the locations of the four force sensors indicated. (b) Surface metrology of the bending system using an LTP in a cleanroom environment.
