From analytical to data-driven: multi-method optimization of a bendable mirror system for dynamic focusing

Sun, B.; Wen, Z.; Zhu, Q.; Luo, J.; Xu, T.; Zhu, L.; Liang, Y.; Sun, J.; Li, Z.; Xia, S.; Xu, Z.; Wu, M.; Li, Q.; Zhang, W.; Yang, X.

doi:10.1107/S1600577526009422

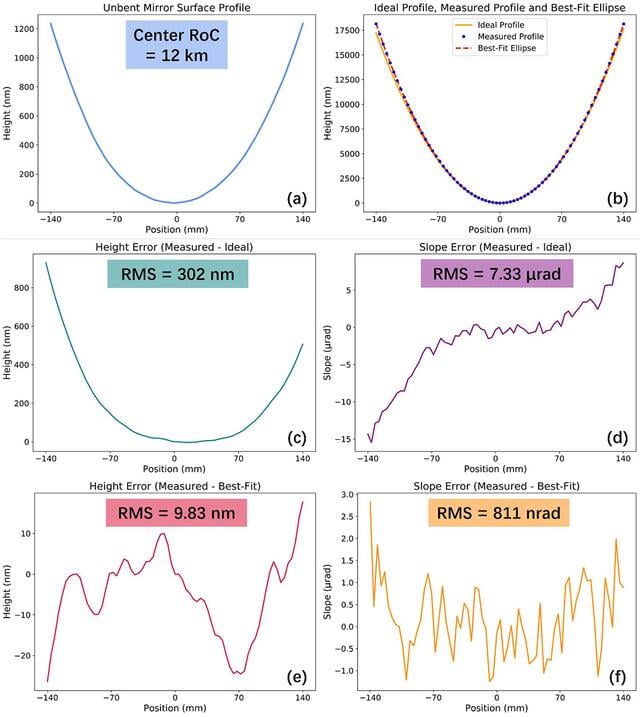

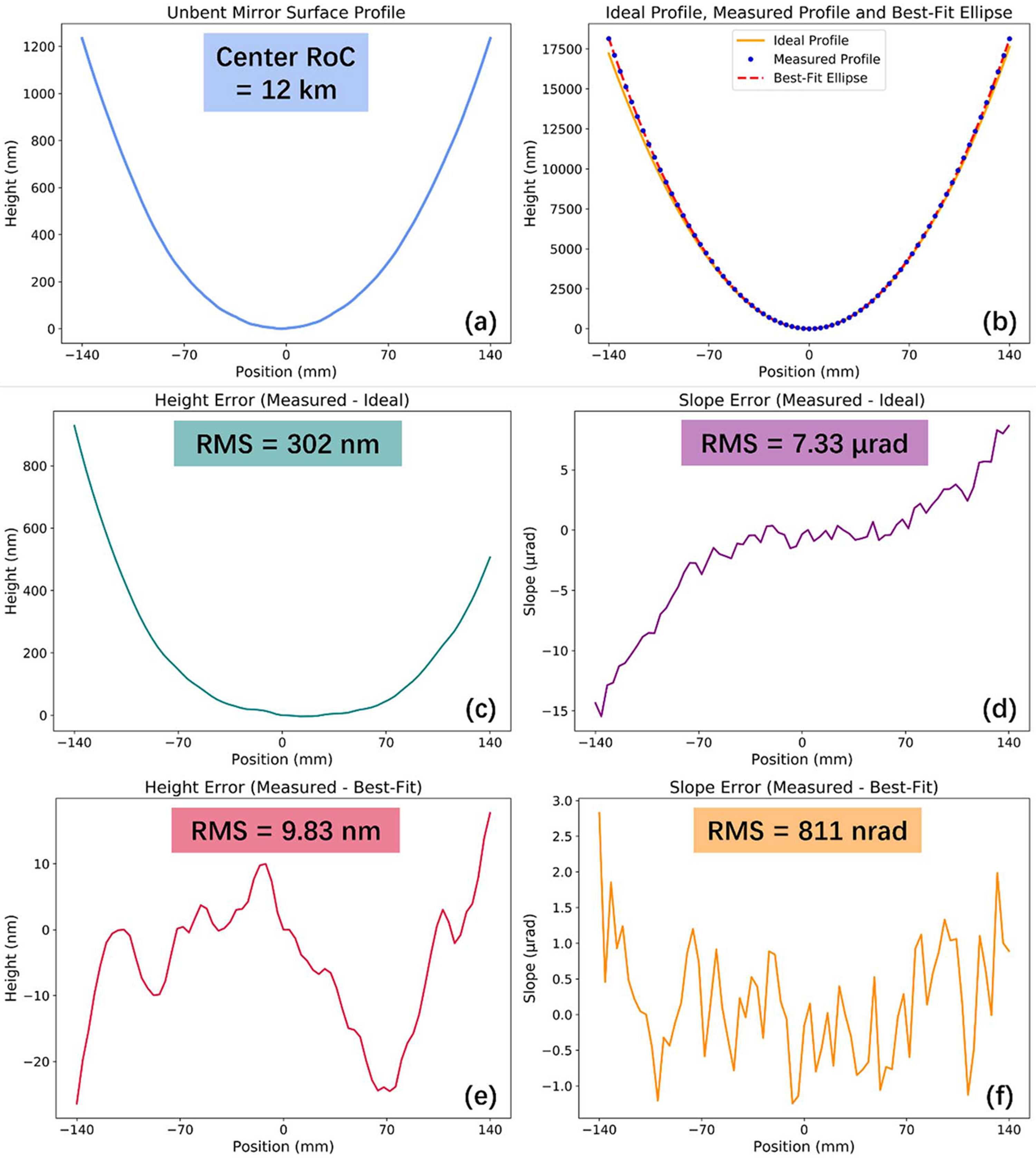

Figure 5
LTP measurements of the mirror surface. (a) Unbent mirror under gravity. (b) Measured surface profile under the experimental configuration, compared with the ideal profile and the best-fit ellipse. (c) Height error of the measured profile with respect to the ideal profile. (d) Slope error of the measured profile with respect to the ideal profile. (e) Height error of the measured profile with respect to the best-fit ellipse. (f) Slope error of the measured profile with respect to the best-fit ellipse.
