From analytical to data-driven: multi-method optimization of a bendable mirror system for dynamic focusing

Sun, B.; Wen, Z.; Zhu, Q.; Luo, J.; Xu, T.; Zhu, L.; Liang, Y.; Sun, J.; Li, Z.; Xia, S.; Xu, Z.; Wu, M.; Li, Q.; Zhang, W.; Yang, X.

doi:10.1107/S1600577526009422

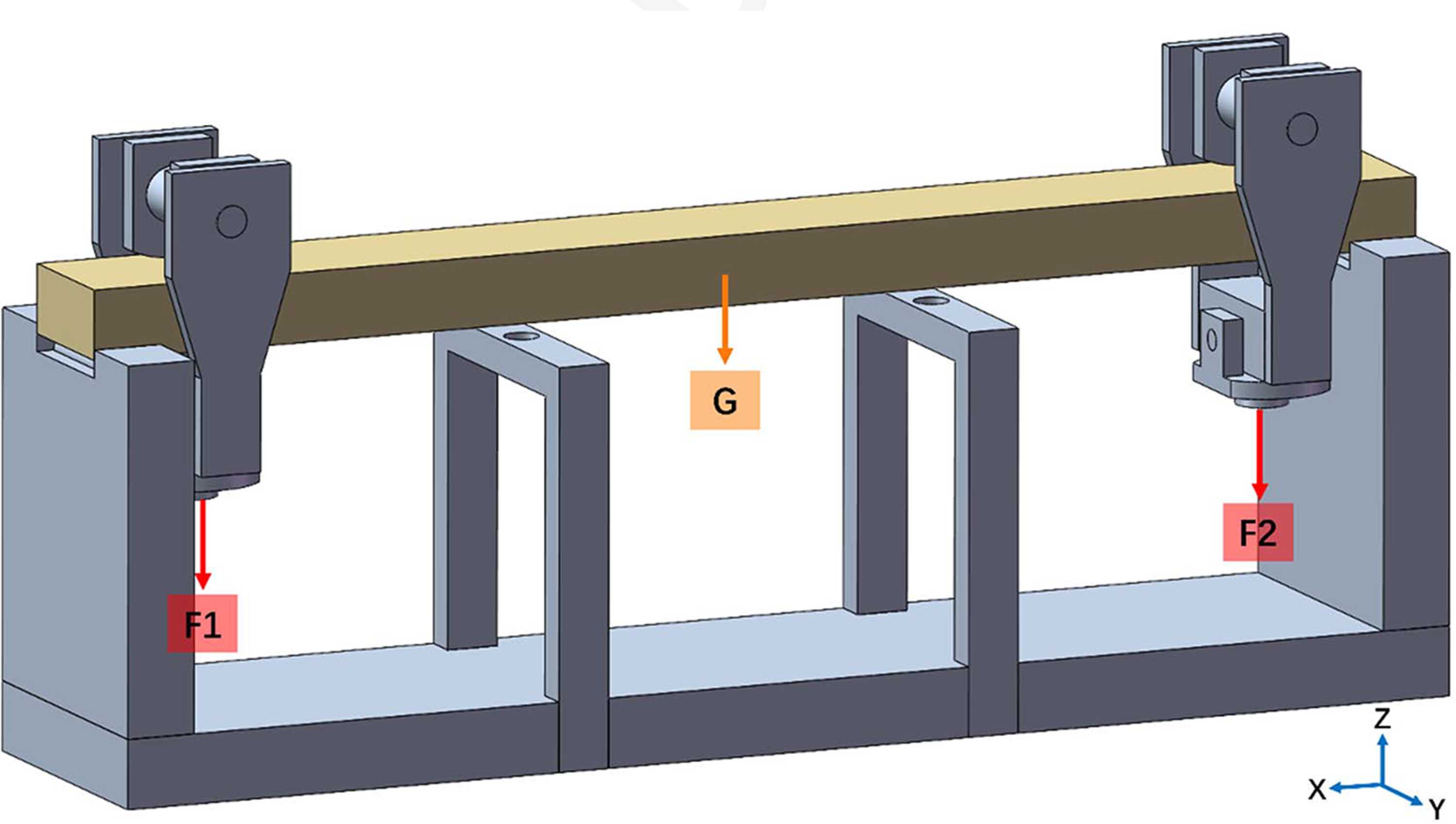

Figure 8
Simplified finite element model of the bending mechanism. End forces are applied at both ends of the mirror, and standard earth gravity is included in all model components.
