DanMAX – a beamline for materials science using powder X-ray diffraction, total scattering, and full-field tomographic imaging

Jørgensen, M.R.V.; Kantor, I.; Gjørup, F.H.; Sørensen, D.R.; Christensen, T.E.K.; Vasavan, H.N.; Panahifar, A.; Forcat, S.; Knudsen, E.B.; Alcocer, M.J.P.; Engelmann, F.; Enquist, H.; Iversen, B.B.; Li, Y.; Poulsen, H.F.; Sondhauss, P.; Tarawneh, H.; Weninger, C.

doi:10.1107/S1600577526009471

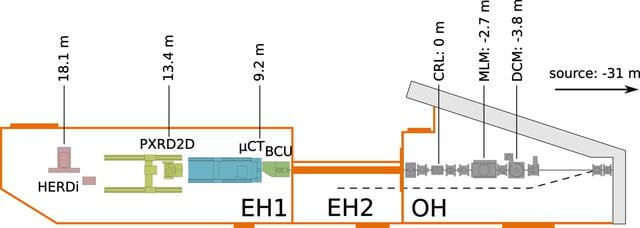

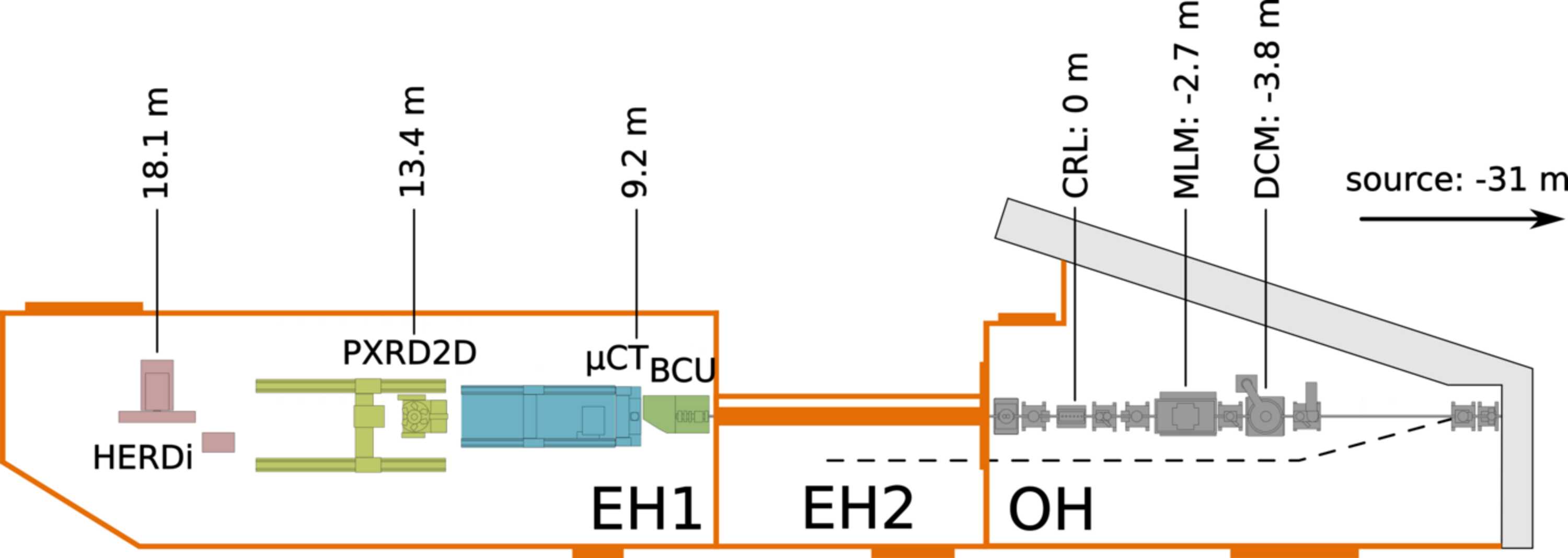

Figure 1
Beamline layout. DCM is a double crystal Si(111) monochromator, and MLM is the multilayer monochromator. OH is the optical hutch, EH1 is the main DanMAX experimental hutch. EH2 is a SINCRYS side-branch beamline (dashed line, under construction). Distances from the CRL transfocator (center of the undulator) are shown for straightforward calculation of demagnification at the three instruments. BCU – beam conditioning unit; µCT – micro-CT imaging instrument; PXRD2D – an area detector powder X-ray diffraction instrument; HERDi – a high resolution PXRD instrument (under construction).
