DanMAX – a beamline for materials science using powder X-ray diffraction, total scattering, and full-field tomographic imaging

Jørgensen, M.R.V.; Kantor, I.; Gjørup, F.H.; Sørensen, D.R.; Christensen, T.E.K.; Vasavan, H.N.; Panahifar, A.; Forcat, S.; Knudsen, E.B.; Alcocer, M.J.P.; Engelmann, F.; Enquist, H.; Iversen, B.B.; Li, Y.; Poulsen, H.F.; Sondhauss, P.; Tarawneh, H.; Weninger, C.

doi:10.1107/S1600577526009471

Figure 10

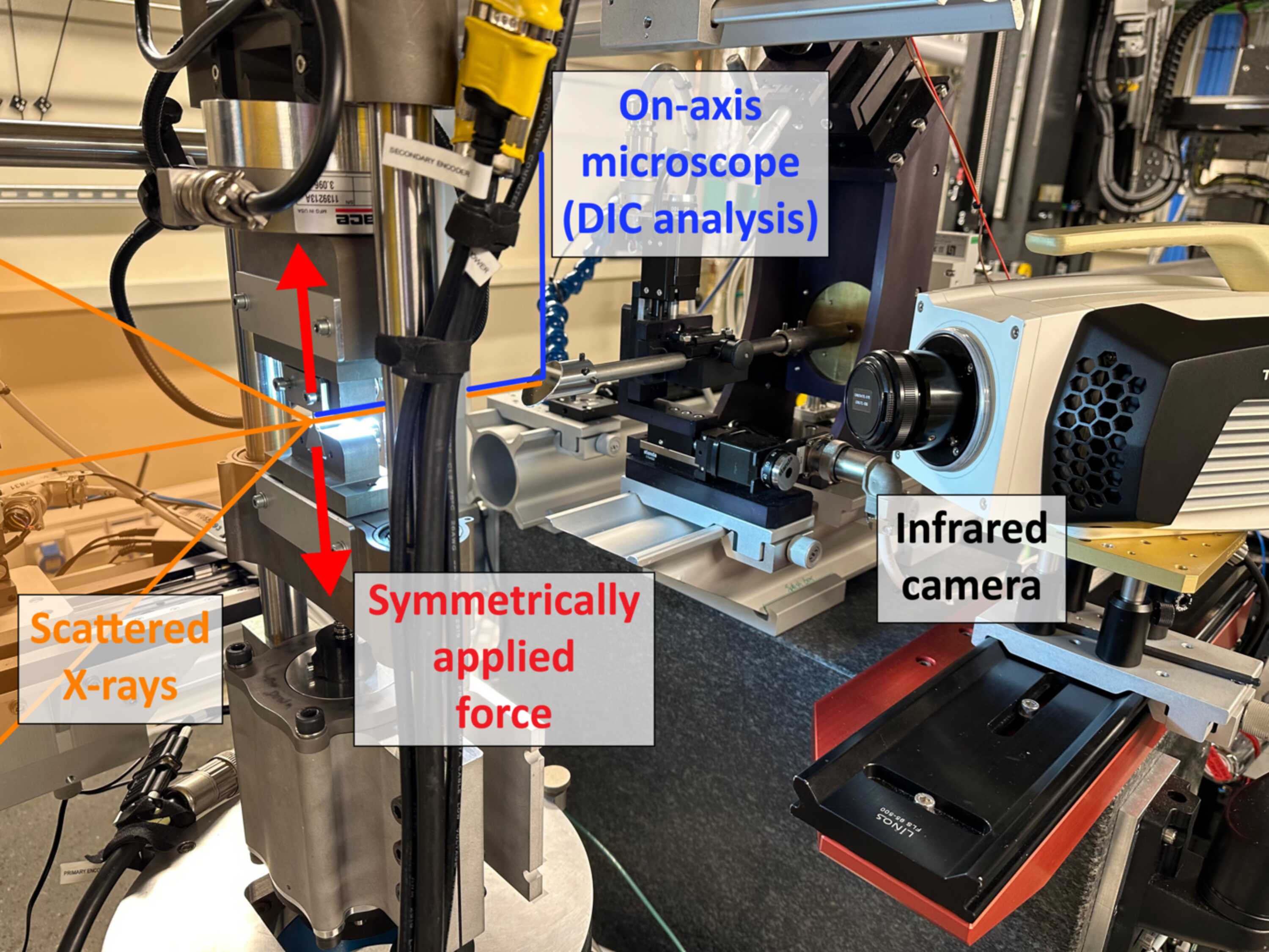

Photograph showing the experimental setup on the PXRD2D instrument. The tensile testing rig pulls the sample in the vertical direction with symmetric motion of the jaws (red arrows). The X-ray beam (orange line) propagates from right to left. Optical images are collected with an on-axis microscope (blue lines), and infrared images are recorded with an off-axis IR camera.
