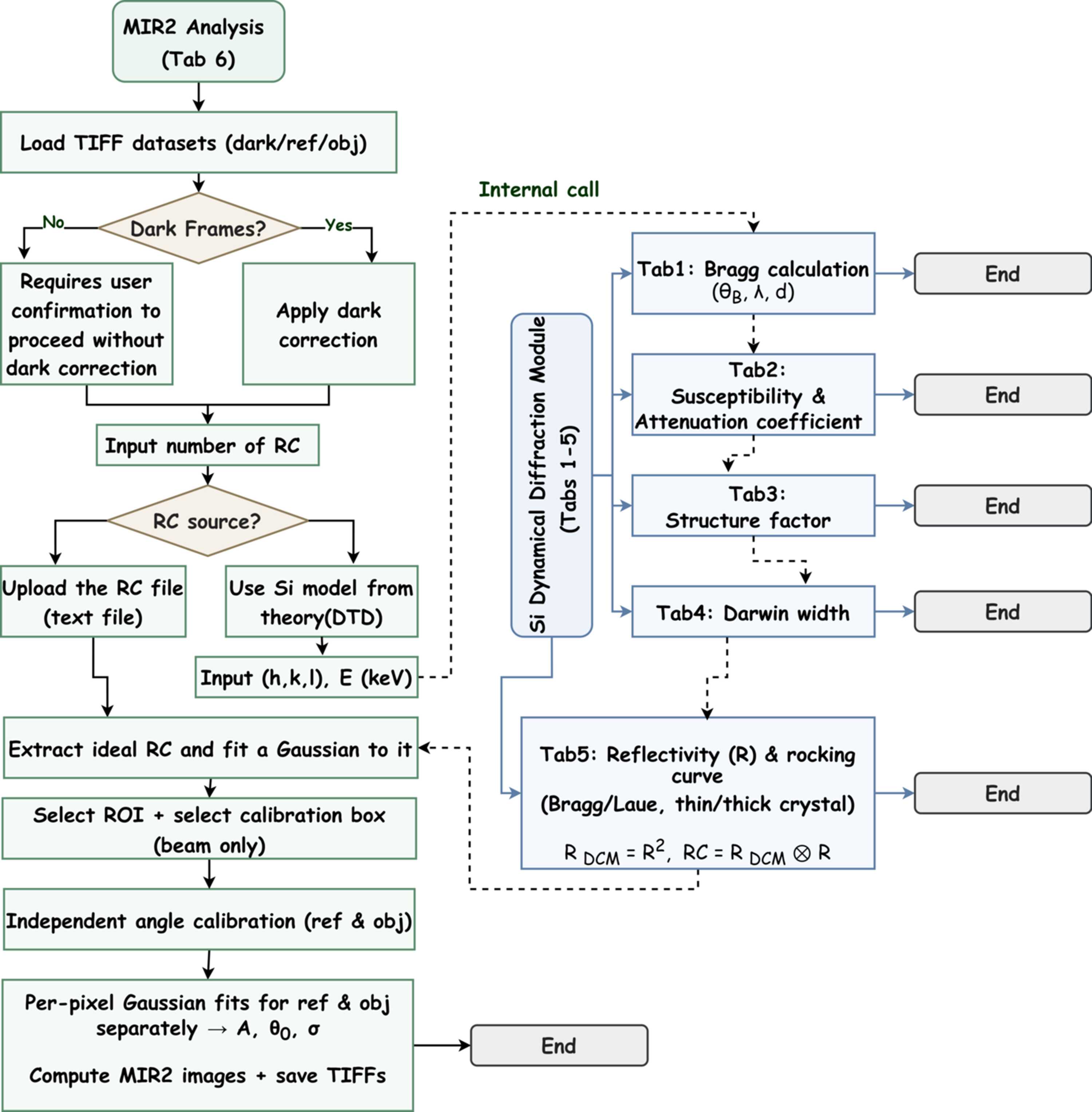

Figure 1

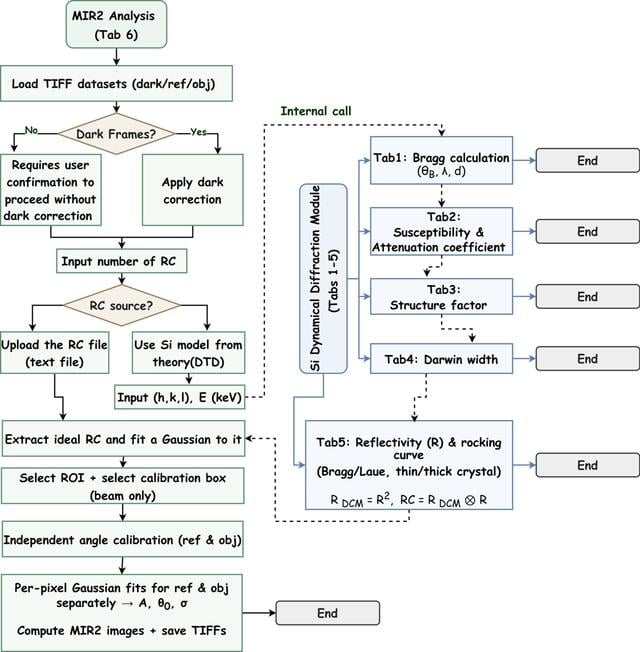

Logical workflow and module organization of the MIR2-Toolkit. The main analysis path begins in the MIR2 Analysis tab with loading TIFF datasets, optional dark correction, rocking-curve selection, ROI and calibration-box selection, independent angular calibration of reference and object datasets, and pixel-wise Gaussian fitting to retrieve A, θ0, and σ. The complementary silicon diffraction module (right branch; tabs 1–5) provides Bragg-angle calculation, susceptibility and attenuation evaluation, structure-factor computation, Darwin-width determination, and reflectivity/rocking-curve modeling. When the silicon model is selected as the rocking-curve source within the MIR2 tab, these calculations are invoked internally, and the user is not required to navigate through the diffraction tabs during MIR2 analysis.
