Figure 4

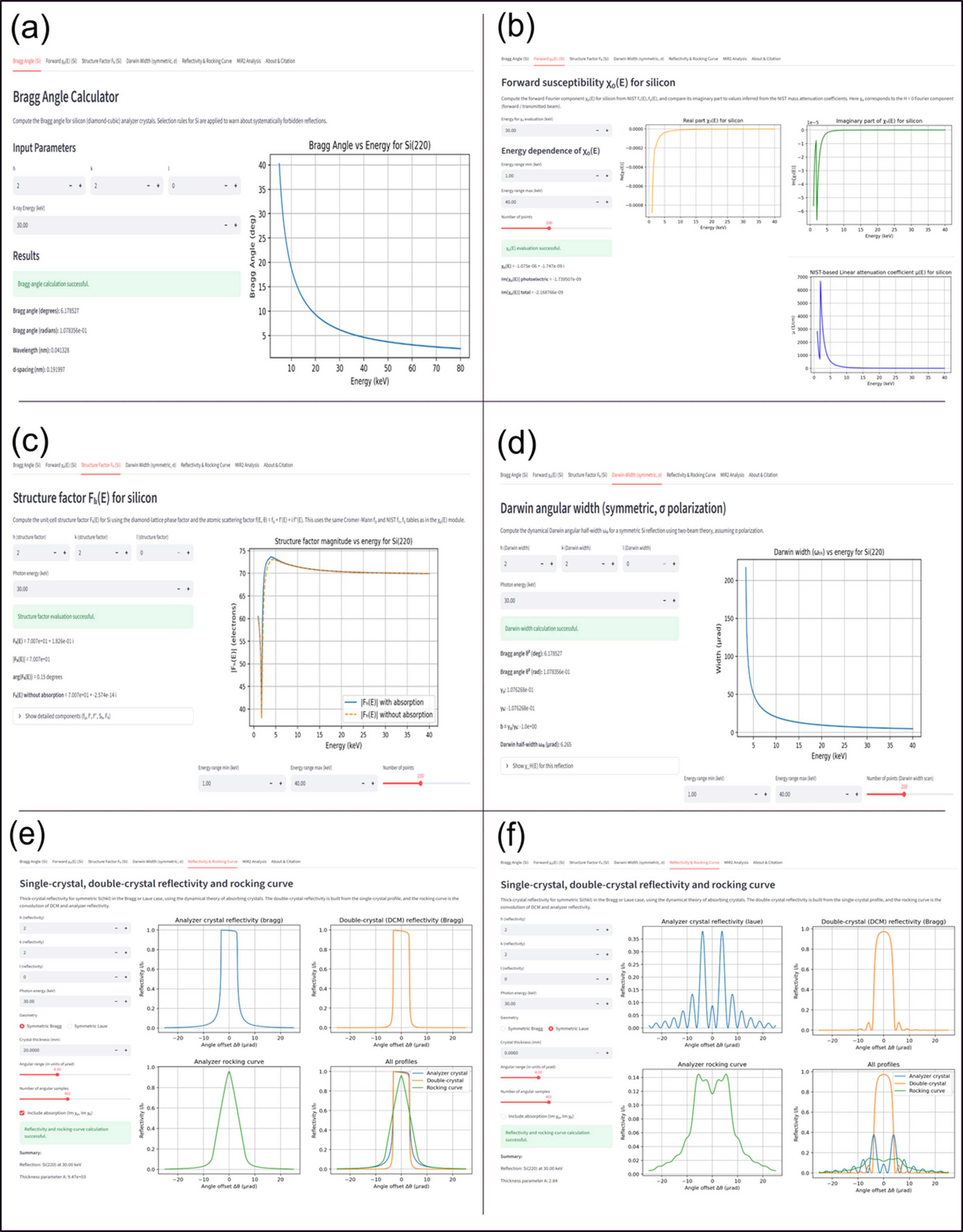

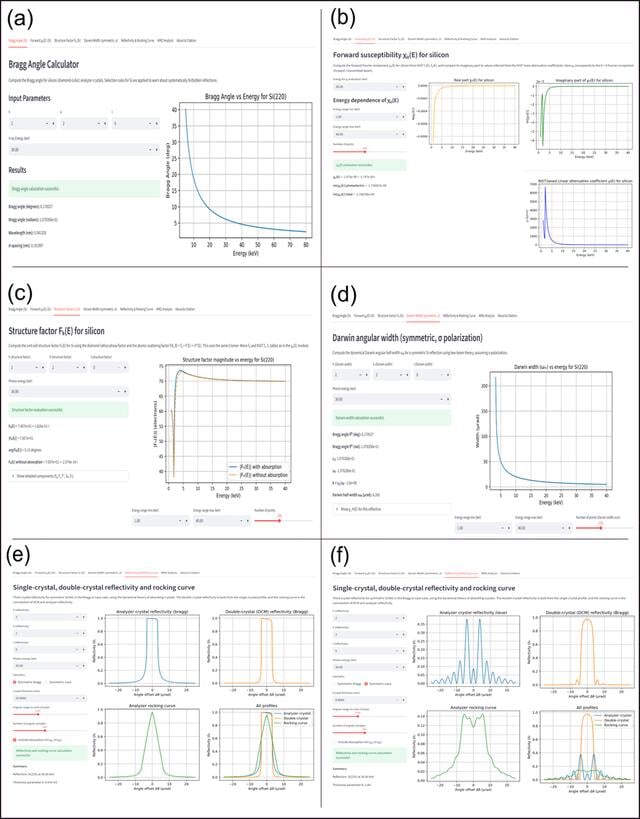

Graphical interface of the complementary silicon diffraction modules (tabs 1–5). The modules provide calculation and visualization of (a) Bragg angle, (b) forward susceptibility, (c) structure factor, (d) Darwin width, and reflectivity and rocking-curve response for selected silicon reflections and geometries. Panels (e) and (f) present reflectivity calculations for symmetric Bragg and symmetric Laue geometries. In panel (e), absorption is included; in panel (f), the corresponding reflectivity is shown without absorption.
