Mirror alignment by particle swarm optimization for synchrotron radiation beamlines

Okumura, B.; Goto, K.; Fujii, A.; Nonaka, T.; Shimizu, T.; Ohama, Y.

doi:10.1107/S1600577526008994

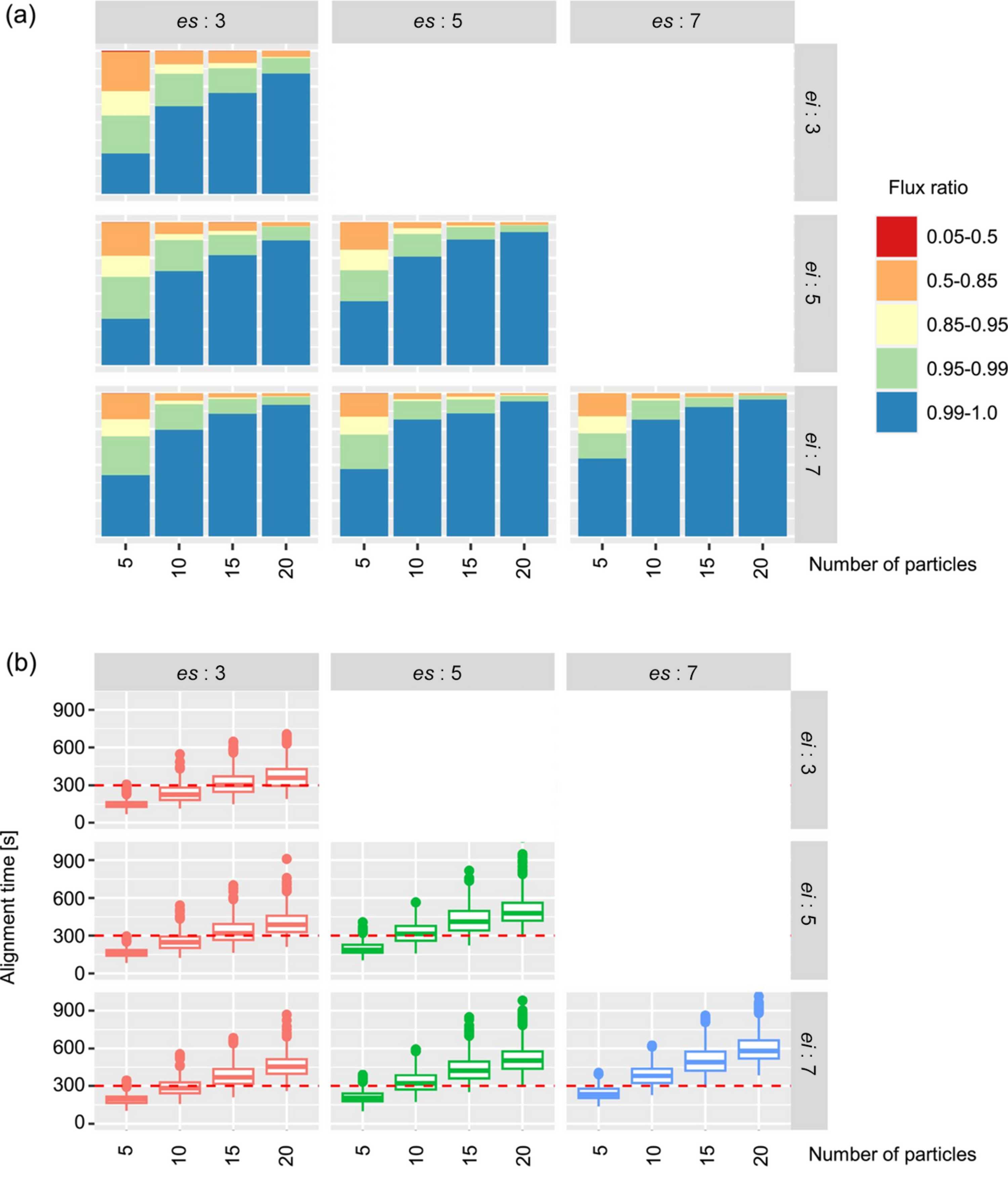

Figure 11
Comparison of alignment time and flux ratio as functions of the ES parameters (es and ei) and N. (a) Distribution of the beam-flux ratio relative to the maximum beam flux. (b) Distribution of the alignment time.
