Figure 12

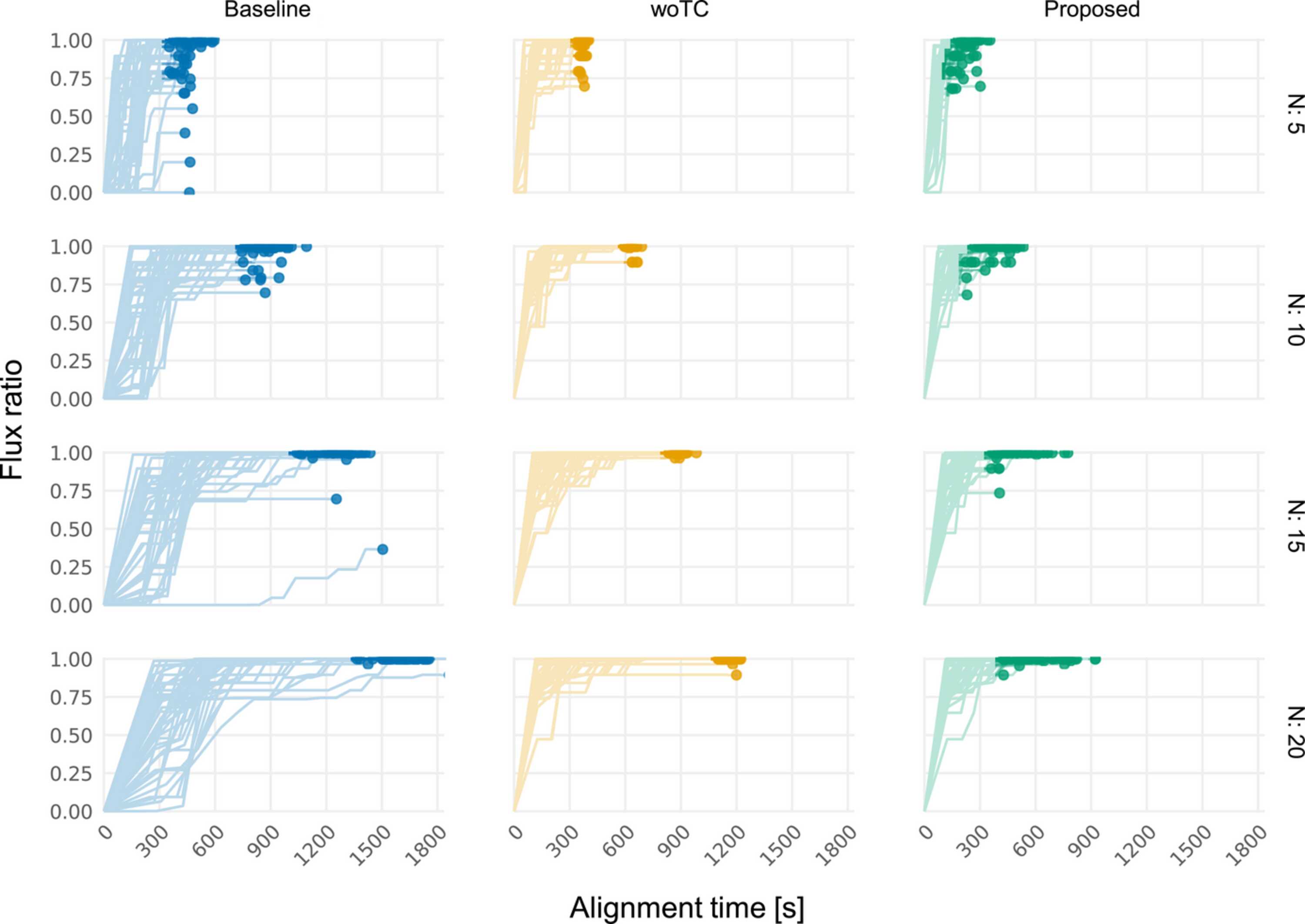

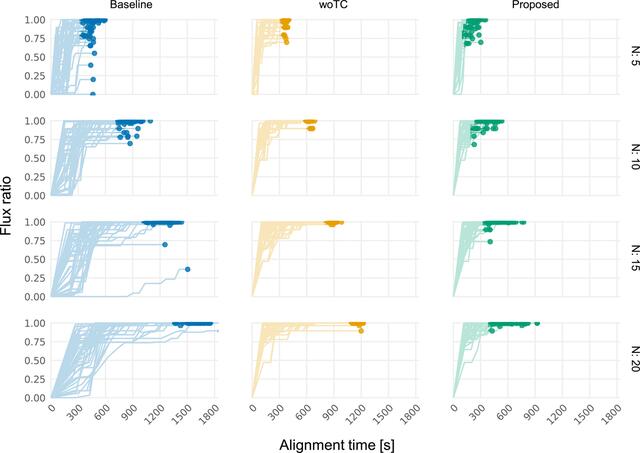

Convergence trajectories of the flux ratio as a function of the alignment time for the Baseline, woTC, and Proposed configurations. The columns correspond to the three configurations, and the rows correspond to swarm sizes N = 5, 10, 15, and 20. Each curve represents one of 50 randomly selected simulation trials (out of the 1000 trials reported in Section 4.1[link]), and the marker indicates the termination point.
