Figure 5

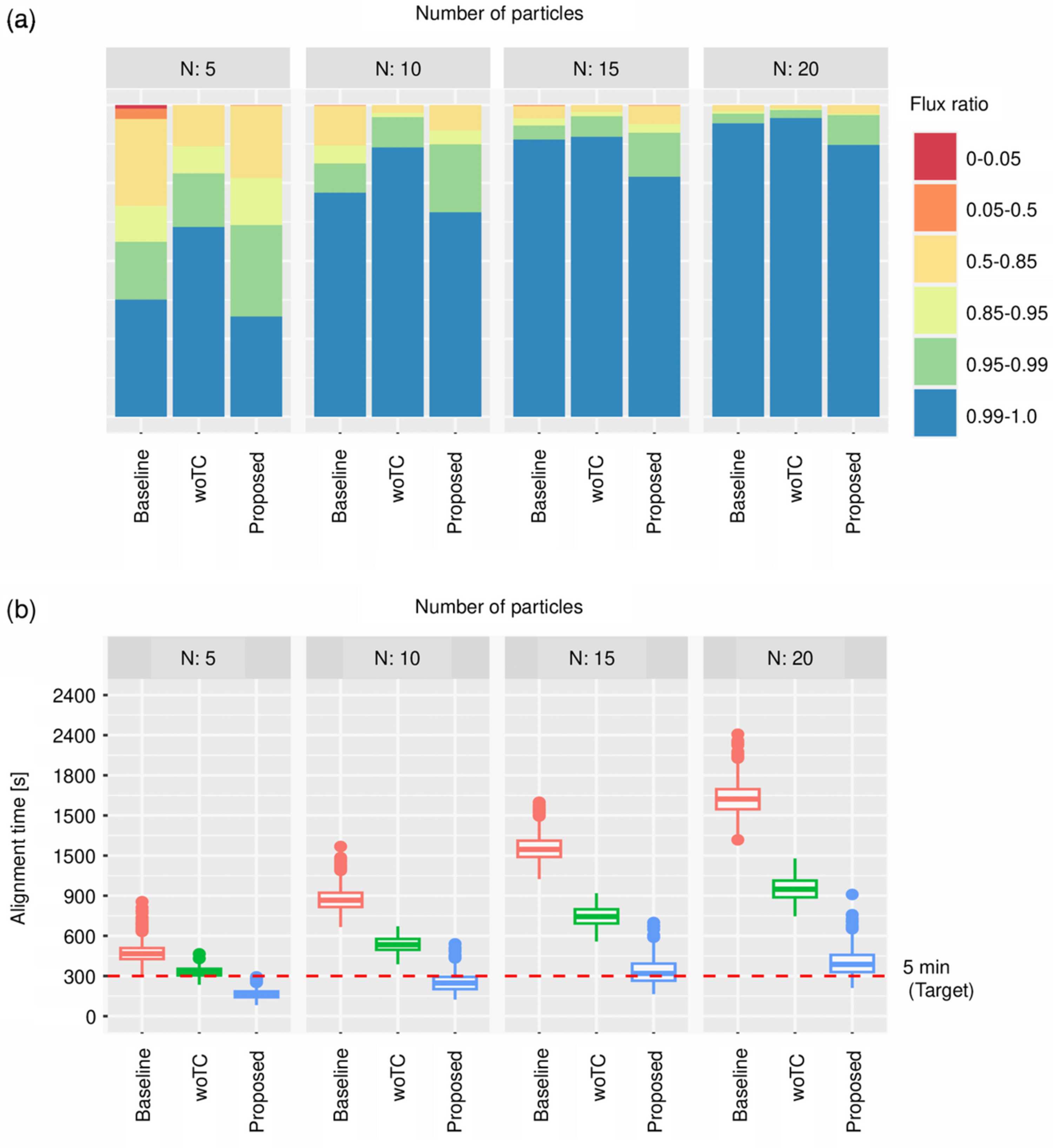

Comparison of the alignment times and beam-flux ratios across different N values in Baseline, woTC and Proposed. Panel (a) compares the distributions of beam-flux ratios, whereas panel (b) compares the distributions of alignment times. The red dashed line in (b) indicates the target alignment time of 5 min.
