Mirror alignment by particle swarm optimization for synchrotron radiation beamlines

Okumura, B.; Goto, K.; Fujii, A.; Nonaka, T.; Shimizu, T.; Ohama, Y.

doi:10.1107/S1600577526008994

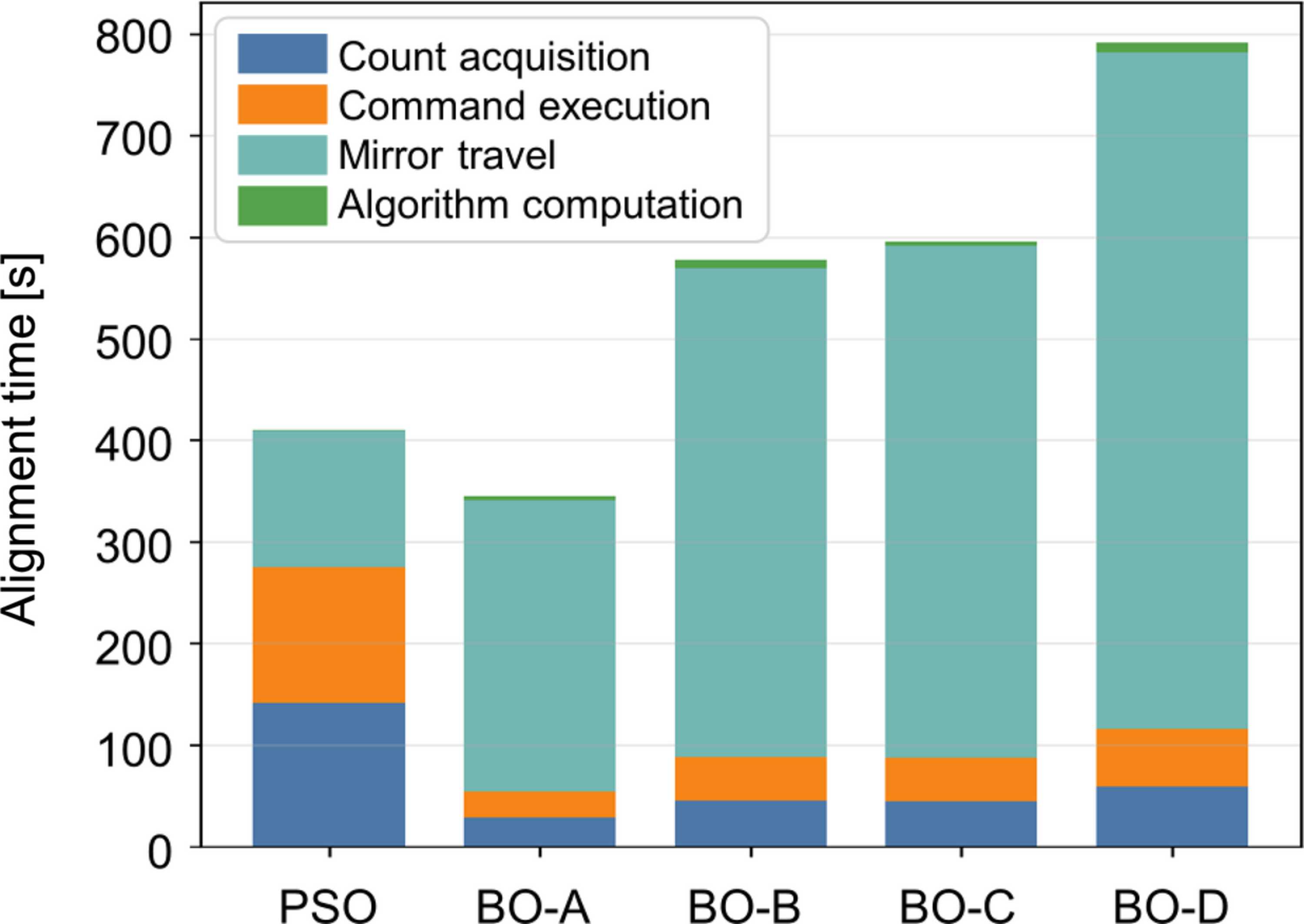

Figure 7
Breakdown of the estimated mean alignment time for PSO and each evaluated GP–BO configuration. Each stacked bar represents the mean duration of each time component over 100 independent simulation trials.
