Design and testing of a compact triple differential pumping chamber for gas attenuators

Zhang, H.; Li, L.; Lin, H.; Liu, Y.; Wei, W.; Liu, X.; Zhao, F.; Li, Q.; Zhang, W.

doi:10.1107/S1600577526009033

Figure 10

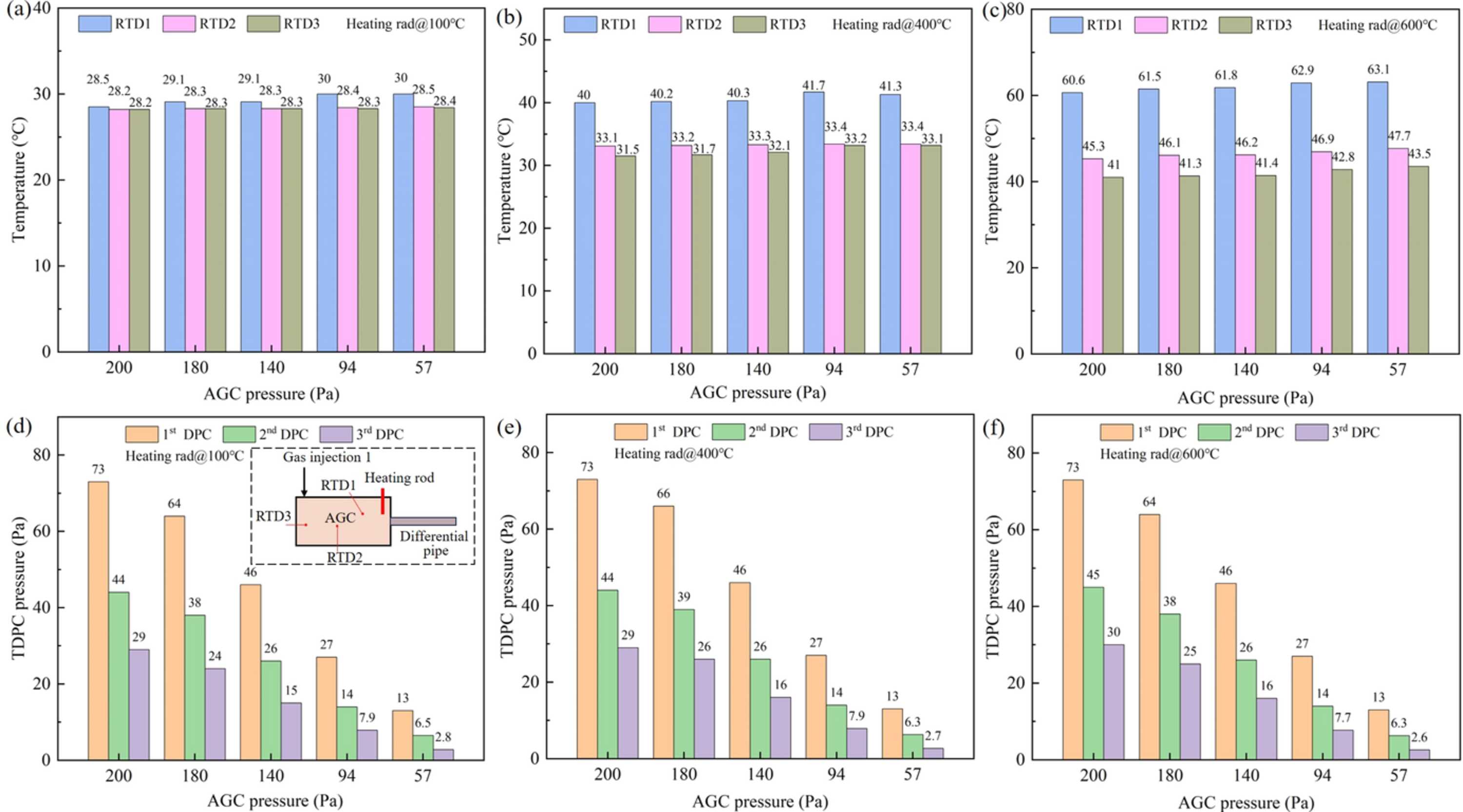

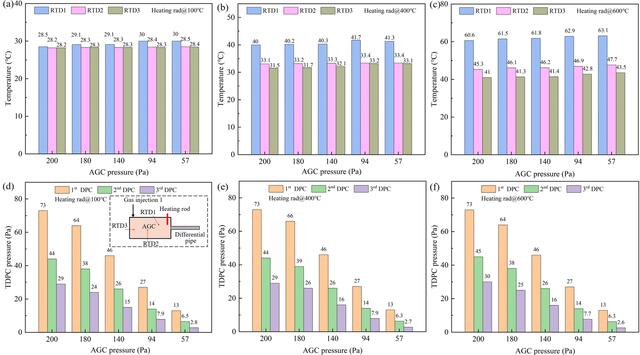

Temperature of the RTDs on the AGC and the pressure distribution of the TDPC and with different heating temperatures: temperature of the RTDs at heating temperature of (a) 100°C, (b) 400°C and (c) 600°C; pressure distribution of the TDPC at heating temperature of (d) 100°C, (e) 400°C and (f) 600°C.
