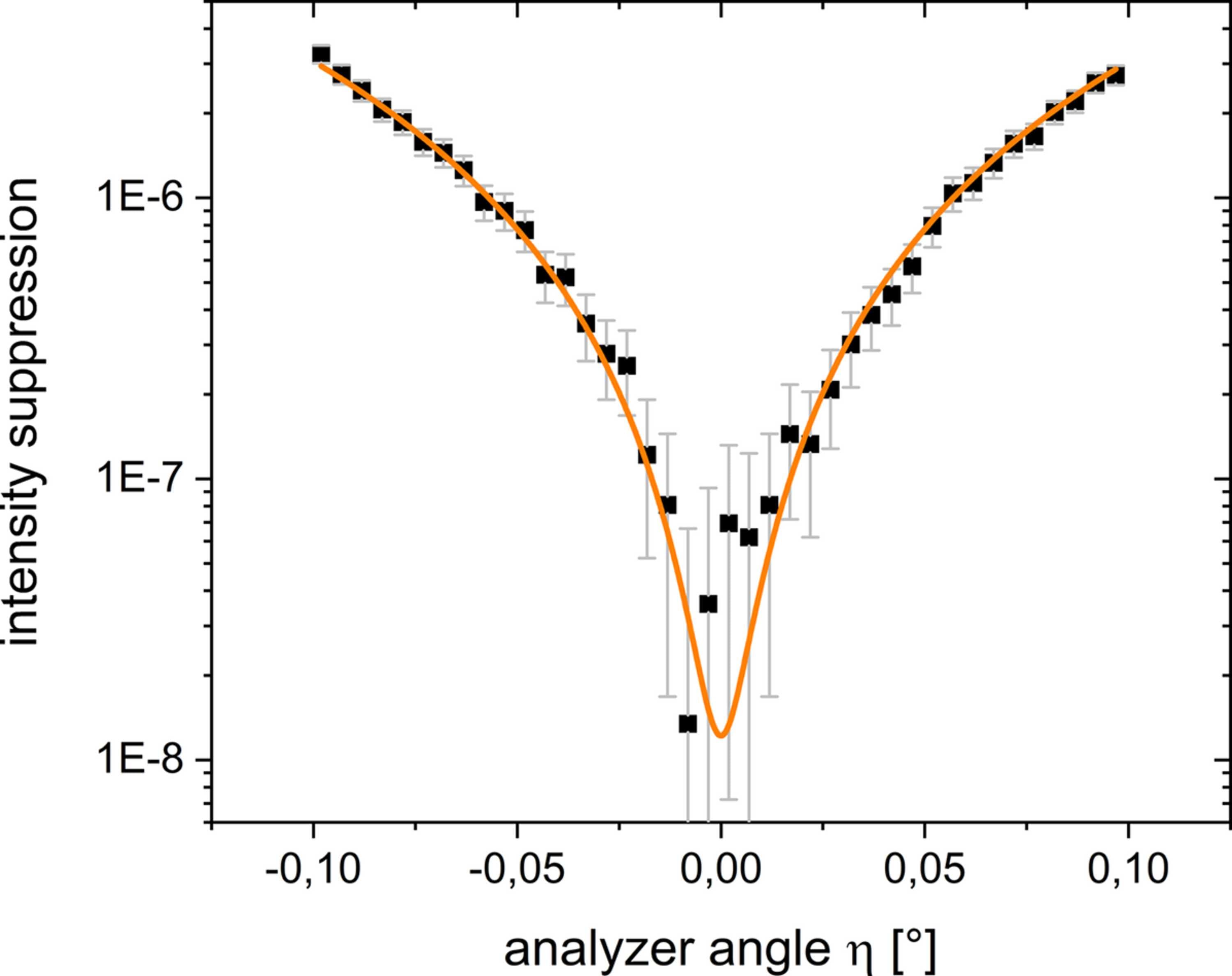

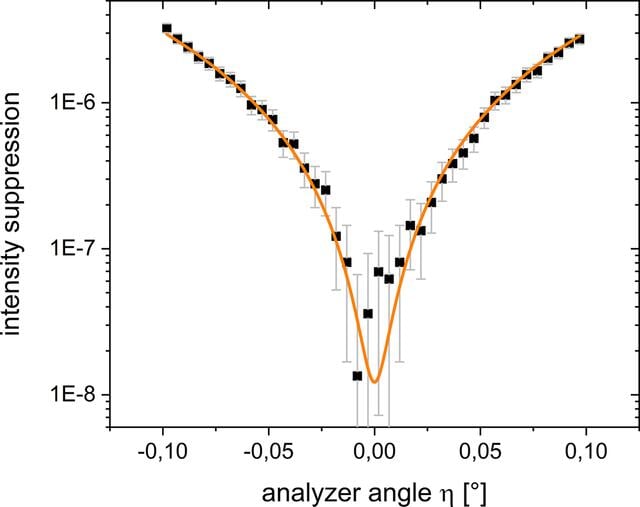

Figure 4
Measurement of the polarization purity for four-reflection Si (5 7 11) channel-cuts at a photon energy of 22.494 keV. The orange solid line corresponds to a fit with second-order polynomial. The vertical error bars represent the statistical uncertainties of the data points and the background measurement, assuming Poisson statistics with a 95% confidence level. |
