Figure 3

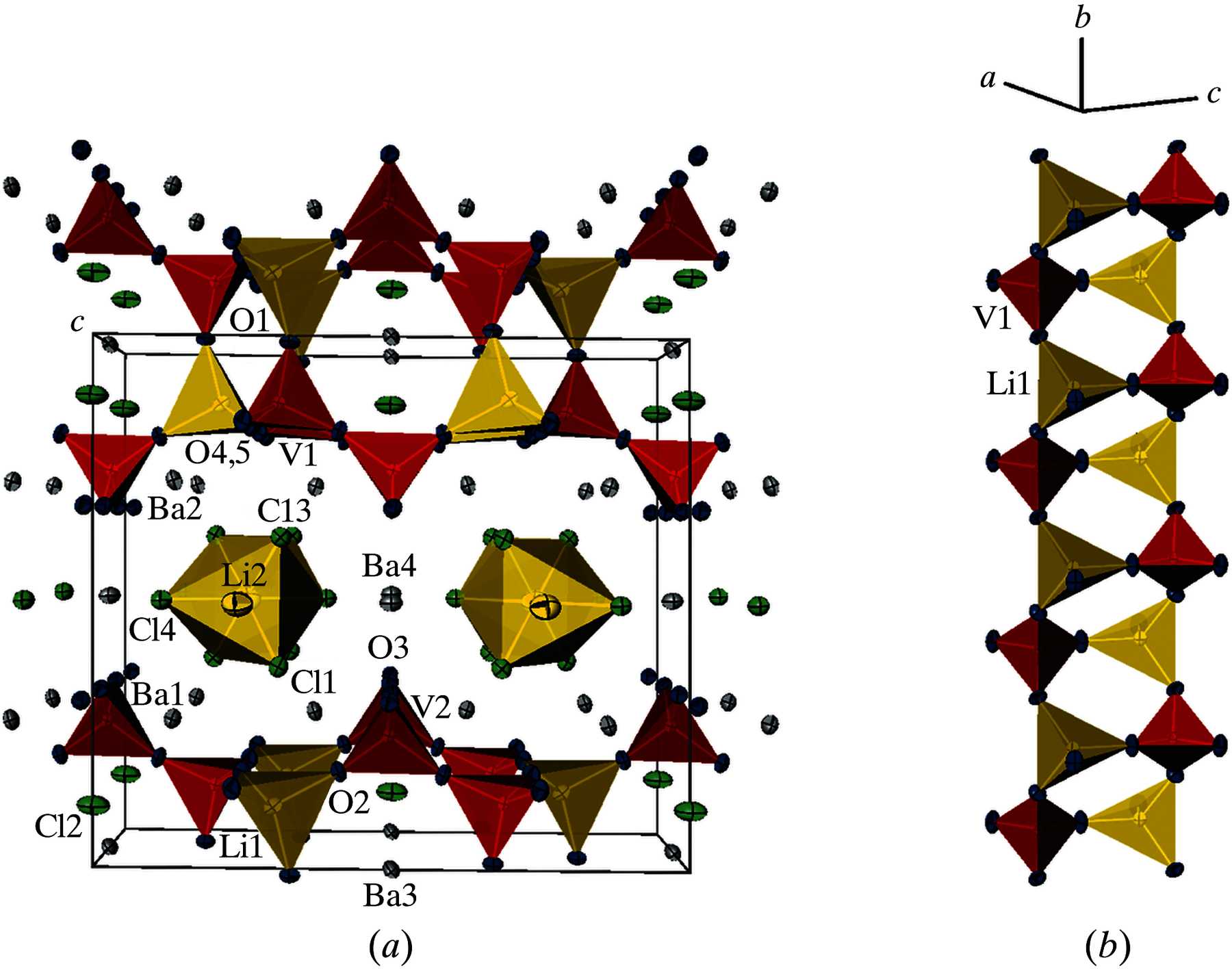

(a) A perspective polyhedral representation of the crystal structure of Ba3Li2V2O7Cl4, projected on to the ac plane. Displacement ellipsoids are drawn at the 80% probability level. (b) A view of the puckered chains of four-tetrahedron Li2V2O12 rings parallel to b. |
