Diamond compound refractive lenses for high-energy dark field X-ray microscopy

Staeck, S.; Yildirim, C.; Seiboth, F.; Manning, T.; Roth, T.; Stinville, J.C.; Detlefs, C.

doi:10.1107/S1600577526009859

Figure 6

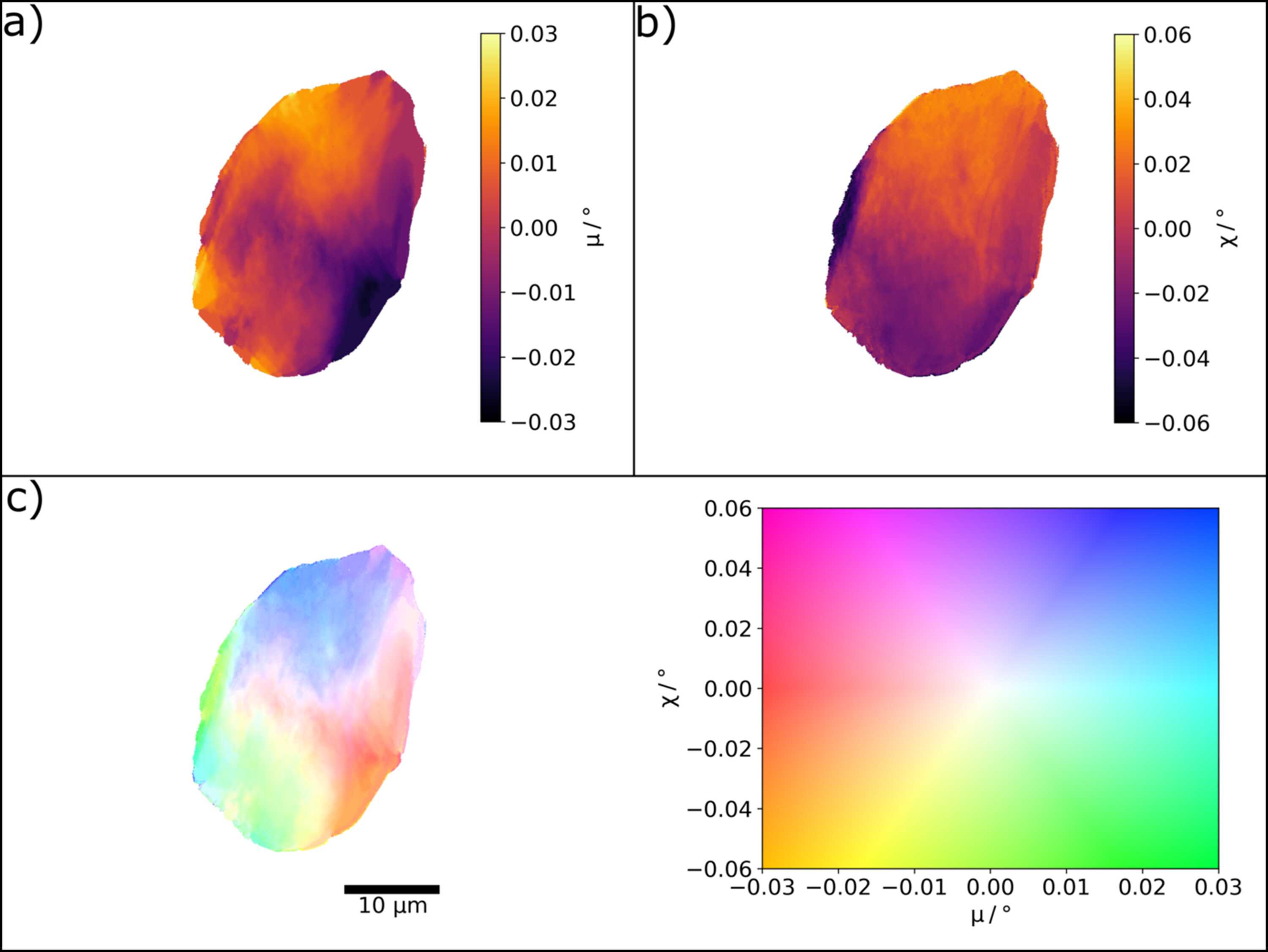

Grain 2 of the recrystallized iron sample imaged with the diamond lenses at 33 keV. (a) Rocking angle μ at maximum intensity for each pixel. (b) Rolling angle χ at maximum intensity for each pixel. (c) Combined intragranular misorientation map referenced to the center of the μ and χ rocking curves. The colormap and scale bar are indicated.
