Construction and performance of the millisecond-to-second QXAFS platform at SSRF BL11B for in situ dynamic characterization

Chen, Y.; Li, Y.; Gao, Q.; Gan, T.; Zhang, S.; Li, J.

doi:10.1107/S1600577526009781

Figure 11

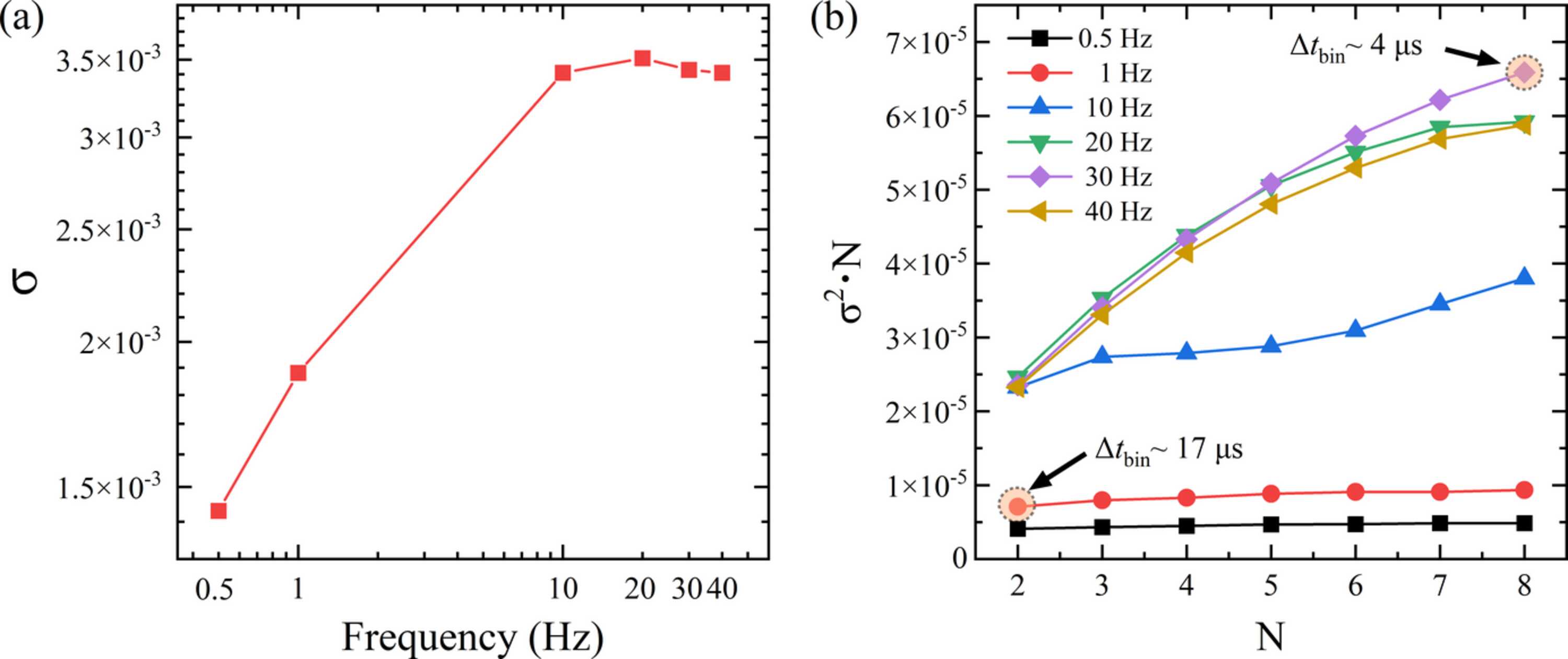

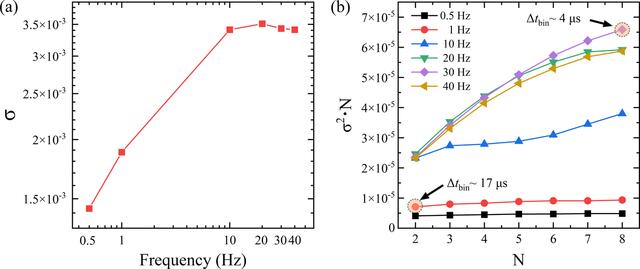

Quantitative noise evaluation and statistical independence analysis of the QXAFS platform. (a) Pre-edge residual noise (σ) as a function of oscillation frequency. (b) Scaled variance (σ²N) versus bin-merging factor (N). The upward deviation from independent statistical behaviour at high frequencies (≥10 Hz) quantitatively indicates increasing correlation between neighbouring data points. Annotated points (Δt_bin) contrast the near-statistical regime at low frequency (1 Hz) with increased covariance at high frequency (30 Hz), which is mainly associated with the finite temporal response of the detector–amplifier–readout chain: when the effective bin interval becomes too short, signals from adjacent bins partially overlap and lose statistical independence.
