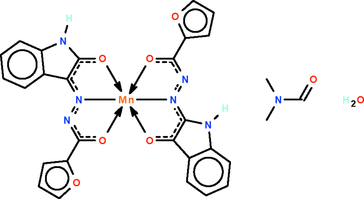

ci5164 scheme

Acta Cryst. (2010). E66, m1439    [ doi:10.1107/S1600536810039516 ]

Bis[N'-(2-oxo-1H-indol-3-ylidene)furan-2-carbohydrazidato-[kappa]3O,N',O']manganese(II) N,N-dimethylformide monosolvate monohydrate

S. N. Abdul Halim, H. M. Ali and S. W. Ng

Abstract top

In the title compound, [Mn(C13H8N3O3)2]·C3H7NO·H2O, the metal atom is O,N,O'-chelated by two deprotonated Schiff bases and exists in a distorted octahedral geometry. The N-H groups, the carbonyl group of the DMF molecule and the uncoordinated water molecule engage in N-H...O and O-H...O hydrogen-bonding interactions, generating a hydrogen-bonded ribbon that propagates along [110].

Comment top

Divalent cobalt, nickel, copper and zinc derivatives of Schiff base condensation product of isatin and 2-furoic acid hydrazide have been synthesized, and these are reported along with the crystal structure of the Schiff base (Rodríguez-Argüelles et al., 2009). If the deprotonated Schiff base is to chelate in a terdentate manner, the anion has to rotate about the nitrogen-nitrogen bond. Such a rotation is observed in the manganese derivative, which crystallizes from DMF as a monohydrated monosolvate (Scheme I). The divalent metal atom is O,N,O'-chelated by two deprotonated Schiff base in an octahedral geometry (Fig. 1). The amino group, the carbonyl group of the DMF and the lattice water molecule engage in N—H···O and O—H···O hydrogen bonding interactions to generate a hydrogen-bonded ribbon that propagates along [110].

Related literature top

For the crystal structure of the uncoordinated Schiff base ligand, see: Rodríguez-Argüelles et al. (2009).

Experimental top

The Schiff base was synthesized by condensing isatin and furoylhydrazine according to a literature procedure (Rodríguez-Argüelles et al., 2009). Manganese acetate (1 mmol) and the Schiff base (2 mmol) were heated in ethanol (100 ml) for 5 h; several drops of triethylamine were added. The solvent was removed and the product purified by recrystallization from DMF.

Refinement top

The amino and water H-atoms were located in a difference Fourier map, and were refined with a distance restraint of N–H/O–H = 0.85 (1) Å; their Uiso parameters were freely refined. Carbon-bound H-atoms were placed in calculated positions (C–H = 0.93–0.96 Å) and were included in the refinement in the riding model approximation, with Uiso(H) set to 1.2-1.5Ueq(C). The highest peak and deepest hole in the final difference map are located 0.65 Å from Mn1 and 0.57 Å from H28A, respectively.

Computing details top

Data collection: SMART (Bruker, 2001); cell refinement: SAINT (Bruker, 2001); data reduction: SAINT (Bruker, 2001); program(s) used to solve structure: SHELXS97 (Sheldrick, 2008); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008); molecular graphics: X-SEED (Barbour, 2001); software used to prepare material for publication: publCIF (Westrip, 2010).

Figures top
[Figure 1] Fig. 1. The asymmetric unit of the title compound. Displacement ellipsoids are drawn at the 50% probability level. H atoms are shown as spheres of arbitrary radius.
Bis[N'-(2-oxo-1H-indol-3-ylidene)furan-2-carbohydrazidato- κ3O,N',O']manganese(II) N,N-dimethylformide monosolvate monohydrate top
Crystal data top
[Mn(C13H8N3O3)2]·C3H7NO·H2OZ = 2
Mr = 654.50F(000) = 674
Triclinic, P1Dx = 1.515 Mg m−3
Hall symbol: -P 1Mo Kα radiation, λ = 0.71073 Å
a = 11.4833 (7) ÅCell parameters from 4583 reflections
b = 11.5599 (7) Åθ = 2.2–26.7°
c = 13.1619 (8) ŵ = 0.53 mm−1
α = 107.580 (1)°T = 295 K
β = 97.800 (1)°Block, black
γ = 115.159 (1)°0.45 × 0.32 × 0.20 mm
V = 1435.21 (15) Å3
Data collection top
Bruker SMART area-detector
diffractometer		6180 independent reflections
Radiation source: fine-focus sealed tube4297 reflections with I > 2˘I)
graphiteRint = 0.019
ω scansθmax = 27.1°, θmin = 2.1°
Absorption correction: multi-scan
(SADABS; Sheldrick, 1996)		h = −14→14
Tmin = 0.798, Tmax = 0.902k = −14→14
12170 measured reflectionsl = −16→16
Refinement top
Refinement on F2Primary atom site location: structure-invariant direct methods
Least-squares matrix: fullSecondary atom site location: difference Fourier map
R[F2 > 2σ(F2)] = 0.041Hydrogen site location: inferred from neighbouring sites
wR(F2) = 0.126H atoms treated by a mixture of independent and constrained refinement
S = 0.95 w = 1/[σ2(Fo2) + (0.0671P)2 + 0.6988P]
where P = (Fo2 + 2Fc2)/3
6180 reflections(Δ/σ)max = 0.001
420 parametersΔρmax = 0.61 e Å−3
4 restraintsΔρmin = −0.26 e Å−3
Crystal data top
[Mn(C13H8N3O3)2]·C3H7NO·H2Oγ = 115.159 (1)°
Mr = 654.50V = 1435.21 (15) Å3
Triclinic, P1Z = 2
a = 11.4833 (7) ÅMo Kα radiation
b = 11.5599 (7) ŵ = 0.53 mm−1
c = 13.1619 (8) ÅT = 295 K
α = 107.580 (1)°0.45 × 0.32 × 0.20 mm
β = 97.800 (1)°
Data collection top
Bruker SMART area-detector
diffractometer		6180 independent reflections
Absorption correction: multi-scan
(SADABS; Sheldrick, 1996)		4297 reflections with I > 2˘I)
Tmin = 0.798, Tmax = 0.902Rint = 0.019
12170 measured reflectionsθmax = 27.1°
Refinement top
R[F2 > 2σ(F2)] = 0.041H atoms treated by a mixture of independent and constrained refinement
wR(F2) = 0.126Δρmax = 0.61 e Å−3
S = 0.95Δρmin = −0.26 e Å−3
6180 reflectionsAbsolute structure: ?
420 parametersFlack parameter: ?
4 restraintsRogers parameter: ?
Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2) top
xyzUiso*/Ueq
Mn10.48864 (4)0.33824 (4)0.74033 (3)0.03787 (13)
O10.8779 (2)0.7680 (2)0.9910 (2)0.0715 (6)
O20.66584 (18)0.5205 (2)0.84440 (17)0.0580 (5)
O30.26092 (19)0.2002 (2)0.67083 (16)0.0536 (5)
O40.5776 (2)0.0564 (2)0.90415 (16)0.0584 (5)
O50.51399 (19)0.21270 (19)0.81422 (15)0.0510 (5)
O60.4817 (2)0.4103 (2)0.59584 (16)0.0565 (5)
O70.2100 (4)0.2105 (4)0.3397 (3)0.1265 (12)
O1W0.1448 (3)0.0178 (3)0.4351 (2)0.0872 (8)
H1W10.168 (4)0.059 (4)0.5069 (9)0.105*
H1W20.153 (4)0.084 (3)0.413 (3)0.105*
N10.5167 (2)0.5882 (2)0.90994 (18)0.0448 (5)
N20.4257 (2)0.4610 (2)0.83192 (18)0.0429 (5)
N30.0846 (2)0.2401 (3)0.7046 (2)0.0530 (6)
H30.017 (2)0.1608 (18)0.660 (2)0.064*
N40.6060 (2)0.1576 (2)0.67171 (17)0.0406 (5)
N50.5641 (2)0.2372 (2)0.64017 (17)0.0406 (5)
N60.5591 (2)0.3727 (3)0.4406 (2)0.0527 (6)
H60.544 (3)0.430 (3)0.418 (2)0.063*
N70.1231 (3)0.3539 (4)0.3902 (3)0.0870 (10)
C10.9606 (4)0.8932 (4)1.0792 (3)0.0838 (11)
H11.05430.94061.09720.101*
C20.8913 (4)0.9391 (4)1.1360 (3)0.0743 (10)
H20.92611.02171.19890.089*
C30.7542 (3)0.8375 (3)1.0817 (2)0.0543 (7)
H3A0.68050.84011.10190.065*
C40.7501 (3)0.7363 (3)0.9952 (2)0.0473 (6)
C50.6409 (3)0.6055 (3)0.9102 (2)0.0425 (6)
C60.2148 (3)0.2725 (3)0.7204 (2)0.0456 (6)
C70.2962 (2)0.4144 (3)0.8083 (2)0.0421 (6)
C80.2058 (3)0.4627 (3)0.8430 (2)0.0447 (6)
C90.2232 (3)0.5855 (3)0.9194 (2)0.0553 (7)
H90.30900.65890.96360.066*
C100.1083 (4)0.5958 (4)0.9281 (3)0.0682 (9)
H100.11690.67780.97790.082*
C11−0.0186 (3)0.4850 (4)0.8634 (3)0.0709 (9)
H11−0.09390.49380.87180.085*
C12−0.0379 (3)0.3611 (4)0.7864 (3)0.0623 (8)
H12−0.12390.28750.74300.075*
C130.0758 (3)0.3521 (3)0.7773 (2)0.0487 (6)
C140.6181 (3)−0.0311 (4)0.9250 (3)0.0682 (9)
H140.6078−0.05870.98410.082*
C150.6745 (3)−0.0724 (3)0.8495 (3)0.0627 (8)
H150.7100−0.13170.84690.075*
C160.6695 (3)−0.0079 (3)0.7746 (3)0.0524 (7)
H160.7009−0.01680.71270.063*
C170.6104 (3)0.0691 (3)0.8102 (2)0.0441 (6)
C180.5727 (2)0.1531 (3)0.7664 (2)0.0397 (5)
C190.5330 (3)0.3554 (3)0.5333 (2)0.0459 (6)
C200.5793 (2)0.2607 (3)0.5509 (2)0.0422 (6)
C210.6341 (2)0.2229 (3)0.4619 (2)0.0436 (6)
C220.6909 (3)0.1385 (3)0.4341 (2)0.0526 (7)
H220.70130.09160.47790.063*
C230.7322 (3)0.1256 (3)0.3391 (3)0.0636 (8)
H230.76960.06830.31820.076*
C240.7183 (3)0.1973 (3)0.2746 (3)0.0660 (9)
H240.74750.18760.21160.079*
C250.6621 (3)0.2828 (3)0.3020 (2)0.0600 (8)
H250.65310.33070.25880.072*
C260.6202 (3)0.2940 (3)0.3953 (2)0.0479 (6)
C270.1768 (6)0.2935 (6)0.3242 (4)0.121 (2)
H270.19000.31520.26270.145*
C280.1071 (5)0.3253 (5)0.4865 (4)0.1004 (13)
H28A0.18830.33170.52490.151*
H28B0.03290.23290.46430.151*
H28C0.08920.39190.53560.151*
C290.0825 (5)0.4465 (6)0.3654 (6)0.167 (3)
H29A0.10700.46000.30130.251*
H29B0.12690.53480.42860.251*
H29C−0.01370.40670.34980.251*
Atomic displacement parameters (Å2) top
U11U22U33U12U13U23
Mn10.0398 (2)0.0382 (2)0.0430 (2)0.02413 (17)0.01540 (16)0.01709 (17)
O10.0411 (11)0.0745 (15)0.0855 (16)0.0201 (11)0.0176 (11)0.0284 (13)
O20.0464 (11)0.0552 (12)0.0704 (13)0.0277 (10)0.0209 (10)0.0174 (10)
O30.0535 (11)0.0492 (11)0.0541 (11)0.0263 (10)0.0129 (9)0.0159 (9)
O40.0677 (13)0.0746 (14)0.0528 (11)0.0411 (11)0.0250 (10)0.0384 (11)
O50.0597 (12)0.0580 (12)0.0510 (11)0.0368 (10)0.0260 (9)0.0261 (9)
O60.0698 (13)0.0656 (13)0.0609 (12)0.0460 (11)0.0292 (10)0.0358 (10)
O70.142 (3)0.114 (3)0.128 (3)0.064 (3)0.058 (2)0.046 (2)
O1W0.0866 (18)0.0680 (17)0.0727 (16)0.0291 (15)0.0095 (15)0.0053 (14)
N10.0402 (12)0.0448 (12)0.0470 (12)0.0196 (10)0.0124 (10)0.0178 (10)
N20.0416 (12)0.0447 (12)0.0466 (12)0.0214 (10)0.0145 (10)0.0229 (10)
N30.0407 (13)0.0551 (15)0.0554 (14)0.0178 (11)0.0092 (11)0.0235 (12)
N40.0418 (11)0.0421 (11)0.0465 (12)0.0237 (10)0.0160 (10)0.0231 (10)
N50.0397 (11)0.0404 (11)0.0451 (12)0.0202 (9)0.0126 (9)0.0210 (10)
N60.0615 (15)0.0576 (15)0.0560 (14)0.0335 (13)0.0234 (12)0.0355 (12)
N70.079 (2)0.084 (2)0.085 (2)0.0233 (18)0.0087 (18)0.049 (2)
C10.0438 (18)0.078 (3)0.087 (3)0.0036 (18)−0.0034 (18)0.030 (2)
C20.069 (2)0.066 (2)0.0570 (19)0.0151 (19)0.0051 (17)0.0179 (17)
C30.0555 (17)0.0529 (17)0.0463 (15)0.0199 (14)0.0113 (13)0.0217 (14)
C40.0381 (14)0.0519 (16)0.0537 (16)0.0186 (13)0.0130 (12)0.0293 (14)
C50.0421 (14)0.0472 (15)0.0461 (14)0.0236 (12)0.0169 (12)0.0247 (12)
C60.0444 (15)0.0486 (15)0.0451 (14)0.0218 (13)0.0115 (12)0.0232 (12)
C70.0395 (14)0.0490 (15)0.0429 (14)0.0227 (12)0.0142 (11)0.0230 (12)
C80.0444 (14)0.0575 (16)0.0436 (14)0.0278 (13)0.0202 (12)0.0277 (13)
C90.0586 (18)0.0660 (19)0.0513 (16)0.0362 (16)0.0243 (14)0.0247 (15)
C100.078 (2)0.091 (3)0.065 (2)0.057 (2)0.0374 (18)0.0368 (19)
C110.066 (2)0.111 (3)0.074 (2)0.060 (2)0.0384 (19)0.053 (2)
C120.0468 (17)0.091 (2)0.068 (2)0.0381 (17)0.0243 (15)0.0469 (19)
C130.0437 (15)0.0616 (17)0.0506 (15)0.0265 (14)0.0180 (12)0.0323 (14)
C140.072 (2)0.089 (2)0.072 (2)0.046 (2)0.0239 (18)0.057 (2)
C150.0578 (18)0.071 (2)0.083 (2)0.0394 (17)0.0218 (17)0.0483 (18)
C160.0476 (15)0.0591 (17)0.0627 (17)0.0307 (14)0.0193 (13)0.0321 (15)
C170.0415 (14)0.0490 (15)0.0423 (14)0.0198 (12)0.0122 (11)0.0231 (12)
C180.0350 (13)0.0412 (13)0.0425 (13)0.0183 (11)0.0104 (11)0.0173 (11)
C190.0464 (15)0.0496 (15)0.0485 (15)0.0245 (13)0.0168 (12)0.0261 (13)
C200.0407 (14)0.0415 (14)0.0453 (14)0.0186 (12)0.0126 (11)0.0215 (12)
C210.0404 (14)0.0412 (14)0.0419 (14)0.0147 (12)0.0107 (11)0.0164 (11)
C220.0488 (16)0.0487 (16)0.0565 (17)0.0224 (13)0.0163 (13)0.0184 (13)
C230.0587 (19)0.0578 (19)0.0639 (19)0.0257 (16)0.0237 (16)0.0138 (16)
C240.063 (2)0.067 (2)0.0546 (18)0.0222 (17)0.0278 (16)0.0187 (16)
C250.0611 (19)0.0615 (19)0.0511 (17)0.0201 (16)0.0219 (15)0.0280 (15)
C260.0439 (15)0.0442 (15)0.0494 (15)0.0154 (12)0.0137 (12)0.0205 (12)
C270.110 (4)0.114 (4)0.074 (3)0.001 (3)0.023 (3)0.038 (3)
C280.109 (3)0.104 (3)0.104 (3)0.054 (3)0.036 (3)0.057 (3)
C290.112 (4)0.115 (4)0.229 (7)0.015 (3)−0.044 (4)0.113 (5)
Geometric parameters (Å, °) top
Mn1—N22.016 (2)C6—C71.470 (4)
Mn1—N52.023 (2)C7—C81.437 (3)
Mn1—O52.0667 (18)C8—C91.381 (4)
Mn1—O22.076 (2)C8—C131.404 (4)
Mn1—O32.2676 (19)C9—C101.391 (4)
Mn1—O62.2998 (19)C9—H90.93
O1—C11.364 (4)C10—C111.381 (5)
O1—C41.367 (3)C10—H100.93
O2—C51.261 (3)C11—C121.385 (5)
O3—C61.243 (3)C11—H110.93
O4—C141.359 (4)C12—C131.371 (4)
O4—C171.372 (3)C12—H120.93
O5—C181.255 (3)C14—C151.336 (5)
O6—C191.249 (3)C14—H140.93
O7—C271.231 (7)C15—C161.413 (4)
O1W—H1W10.86 (1)C15—H150.93
O1W—H1W20.86 (1)C16—C171.350 (4)
N1—N21.341 (3)C16—H160.93
N1—C51.353 (3)C17—C181.446 (3)
N2—C71.301 (3)C19—C201.466 (4)
N3—C61.346 (3)C20—C211.443 (4)
N3—C131.411 (4)C21—C221.379 (4)
N3—H30.86 (1)C21—C261.407 (4)
N4—N51.343 (3)C22—C231.385 (4)
N4—C181.361 (3)C22—H220.93
N5—C201.301 (3)C23—C241.391 (5)
N6—C191.348 (3)C23—H230.93
N6—C261.415 (4)C24—C251.383 (4)
N6—H60.87 (1)C24—H240.93
N7—C271.330 (7)C25—C261.369 (4)
N7—C281.419 (5)C25—H250.93
N7—C291.438 (5)C27—H270.93
C1—C21.325 (5)C28—H28A0.96
C1—H10.93C28—H28B0.96
C2—C31.408 (4)C28—H28C0.96
C2—H20.93C29—H29A0.96
C3—C41.342 (4)C29—H29B0.96
C3—H3A0.93C29—H29C0.96
C4—C51.448 (4)
N2—Mn1—N5171.59 (8)C11—C10—C9120.4 (3)
N2—Mn1—O5111.99 (8)C11—C10—H10119.8
N5—Mn1—O575.50 (7)C9—C10—H10119.8
N2—Mn1—O275.65 (8)C10—C11—C12122.4 (3)
N5—Mn1—O2100.19 (8)C10—C11—H11118.8
O5—Mn1—O296.41 (8)C12—C11—H11118.8
N2—Mn1—O378.39 (8)C13—C12—C11116.9 (3)
N5—Mn1—O3105.49 (8)C13—C12—H12121.6
O5—Mn1—O393.69 (7)C11—C12—H12121.6
O2—Mn1—O3154.03 (7)C12—C13—C8121.7 (3)
N2—Mn1—O695.06 (8)C12—C13—N3128.3 (3)
N5—Mn1—O677.73 (7)C8—C13—N3110.0 (2)
O5—Mn1—O6152.77 (7)C15—C14—O4111.3 (3)
O2—Mn1—O693.09 (8)C15—C14—H14124.3
O3—Mn1—O688.68 (7)O4—C14—H14124.3
C1—O1—C4104.9 (3)C14—C15—C16106.3 (3)
C5—O2—Mn1110.94 (16)C14—C15—H15126.9
C6—O3—Mn1105.12 (16)C16—C15—H15126.9
C14—O4—C17105.7 (2)C17—C16—C15106.8 (3)
C18—O5—Mn1111.41 (15)C17—C16—H16126.6
C19—O6—Mn1105.01 (15)C15—C16—H16126.6
H1W1—O1W—H1W2103 (4)C16—C17—O4109.9 (2)
N2—N1—C5107.4 (2)C16—C17—C18132.7 (2)
C7—N2—N1122.6 (2)O4—C17—C18117.3 (2)
C7—N2—Mn1117.46 (18)O5—C18—N4125.9 (2)
N1—N2—Mn1119.86 (16)O5—C18—C17120.5 (2)
C6—N3—C13110.2 (2)N4—C18—C17113.6 (2)
C6—N3—H3124 (2)O6—C19—N6127.8 (2)
C13—N3—H3125 (2)O6—C19—C20125.0 (2)
N5—N4—C18107.04 (19)N6—C19—C20107.2 (2)
C20—N5—N4122.4 (2)N5—C20—C21138.0 (2)
C20—N5—Mn1117.93 (17)N5—C20—C19114.3 (2)
N4—N5—Mn1119.52 (15)C21—C20—C19107.7 (2)
C19—N6—C26110.0 (2)C22—C21—C26120.3 (2)
C19—N6—H6122 (2)C22—C21—C20134.3 (2)
C26—N6—H6128 (2)C26—C21—C20105.4 (2)
C27—N7—C28118.5 (4)C21—C22—C23118.1 (3)
C27—N7—C29121.1 (5)C21—C22—H22121.0
C28—N7—C29120.5 (5)C23—C22—H22121.0
C2—C1—O1111.8 (3)C22—C23—C24120.9 (3)
C2—C1—H1124.1C22—C23—H23119.6
O1—C1—H1124.1C24—C23—H23119.6
C1—C2—C3106.0 (3)C25—C24—C23121.5 (3)
C1—C2—H2127.0C25—C24—H24119.2
C3—C2—H2127.0C23—C24—H24119.2
C4—C3—C2106.9 (3)C26—C25—C24117.4 (3)
C4—C3—H3A126.5C26—C25—H25121.3
C2—C3—H3A126.5C24—C25—H25121.3
C3—C4—O1110.3 (2)C25—C26—C21121.9 (3)
C3—C4—C5133.2 (3)C25—C26—N6128.5 (3)
O1—C4—C5116.5 (2)C21—C26—N6109.6 (2)
O2—C5—N1126.0 (2)O7—C27—N7123.8 (5)
O2—C5—C4120.4 (2)O7—C27—H27118.1
N1—C5—C4113.6 (2)N7—C27—H27118.1
O3—C6—N3128.2 (3)N7—C28—H28A109.5
O3—C6—C7125.2 (2)N7—C28—H28B109.5
N3—C6—C7106.6 (2)H28A—C28—H28B109.5
N2—C7—C8138.1 (3)N7—C28—H28C109.5
N2—C7—C6113.7 (2)H28A—C28—H28C109.5
C8—C7—C6108.2 (2)H28B—C28—H28C109.5
C9—C8—C13120.6 (3)N7—C29—H29A109.5
C9—C8—C7134.3 (3)N7—C29—H29B109.5
C13—C8—C7105.0 (2)H29A—C29—H29B109.5
C8—C9—C10117.8 (3)N7—C29—H29C109.5
C8—C9—H9121.1H29A—C29—H29C109.5
C10—C9—H9121.1H29B—C29—H29C109.5
N2—Mn1—O2—C52.65 (17)O3—C6—C7—C8179.1 (2)
N5—Mn1—O2—C5175.17 (17)N3—C6—C7—C80.2 (3)
O5—Mn1—O2—C5−108.46 (18)N2—C7—C8—C90.4 (5)
O3—Mn1—O2—C53.8 (3)C6—C7—C8—C9−178.8 (3)
O6—Mn1—O2—C597.10 (18)N2—C7—C8—C13179.3 (3)
N2—Mn1—O3—C63.01 (16)C6—C7—C8—C130.0 (3)
N5—Mn1—O3—C6−169.32 (16)C13—C8—C9—C10−0.5 (4)
O5—Mn1—O3—C6114.71 (16)C7—C8—C9—C10178.2 (3)
O2—Mn1—O3—C61.9 (3)C8—C9—C10—C111.2 (5)
O6—Mn1—O3—C6−92.44 (17)C9—C10—C11—C12−1.2 (5)
N2—Mn1—O5—C18−169.67 (16)C10—C11—C12—C130.4 (5)
N5—Mn1—O5—C186.30 (17)C11—C12—C13—C80.2 (4)
O2—Mn1—O5—C18−92.60 (17)C11—C12—C13—N3−178.6 (3)
O3—Mn1—O5—C18111.36 (17)C9—C8—C13—C12−0.2 (4)
O6—Mn1—O5—C1817.1 (3)C7—C8—C13—C12−179.2 (2)
N2—Mn1—O6—C19172.82 (18)C9—C8—C13—N3178.8 (2)
N5—Mn1—O6—C19−2.79 (17)C7—C8—C13—N3−0.2 (3)
O5—Mn1—O6—C19−13.5 (3)C6—N3—C13—C12179.3 (3)
O2—Mn1—O6—C1996.97 (18)C6—N3—C13—C80.3 (3)
O3—Mn1—O6—C19−108.96 (18)C17—O4—C14—C150.3 (4)
C5—N1—N2—C7−177.6 (2)O4—C14—C15—C16−0.3 (4)
C5—N1—N2—Mn1−0.9 (3)C14—C15—C16—C170.2 (4)
O5—Mn1—N2—C7−92.86 (19)C15—C16—C17—O40.0 (3)
O2—Mn1—N2—C7175.9 (2)C15—C16—C17—C18−177.2 (3)
O3—Mn1—N2—C7−3.56 (18)C14—O4—C17—C16−0.1 (3)
O6—Mn1—N2—C784.04 (19)C14—O4—C17—C18177.5 (2)
O5—Mn1—N2—N190.30 (18)Mn1—O5—C18—N4−5.7 (3)
O2—Mn1—N2—N1−0.89 (17)Mn1—O5—C18—C17174.99 (18)
O3—Mn1—N2—N1179.61 (18)N5—N4—C18—O50.0 (3)
O6—Mn1—N2—N1−92.79 (18)N5—N4—C18—C17179.4 (2)
C18—N4—N5—C20−179.0 (2)C16—C17—C18—O5177.8 (3)
C18—N4—N5—Mn16.2 (2)O4—C17—C18—O50.9 (4)
O5—Mn1—N5—C20177.8 (2)C16—C17—C18—N4−1.6 (4)
O2—Mn1—N5—C20−88.14 (19)O4—C17—C18—N4−178.5 (2)
O3—Mn1—N5—C2087.97 (19)Mn1—O6—C19—N6−175.7 (2)
O6—Mn1—N5—C202.83 (18)Mn1—O6—C19—C202.7 (3)
O5—Mn1—N5—N4−7.14 (16)C26—N6—C19—O6178.8 (3)
O2—Mn1—N5—N486.91 (18)C26—N6—C19—C200.2 (3)
O3—Mn1—N5—N4−96.98 (17)N4—N5—C20—C210.2 (5)
O6—Mn1—N5—N4177.88 (18)Mn1—N5—C20—C21175.1 (3)
C4—O1—C1—C2−0.1 (4)N4—N5—C20—C19−177.3 (2)
O1—C1—C2—C30.0 (4)Mn1—N5—C20—C19−2.4 (3)
C1—C2—C3—C40.0 (4)O6—C19—C20—N5−0.6 (4)
C2—C3—C4—O1−0.1 (3)N6—C19—C20—N5178.1 (2)
C2—C3—C4—C5179.2 (3)O6—C19—C20—C21−178.9 (3)
C1—O1—C4—C30.1 (3)N6—C19—C20—C21−0.2 (3)
C1—O1—C4—C5−179.3 (3)N5—C20—C21—C222.7 (6)
Mn1—O2—C5—N1−4.7 (3)C19—C20—C21—C22−179.7 (3)
Mn1—O2—C5—C4176.15 (18)N5—C20—C21—C26−177.5 (3)
N2—N1—C5—O23.9 (3)C19—C20—C21—C260.1 (3)
N2—N1—C5—C4−176.9 (2)C26—C21—C22—C23−0.5 (4)
C3—C4—C5—O2−172.0 (3)C20—C21—C22—C23179.3 (3)
O1—C4—C5—O27.2 (4)C21—C22—C23—C240.9 (4)
C3—C4—C5—N18.7 (4)C22—C23—C24—C25−0.6 (5)
O1—C4—C5—N1−172.1 (2)C23—C24—C25—C26−0.1 (5)
Mn1—O3—C6—N3176.3 (2)C24—C25—C26—C210.5 (4)
Mn1—O3—C6—C7−2.4 (3)C24—C25—C26—N6−179.5 (3)
C13—N3—C6—O3−179.2 (3)C22—C21—C26—C25−0.2 (4)
C13—N3—C6—C7−0.3 (3)C20—C21—C26—C25180.0 (2)
N1—N2—C7—C81.0 (5)C22—C21—C26—N6179.8 (2)
Mn1—N2—C7—C8−175.8 (3)C20—C21—C26—N60.0 (3)
N1—N2—C7—C6−179.9 (2)C19—N6—C26—C25179.9 (3)
Mn1—N2—C7—C63.4 (3)C19—N6—C26—C21−0.1 (3)
O3—C6—C7—N2−0.3 (4)C28—N7—C27—O72.2 (7)
N3—C6—C7—N2−179.3 (2)C29—N7—C27—O7−178.0 (5)
Hydrogen-bond geometry (Å, °) top
D—H···AD—HH···AD···AD—H···A
O1W—H1W1···O30.86 (1)2.06 (2)2.896 (3)165 (4)
O1W—H1W2···O70.86 (1)1.93 (2)2.762 (5)161 (4)
N3—H3···O1Wi0.86 (1)1.96 (1)2.811 (4)176 (3)
N6—H6···O6ii0.87 (1)2.05 (1)2.899 (3)167 (3)
Symmetry codes: (i) −x, −y, −z+1; (ii) −x+1, −y+1, −z+1.
Table 1
Selected geometric parameters (Å) top
Mn1—N22.016 (2)Mn1—O22.076 (2)
Mn1—N52.023 (2)Mn1—O32.2676 (19)
Mn1—O52.0667 (18)Mn1—O62.2998 (19)
Table 2
Hydrogen-bond geometry (Å, °) top
D—H···AD—HH···AD···AD—H···A
O1W—H1W1···O30.86 (1)2.06 (2)2.896 (3)165 (4)
O1W—H1W2···O70.86 (1)1.93 (2)2.762 (5)161 (4)
N3—H3···O1Wi0.86 (1)1.96 (1)2.811 (4)176 (3)
N6—H6···O6ii0.87 (1)2.05 (1)2.899 (3)167 (3)
Symmetry codes: (i) −x, −y, −z+1; (ii) −x+1, −y+1, −z+1.
Acknowledgements top

The authors thank the University of Malaya for supporting this study.

references
References top

Barbour, L. J. (2001). J. Supramol. Chem. 1, 189–191.

Bruker (2001). SAINT and SAINT. Bruker AXS Inc., Madison, Wisconsin, USA.

Rodríguez-Argüelles, M. C., Cao, R., García-Deibe, A. M., Pelizzi, C., Sanmartín-Matalobos, J. & Zani, F. (2009). Polyhedron, 28, 2187–2195.

Sheldrick, G. M. (1996). SADABS. University of Göttingen, Germany.

Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122.

Westrip, S. P. (2010). J. Appl. Cryst. 43, 920–925.
